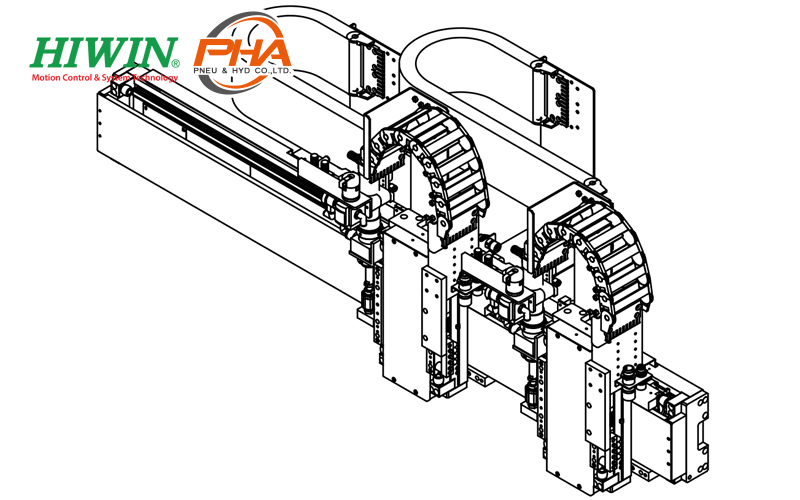

Hiwin Dual Axis Customization - DLK
ไฮวิน Dual Axis Customization - DLK
Hiwin Dual Axis Customization - DLK : Solar automation equipment, high-speed pick and place feeding equipment, electronic components assembly equipment.
รายละเอียด (Detail) Hiwin Dual Axis Customization - DLK
- Multi-forcer simulataneously motion.
- Suitable for laterlly applications.
- For high-speed reciprocating motion.
- Z-axis using a linear motor with a pneumatic counterweight design.
- With high speed and high accuracy.
- Can be equipped with ironless or iron core motor.

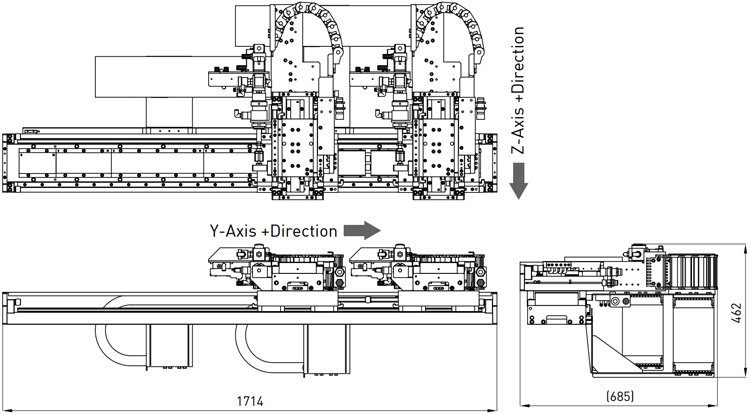

ขนาด (Dimensions) Hiwin Single Axis Customization - DLK
รายละเอียดทางเทคนิค (Specifications) Hiwin Single Axis Customization - DLK
| Stage type | LMX4C-S13S37-2-32-750 |
|---|---|
| Motor Type | Ironless motor |
| Stroke(mm) | X-axis : 32, Y-axis : 750 |
| Peak Force(N) / Continuous Force(N) | X-axis : 540/203, Y-axis : 1425/535 |
| Repeatability(µm) | ±2 (with HIWIN solution) |
| Accuracy(µm) | ±5 (after error mapping) |
| Max. Acceleration(m/s2) | X-axis : 10, Y-axis : 10(with payload) |
| Max. Velocity(m/s) | X-axis : 0.5, Y-axis : 1.3(with payload) |
| Payload(kg) | 10 |
| Stage orientation | Laterally |
*Note : All specifications can be designed according to customer demand.
