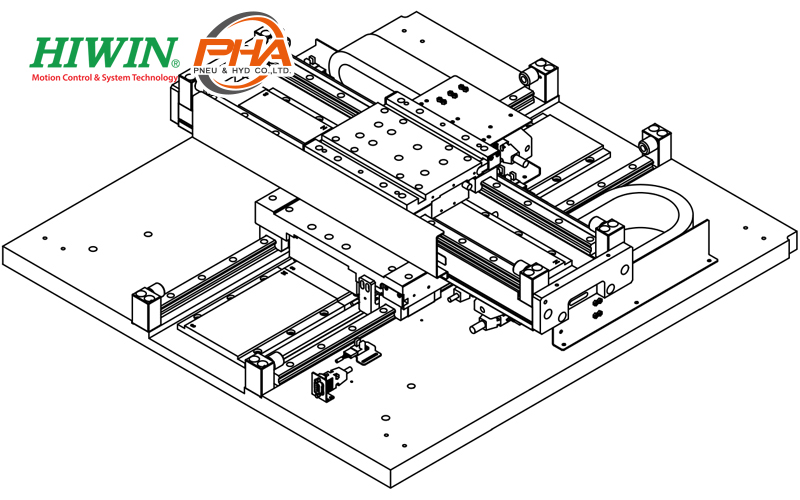

Hiwin Dual Axis Customization - DLB
ไฮวิน Dual Axis Customization - DLB
Hiwin Dual Axis Customization - DLB : Automation equipment, AOI inspection applications, Wafer cutting applications.action, Wafer cutting applications.
รายละเอียด (Detail) Hiwin Dual Axis Customization - DLB
- Integrationof high-precision torque motor.
- XY positioning with high precision angular compresation.
- Use dust-proof desgin. High stiffness extruded aluminum structure.
- Can be equipped with ironless ironcore motor.
ขนาด (Dimensions) Hiwin Single Axis Customization - DLB
รายละเอียดทางเทคนิค (Specifications) Hiwin Single Axis Customization - DLB
| Stage type | LMX2C-S23-S47L-362-390 |
|---|---|
| Motor Type | Ironless(/Ironcore) motor |
| Stroke(mm) | X-axis : 362, Y-axis : 390 |
| Peak Force(N) / Continuous Force(N) | X-axis : 639/240, Y-axis : 1953/733 |
| Repeatability(µm) | ±2 (with HIWIN solution) |
| Accuracy(µm) | ±4 (after error mapping) |
| Max. Acceleration(m/s2) | 10(with payload) |
| Max. Velocity(m/s) | 1(with payload) |
| Payload(kg) | 10 |
| Stage orientation | Upside down |
