Hiwin Dual Axis Customization - DLA
ไฮวิน Dual Axis Customization - DLA
Hiwin Dual Axis Customization - DLA : 3D measuring equioment, glass substrate chamfering devices, glass substrate/PCB testing equipment.

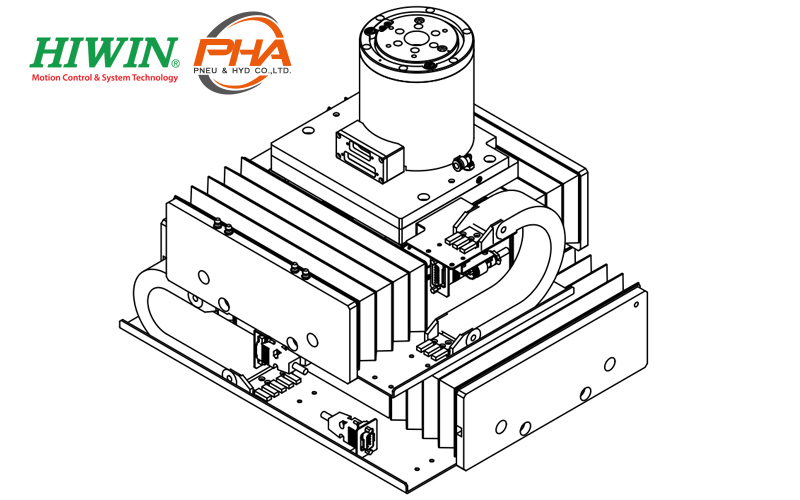

รายละเอียด (Detail) Hiwin Dual Axis Customization - DLA
- Integrationof high-precision torque motor.
- XY positioning with high precision angular compresation.
- Use dust-proof desgin. High stiffness extruded aluminum structure.
- Can be equipped with ironless ironcore motor.

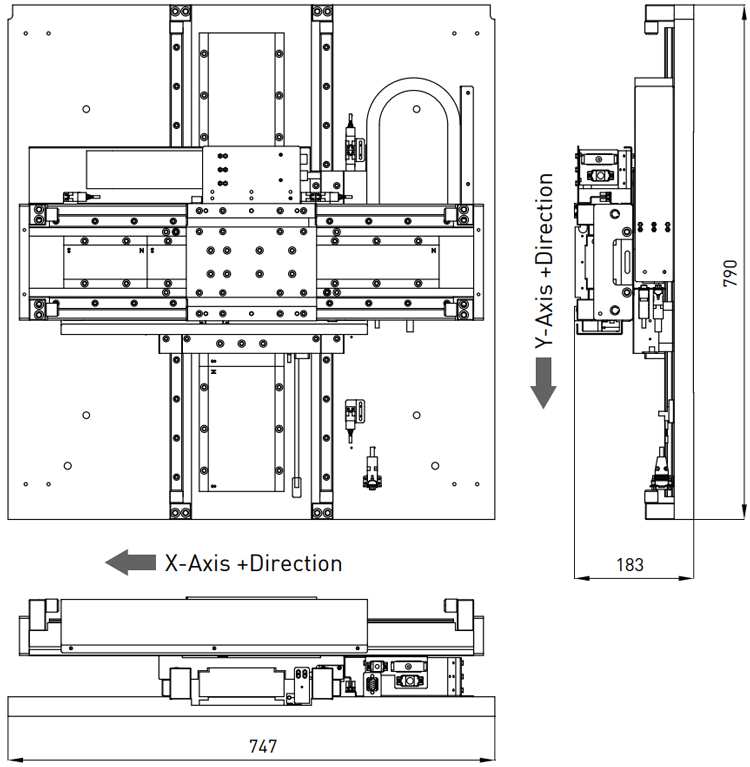

ขนาด (Dimensions) Hiwin Single Axis Customization - DLA
รายละเอียดทางเทคนิค (Specifications) Hiwin Single Axis Customization - DLA
| Stage type | LMX2C-CB4CB7-50-50+TMS03 |
|---|---|
| Motor Type | Ironless(/Ironcore) motor |
| Stroke(mm) | 50 |
| Peak Force(N) / Continuous Force(N) | X-axis : 512/128, Y-axis : 292/73 |
| Repeatability(µm) | ±1 (with HIWIN solution) |
| Accuracy(µm) | ±5 (after error mapping) |
| Max. Acceleration(m/s2) | X-axis : 5, Y-axis : 5(with payload) |
| Max. Velocity(m/s) | X-axis : 0.4, Y-axis : 0.2(with payload) |
| Payload(kg) | 5 |
| Stage orientation | Horizontal |
| Torque Motor Type | TMS03 |
| Peak Torque(Nm) / Continuous Torque(Nm) | 9.3/3.1 |
| Max. Velocity(rpm) | 500(220V) |
| Repeatability(arc-sec) | ±3 |
| Accuracy(arc-sec) | ±45 |
| Inertia of rotation parts(kgm2) | 0.003 |
Note : All specifications can be designed according to customer demand.
