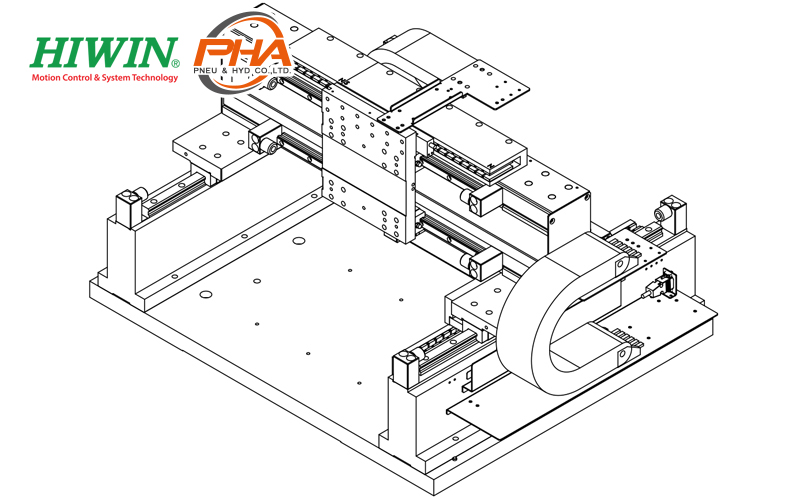

Hiwin Gantry Structure Standard - LMCB6-CC8

ไฮวิน Gantry Structure Standard - LMCB6-CC8

Hiwin Gantry Structure Standard : Linear motor LMG2A-C stages are equipped with coreless motors and well suited for applications with a high degree of synchronous operation requirements. They are distinguished by their low profile design. The travel is measured via optical encoder incrementally.
LMG2A-series standardized gantry system is a unilateral drive system.
LMG2A-C applies to ironless linear motor, and LMG2A-S applies to iron core linear motor.

PDF : Gantry Structure Standard - LMCB6-CC8

---

รายละเอียด (Detail) Hiwin Gantry Structure Standard - LMCB6-CC8

• High acceleration
• No cogging
• Low inerta
• Easy to assemble
• High stiffness aluminum gantry structure
• Equipped with ironless linear motor
• Optical detection application

---
