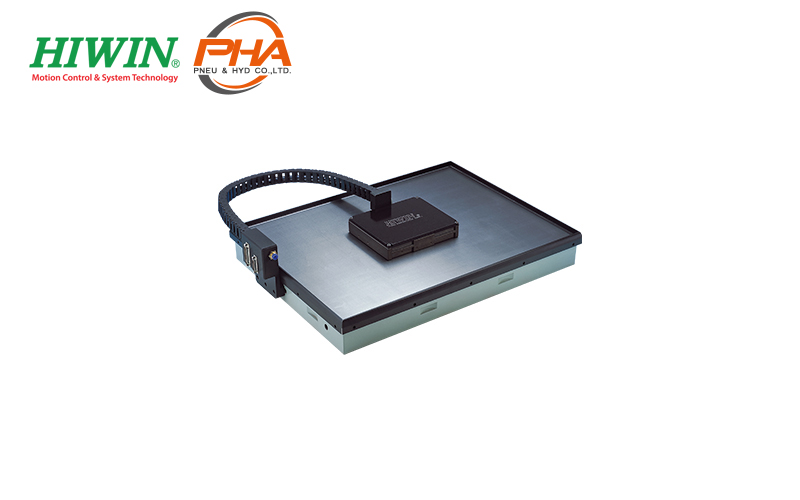

Hiwin Linear Planar Servo Motor - LMSP : The planer motor LMSP has integrated distance measurement sensors and works with position control (closed loop).
XY table : Closed loop thanks to integrated distance measurement Air bearing free of wear NO externally measurable magnetic fields The position accuracy is stable because of low heat generation. Can be mounted upside down

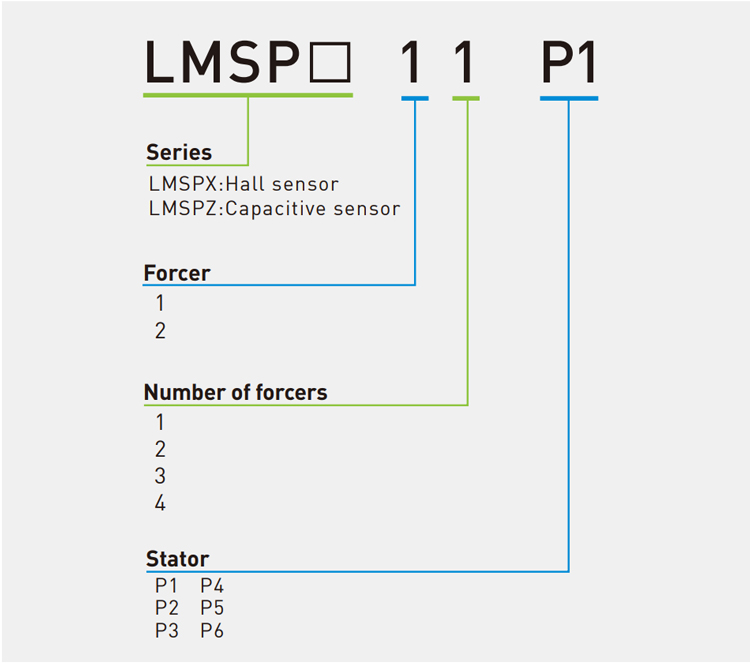

ตัวอย่างการเลือกรุ่น (Code) Hiwin Linear Planar Servo Motor - LMSP
ขนาด (Dimensions) Hiwin Linear Planar Servo Motor - LMSP
| Dimensions | Unit | P1 | P2 | P3 | P4 | P5 | P6 | |
|---|---|---|---|---|---|---|---|---|
| Stator dimensions | Ls x Ws | mm | 350 x 330 | 450 x 450 | 600 x 450 | 600 x 600 | 1000 x 600 | 850 x 850 |
| Max. Stroke (One forcer) |
LMSPX1/LMSPZ1 | mm | 190 x 140 | 290 x 260 | 440 x 260 | 440 x 410 | 840 x 410 | 690 x 660 |
| LMSPX2 | mm | - | 270 x 125 | 420 x 125 | 420 x 275 | 820 x275 | 670 x 525 | |
| Stator height | Hs | mm | 50 | 50 | 70 | 70 | 100 | 120 |
| Mass of Stator | - | kg | 27 | 26 | 52 | 66 | 120 | 250 |
| Fixing Distance | As x Bs | mm | 165 x 310 | 213 x 426 | 288 x 426 | 288 x 576 | (318-324-318) x 280 | 400 x 400 |
| No. of mounting holes | - | - | 6 | 6 | 6 | 6 | 10 | 9 |
รายละเอียดทางเทคนิค (Specifications) Hiwin Linear Planar Servo Motor - LMSP
| LMSP | Symbol | Unit | LMSPX1 | LMSPZ1 | LMSPX2 |
|---|---|---|---|---|---|
| Max.forcer | Tm | N | 75 | 75 | 140 |
| Resolution | Rs | mm | 0.001 | 0.001 | 0.001 |
| Repeatability (unidirectional) | Rp | mm | 0.002 | 0.001 | 0.002 |
| Accuracy (every 300mm) | Ac | mm | ±0.015 | ±0.015 | ±0.015 |
| Max. speed (no load) | V | m/s | 0.9 | 0.9 | 0.8 |
| Max. load | - | kg | 12.2 | 12.2 | 24.3 |
| Length | Lf | mm | 154 | 154 | 175 |
| Width | Wf | mm | 184 | 184 | 320 |
| Height | Hf | mm | 28 | 28 | 30 |
| Air pressure | Pa | kg/cm2 | 3-4 | 3-4 | 3-4 |
| Air flow rate | Fa | l/min | 6.4 | 6.4 | 11 |
| Mass | Mf | kg | 1.8 | 1.8 | 3.7 |
| Fixing distance | Af x Bf | mm x mm | 146 x 87.5 | 146 x 87.5 | 72 x 140 |

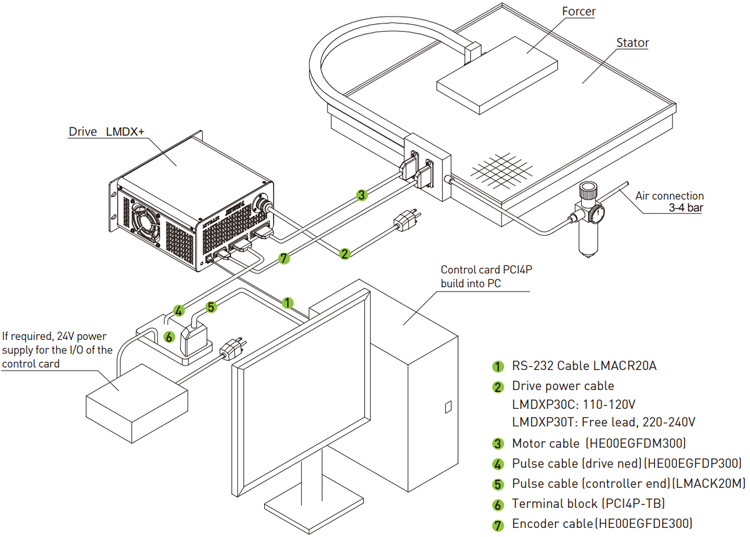

วิธีการเชื่อมต่อ (Configuration) Hiwin Linear Planar Servo Motor - LMSP
