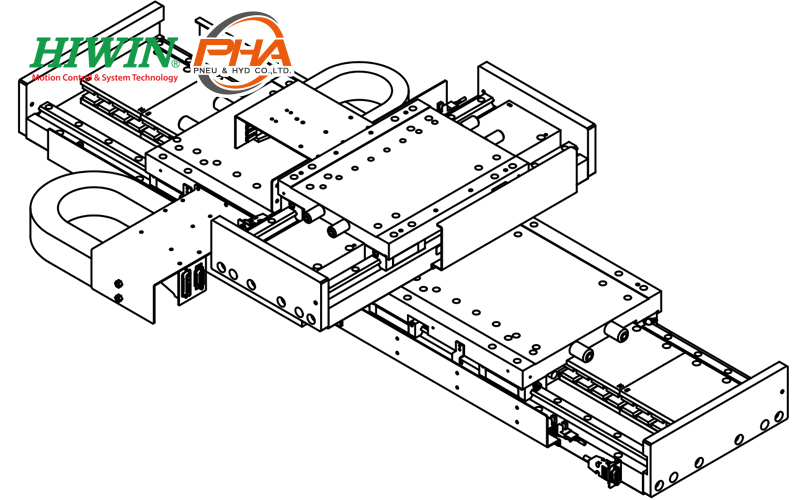

Hiwin Dual Axis Customization - DLC
ไฮวิน Dual Axis Customization - DLC
Hiwin Dual Axis Customization - DLC : Biomedical testing quioment, electronic components plug-in equipment.
รายละเอียด (Detail) Hiwin Dual Axis Customization - DLC
- Suitable for High-speed scanning and rapid positioning motion.
- Simple structure and wide range of applications.

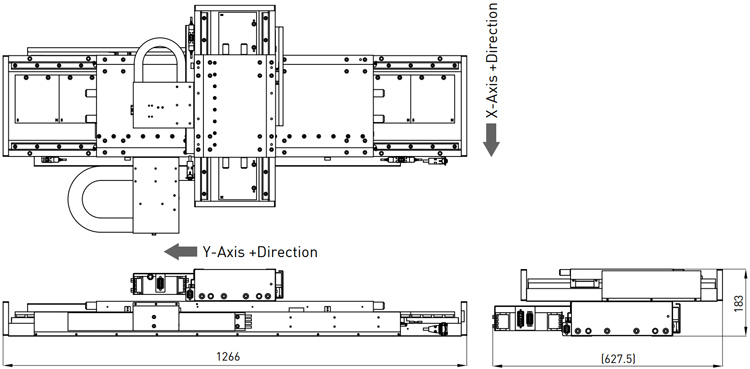

ขนาด (Dimensions) Hiwin Single Axis Customization - DLC
รายละเอียดทางเทคนิค (Specifications) Hiwin Single Axis Customization - DLC
| Stage type | LMX2C-CC8CFC-150-400 |
|---|---|
| Motor Type | Ironless(/Ironcore) motor |
| Stroke(mm) | X-axis : 150, Y-axis : 400 |
| Peak Force(N) / Continuous Force(N) | X-axis : 780/195, Y-axis : 2736/684 |
| Repeatability(µm) | ±2 (with HIWIN solution) |
| Accuracy(µm) | ±5 (after error mapping) |
| Max. Acceleration(m/s) | X-axis : 10, Y-axis : 10(with payload) |
| Max. Velocity(m/s) | X-axis : 1, Y-axis : 1(with payload) |
| Payload(kg) | 10 |
| Stage orientation | Horizontal |
*Note : All specifications can be designed according to customer demand.
