Hiwin Dual Axis Customization - DLE
ไฮวิน Dual Axis Customization - DLE
Hiwin Dual Axis Customization - DLE : Automation equipment, AOI testing equipment, laser cutting applications, appearance grinding trimming equipment.
รายละเอียด (Detail) Hiwin Dual Axis Customization - DLE
- Integration of high-precision torque motor.
- X-Y positioning with high precision angular compensation.
- High stiffness estruded aluminum structure
- Best Guideway supporting structure design.

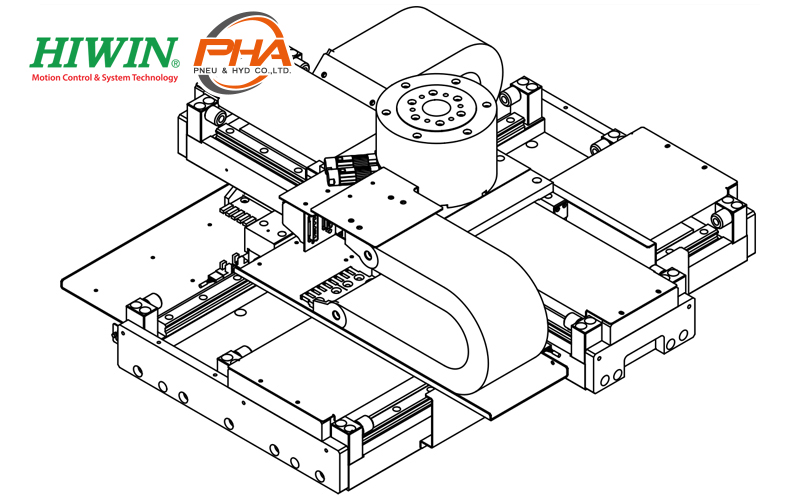

ขนาด (Dimensions) Hiwin Single Axis Customization - DLE
รายละเอียดทางเทคนิค (Specifications) Hiwin Single Axis Customization - DLE
| Stage type | LMX2C-S27S47-300-300+TMS12 |
|---|---|
| Motor Type | Ironcore(/Ironless) motor |
| Stroke(mm) | X-axis : 300, Y-axis : 300 |
| Peak Force(N) / Continuous Force(N) | X-axis : 1953/733, Y-axis : 1017/382 |
| Repeatability(µm) | ±0.5 (with HIWIN solution) |
| Accuracy(µm) | ±1 (after error mapping) |
| Max. Acceleration(m/s) | 5(with payload) |
| Max. Velocity(m/s) | 0.8(with payload) |
| Orthogonality(arc-sec) | ±5 |
| Payload(kg) | 40 |
| Stage orientation | Horizontal |
| Torque Motor Type | TMS12 |
| Peak Torque(Nm) / Cotinuous Torque(Nm) | 15/5 |
| Max. Velocity(rpm) | 700(220V) |
| Repeatability(arc-sec) | ±3 |
| Accuracy(are-sec) | ±45 |
| Inertia of rotation parts(kgm2) | 0.006 |
*Note : All specifications can be designed according to customer demand.
