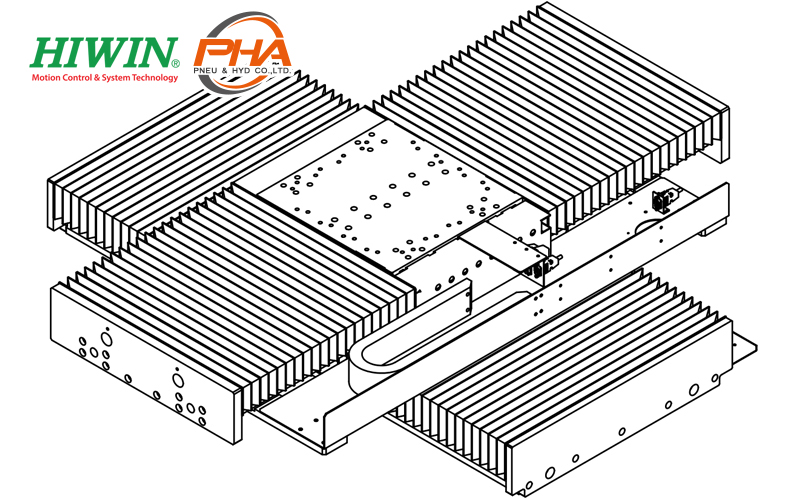

Hiwin Dual Axis Customization - DLD
ไฮวิน Dual Axis Customization - DLD
Hiwin Dual Axis Customization - DLD : PCB/steel plate laser cutting applicatopms, automation equipment, and 3D engraving machine applications.
รายละเอียด (Detail) Hiwin Dual Axis Customization - DLD
- Suitable for point-to-point motion.
- Vertical straightness up to ± 4 µm.
- Use dust-proof design.
- High load capacity.
- Simple structure and wide range of applications.

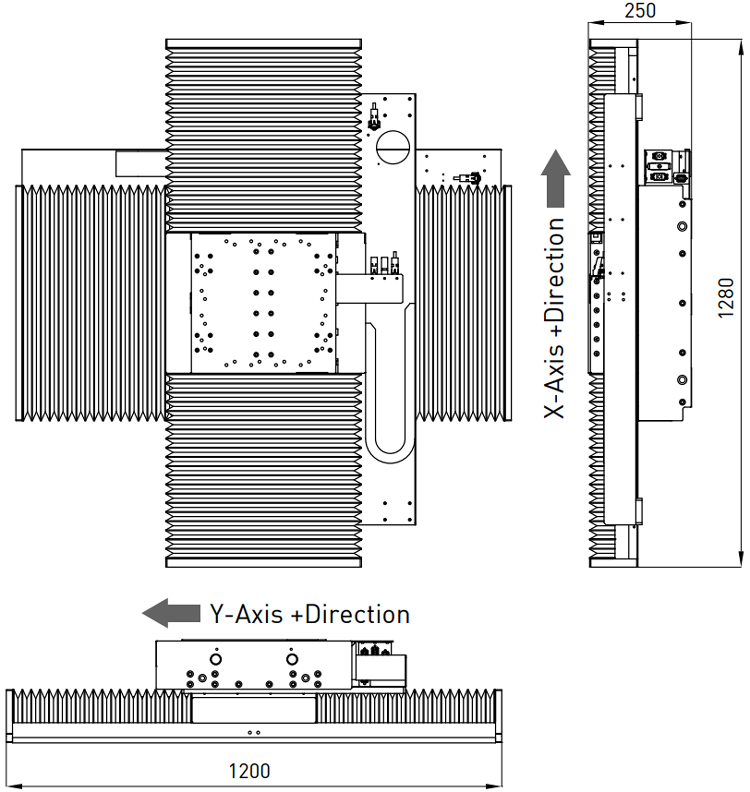

ขนาด (Dimensions) Hiwin Single Axis Customization - DLD
รายละเอียดทางเทคนิค (Specifications) Hiwin Single Axis Customization - DLD
| Stage type | LMX2C-S37S67L-600-600 |
|---|---|
| Motor Type | Ironcore(/Ironless) motor |
| Stroke(mm) | X-axis : 600, Y-axis : 600 |
| Peak Force(N) / Continuous Force(N) | X-axis : 1425/535, Y-axis : 2850/1069 |
| Repeatability(µm) | ±2 (with HIWIN solution) |
| Accuracy(µm) | ±3 (after error mapping) |
| Max. Acceleration(m/s) | X-axis : 10, Y-axis : 7(with payload) |
| Max. Velocity(m/s) | 0.7(with payload) |
| Orthogonality(arc-sec) | ±5 |
| Payload(kg) | 35 |
| Stage orientation | Horizontal |
*Note : All specifications can be designed according to customer demand.
