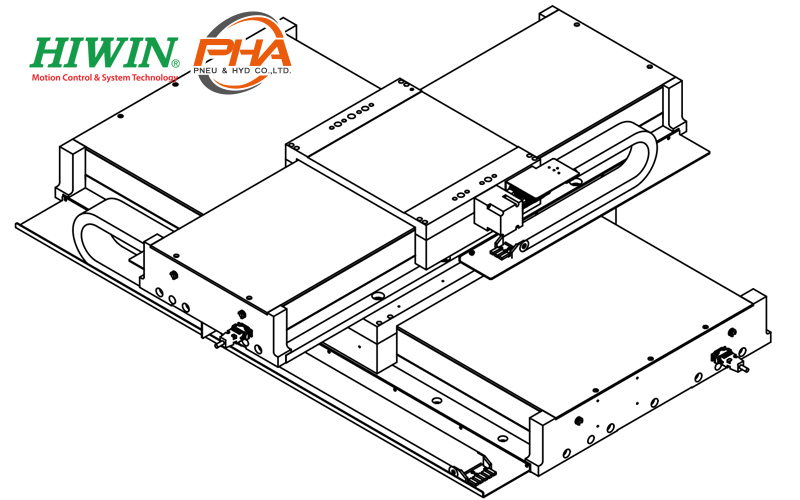

Hiwin Dual Axis Customization - DLG
ไฮวิน Dual Axis Customization - DLG
Hiwin Dual Axis Customization - DLG : Automation equipment, laser cutting equipment, PCB drilling equipment.
รายละเอียด (Detail) Hiwin Dual Axis Customization - DLG
- Sealed architecture.
- Suitable for the high dust environment.
- Low center of gravity design.
- With short setting time.
- Equipped with ironless motor.

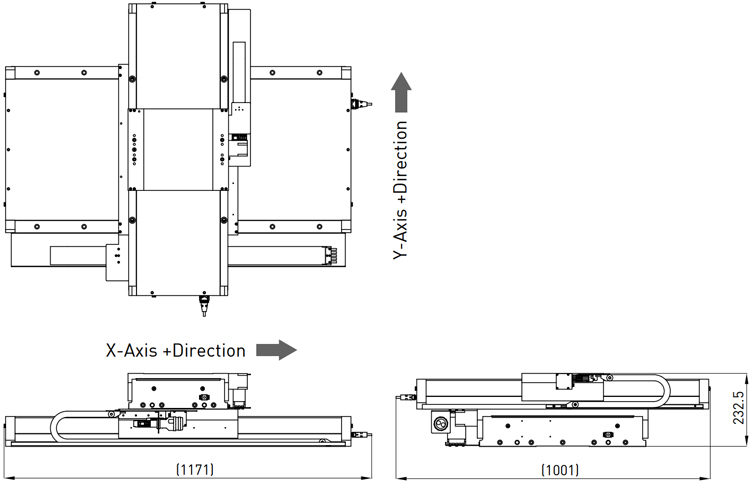

ขนาด (Dimensions) Hiwin Single Axis Customization - DLG
รายละเอียดทางเทคนิค (Specifications) Hiwin Single Axis Customization - DLG
| Stage type | LMX2C-CE4CE6-2-450-500 |
|---|---|
| Motor Type | Ironless motor |
| Stroke(mm) | X-axis : 500, Y-axis : 450 |
| Peak Force(N) / Continuous Force(N) | X-axis : 1104/276, Y-axis : 736/184 |
| Repeatability(µm) | ±1 (with HIWIN solution) |
| Accuracy(µm) | ±1.5 (after error mapping) |
| Max. Acceleration(m/s) | 5(with payload) |
| Max. Velocity(m/s) | 0.22(with payload) |
| Payload(kg) | 35 |
| Stage orientation | Horizontal |
*Note : All specifications can be designed according to customer demand.
