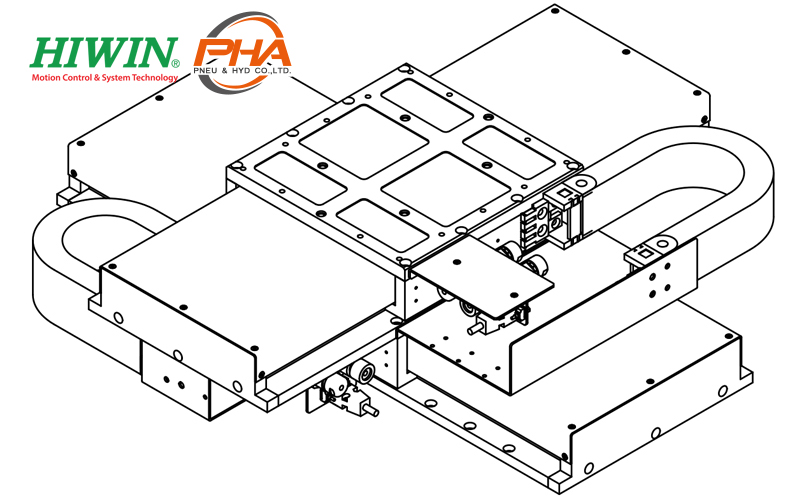

Hiwin Dual Axis Customization - DLF
ไฮวิน Dual Axis Customization - DLF
Hiwin Dual Axis Customization - DLF : Automation equipment, laser cutting equipment.
รายละเอียด (Detail) Hiwin Dual Axis Customization - DLF
- Stainless strrl cover, can withstand Instantaneous high temperature.
- Maze dust-proof design.
- With short setting time.
- Low centerof gravity design.
- Equipment with ironless motor.

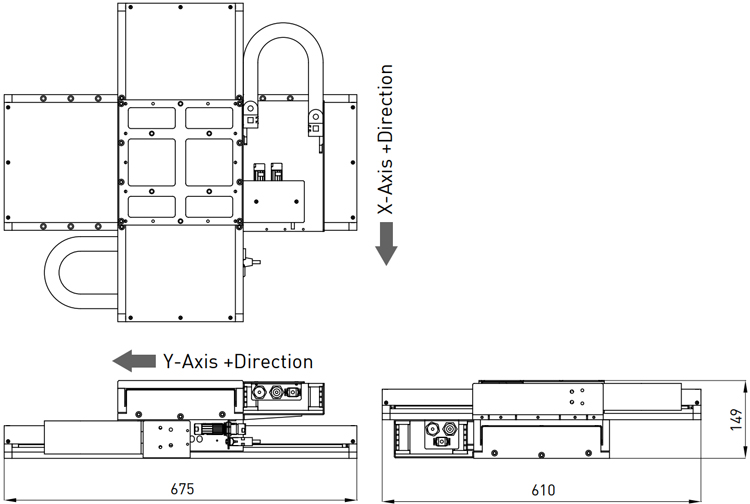

ขนาด (Dimensions) Hiwin Single Axis Customization - DLF
รายละเอียดทางเทคนิค (Specifications) Hiwin Single Axis Customization - DLF
| Stage type | LMX2C-CB7CC7-280-340 |
|---|---|
| Motor Type | Ironless motor |
| Stroke(mm) | X-axis : 280, Y-axis : 340 |
| Peak Force(N) / Continuous Force(N) | X-axis : 512/128, Y-axis : 684/171 |
| Repeatability(µm) | ±3 (with HIWIN solution) |
| Accuracy(µm) | ±5 (after error mapping) |
| Max. Acceleration(m/s) | X-axis : 10, Y-axis : 5(with payload) |
| Max. Velocity(m/s) | X-axis : 0.7, Y-axis : 0.5(with payload) |
| Orthogonality(arc-sec) | ±5 |
| Payload(kg) | 35 |
| Stage orientation | Horizontal |
*Note : All specifications can be designed according to customer demand.
