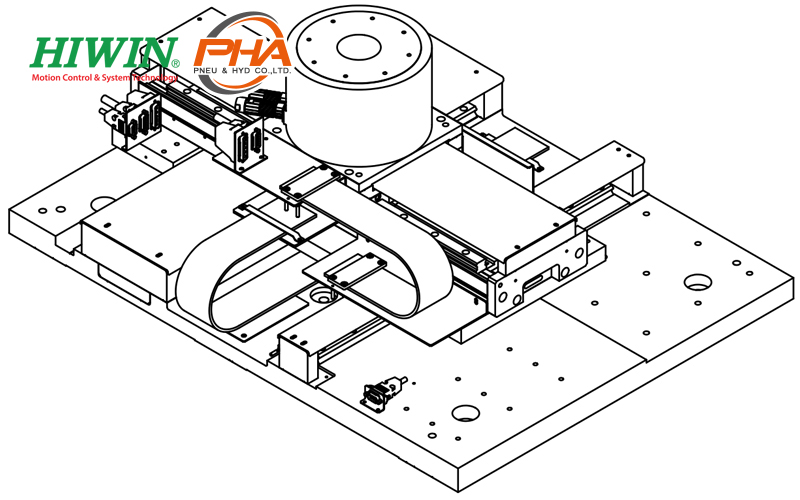

Hiwin Dual Axis Customization - DLH : Automation equipment, plasma repair equipment, electron beam scanning applications.
รายละเอียด (Detail) Hiwin Dual Axis Customization - DLH
- Suitable for vacuum environment, 1 x 10-6 Torr.
- Vacuum flat cable.
- Integration of high-precision torque motor.
- X-Y positioning with high precision angular compensation.
- Can be equipped with ironless or ironcore motor.

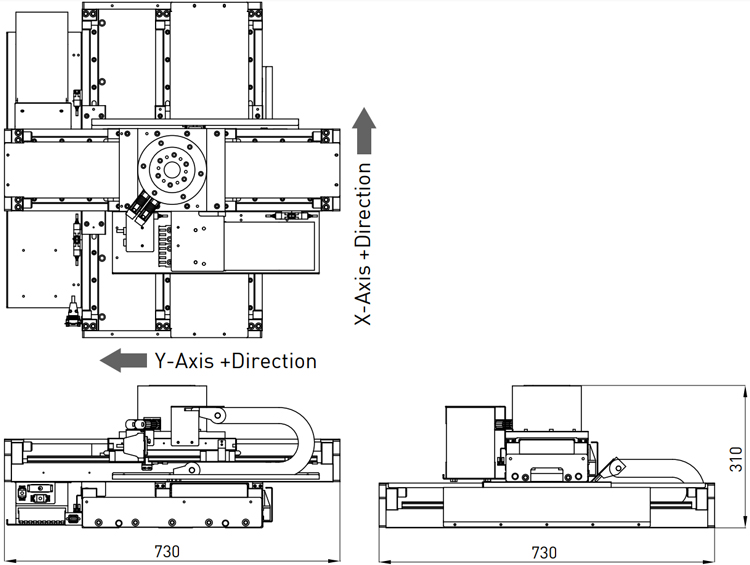

ขนาด (Dimensions) Hiwin Single Axis Customization - DLH
รายละเอียดทางเทคนิค (Specifications) Hiwin Single Axis Customization - DLH
| Stage type | LMX2C-S23S27-360-240+TMS32 |
|---|---|
| Motor Type | Ironcore(/Ironless) motor |
| Stroke(mm) | X-axis : 240, Y-axis : 360 |
| Peak Force(N) / Continuous Force(N) | X-axis : 1014/382, Y-axis : 639/240 |
| Repeatability(µm) | X-axis : ±2, Y-axis : ±1 (with HIWIN solution) |
| Accuracy(µm) | X-axis : ±5, Y-axis : ±3 (after error mapping) |
| Max. Acceleration(m/s2) | X-axis : 5, Y-axis : 5(with payload) |
| Max. Velocity(m/s) | X-axis : 0.7, Y-axis : 1(with payload) |
| Payload(kg) | 5 |
| Stage orientation | Horizontal |
| Torque Motor Type | TMS32 |
| Peak Torque(Nm) / Cotinuous Torque(Nm) | 30/10 |
| Max. Velocity(rpm) | 700(220V) |
| Repeatability(arc-sec) | ±3 |
| Accuracy(are-sec) | ±45 |
| Inertia of rotation parts(kgm2) | 0.014 |
*Note : All specifications can be designed according to customer demand.
