Hiwin Gantry Structure Customization - GLF : Optical detection applications, 3D measurement system

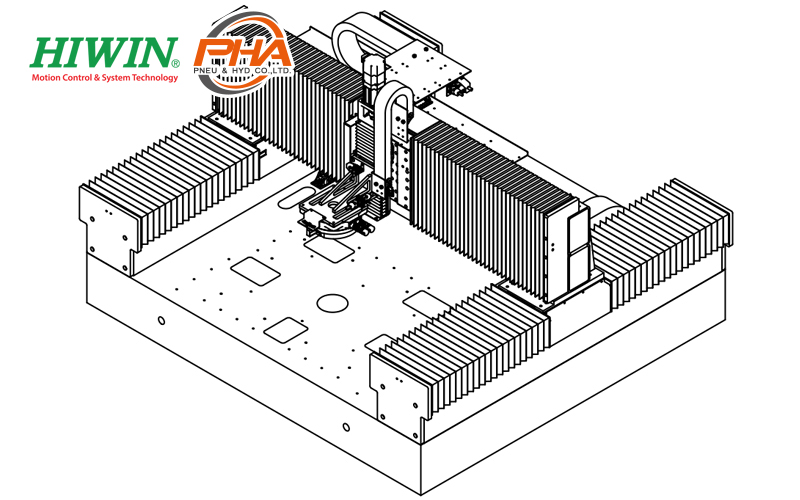

รายละเอียด (Detail) Hiwin Gantry Structure Customization - GLF
- High stiffness aluminum gantry structure.
- Suitable for high acceleration and deceleration applications.
- Maximize the working area.
- Space saving.
- Can be equipped with ironless or ironcore motor.

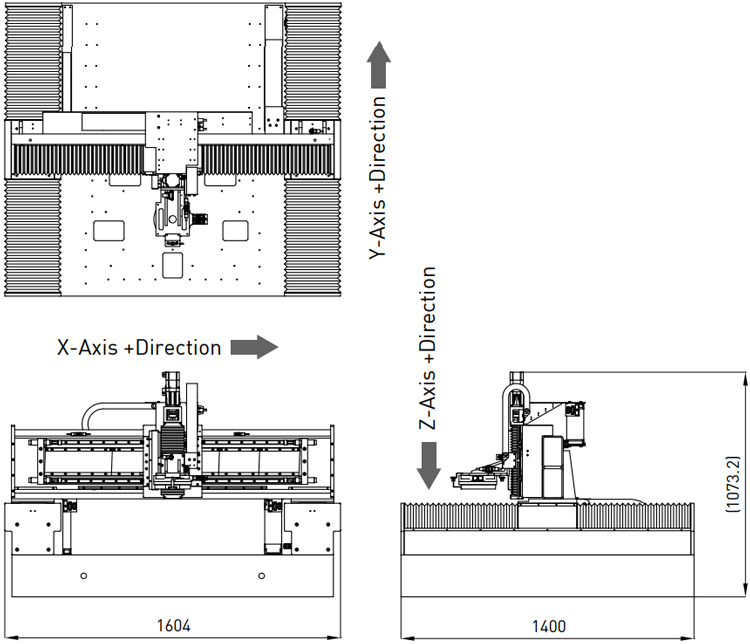

ขนาด (Dimensions) Hiwin Gantry Structure Customization - GLF
รายละเอียดทางเทคนิค (Specifications) Hiwin Gantry Structure Customization - GLF
| Stage type | LMG3C-S47LS37L-750-550+KK8610P-340A1-F0BS2M+TMN71EH |
|---|---|
| Motor Type | Ironcore(/Ironless) motor & HIWIN AC Servo motor |
| Stroke(mm) | X-axis : 750, Y-axis : 550, Z-axis : 170 |
| Peak Force(N) / Continuous Force(N) | X-axis : 1953/733, Y-axis : 1425/535, Z-axis : HIWIN 400W |
| Repeatability(µm) | X-axis : ±1, Y-axis : ±1, Z-axis : ±2(with HIWIN solution) |
| Accuracy(µm) | ±3(after error mapping) |
| Max. Acceleration(m/s2) | X-axis : 20, Y-axis: 4, Z-axis : 2.5(with payload) |
| Max. Velocity(m/s) | X-axis : 1, Y-axis: 1, Z-axis : 0.5(with payload) |
| Payload(kg) | 5 |
| Stage orientetion | Horizontal |
| Torque Motor Type | TMN71EH |
| Peak Torque(Nm)/Continuous Torque(Nm) | 11.1/3.7 |
| Max. Velocity(rpm) | 600(220V) |
| Repeatability(arc-sec) | ±2.5 |
| Accuracy(arc-sec) | ±10 |
| Inertia of rotation parts(kgm2) | 0.008 |
Note : All specifications can be designed according to customer demand.
