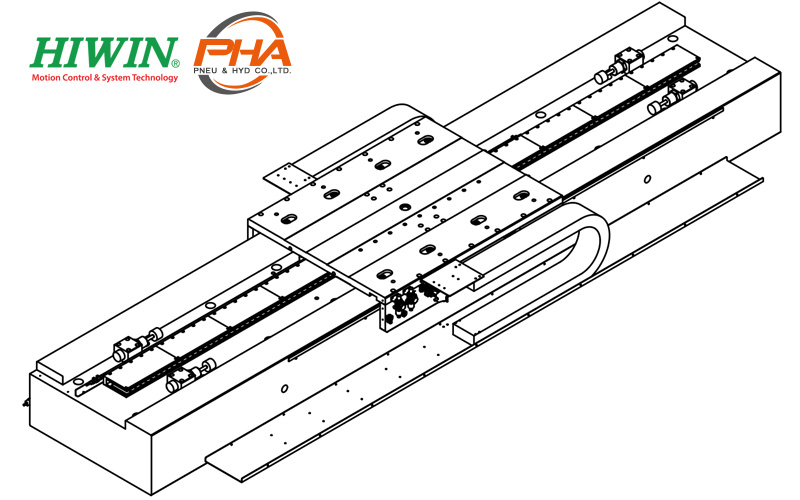

Hiwin Gantry Structure Customization - ALC : Large-size glass substrate detection equipment
รายละเอียด (Detail) Hiwin Gantry Structure Customization - ALC
- Using non-contact air bearing.
- Without main tenance.
- High positioning accuracy.
- High load capacity of up to 680 kg.
- Certical straightness up to ±3 µm.
- Equipped with ironless motor.

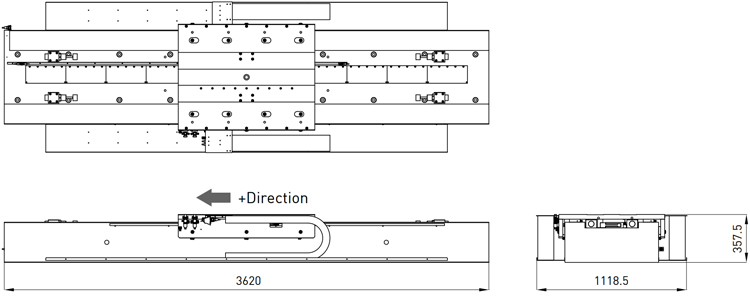

ขนาด (Dimensions) Hiwin Gantry Structure Customization - ALC
รายละเอียดทางเทคนิค (Specifications) Hiwin Gantry Structure Customization - ALC
| Stage type | LMAP-CFC-1-2350 |
|---|---|
| Motor Type | Ironless motor |
| Stroke(mm) | 2320 |
| Peak Force(N) / Continuous Force(N) | 2736/684 |
| Repeatability(µm) | ±0.5(with HIWIN solution) |
| Accuracy(µm) | ±2(after error mapping) |
| Max. Acceleration(m/s2) | 2(with payload) |
| Max. Velocity(m/s) | 0.7(with payload) |
| Vertical Straightness(µm) | ±4 |
| Horizontal Straightness(µm) | ±3 |
| Payload(kg) | 680 |
| Stage orientation | Horizontal |
Note : All specifications can be designed according to customer demand.
