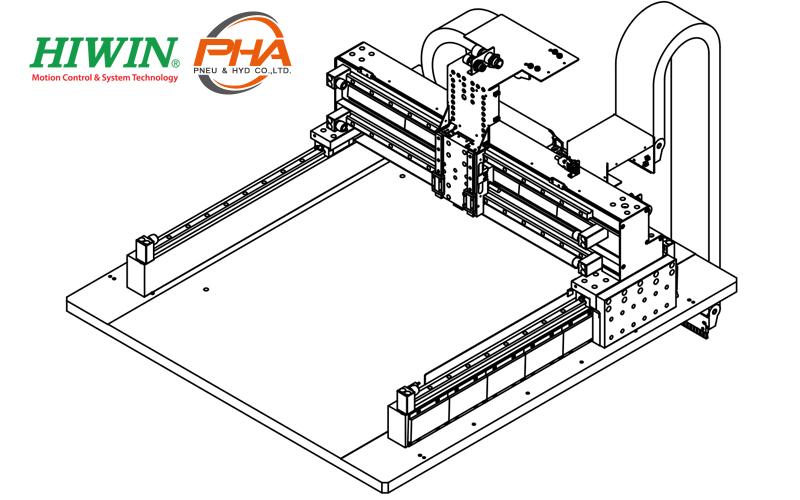

Hiwin Gantry Structure Customization - GLE
ไฮวิน Gantry Structure Customization - GLE
Hiwin Gantry Structure Customization - GLE : Automation industrial equipment, electronic components plug-in assembly equipment, AOI equipment, automatic coating equipment
รายละเอียด (Detail) Hiwin Gantry Structure Customization - GLE
- High stiffness aluminum gantry structure.
- Suitable for high acceleration and deceleration applications.
- Maximize the working area.
- Space saving.
- Can be equipped with ironless or ironcore motor.

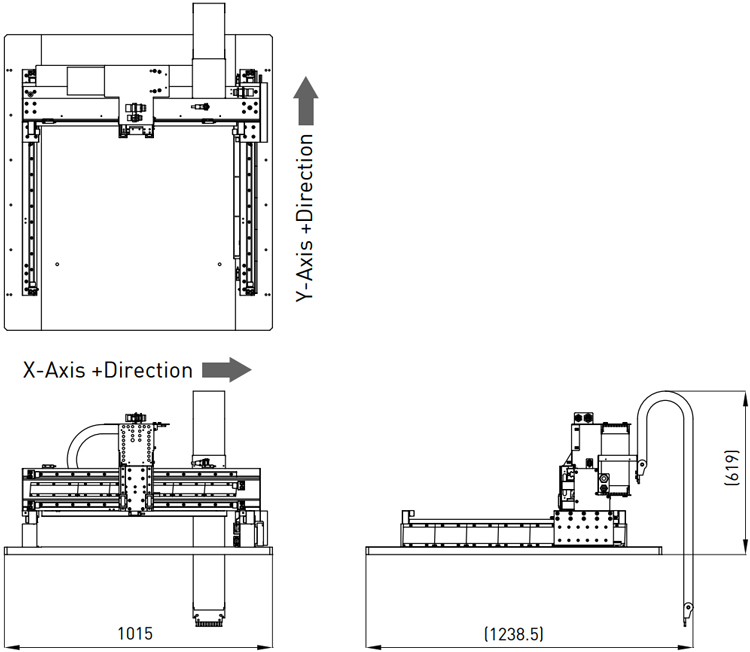

ขนาด (Dimensions) Hiwin Gantry Structure Customization - GLE
รายละเอียดทางเทคนิค (Specifications) Hiwin Gantry Structure Customization - GLE
| Stage type | LMG2C-SA11SA22-580-500 |
|---|---|
| Motor Type | Ironcore(/Ironless) motor |
| Stroke(mm) | X-axis :580, Y-axis :500 |
| Peak Force(N) / Continuous Force(N) | X-axis : 289/121, Y-axis : 1023/426 |
| Repeatability(µm) | ±2.5(uni-direction, with HIWIN solution) |
| Accuracy(µm) | ±5(after error mapping) |
| Max. Acceleration(m/s2) | X-axis : 10, Y-axis: 10(with payload) |
| Max. Velocity(m/s) | X-axis : 0.5, Y-axis: 0.5(with payload) |
| Vertical Straightnees(µm) | ±5 |
| Horizontal Straightnees(µm) | ±5 |
| Payload(kg) | 12 |
| Stage orientation | Horizontal |
Note : All specifications can be designed according to customer demand.
