Hiwin Gantry Structure Customization - GLB
ไฮวิน Gantry Structure Customization - GLB
Hiwin Gantry Structure Customization - GLB : Automation industrial equipment, laser cutting applications, spraying equipment
รายละเอียด (Detail) Hiwin Gantry Structure Customization - GLB

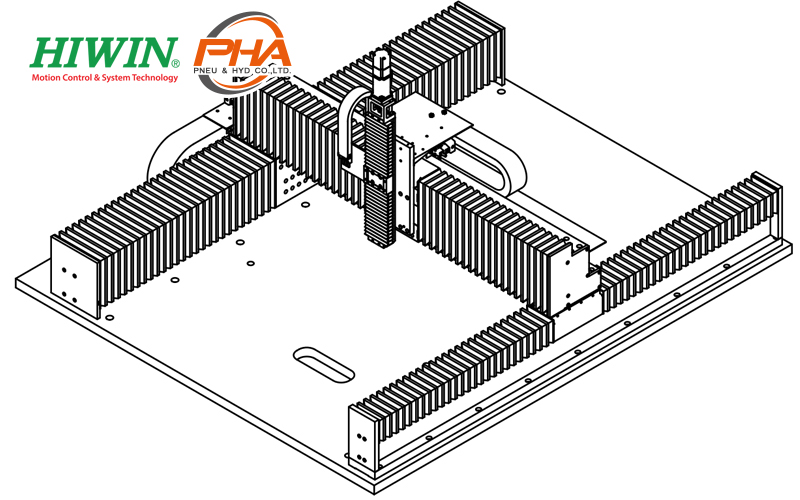

- High stiffness aluminum gantry structure.
- Use dust-proof design.
- Z-axis designed with KK series ballscrew driven stage module.
- Unilateral or bilateral drive structure are seletable according to the precision requirement.
- Can be equipped with ironless or ironcoremotor.

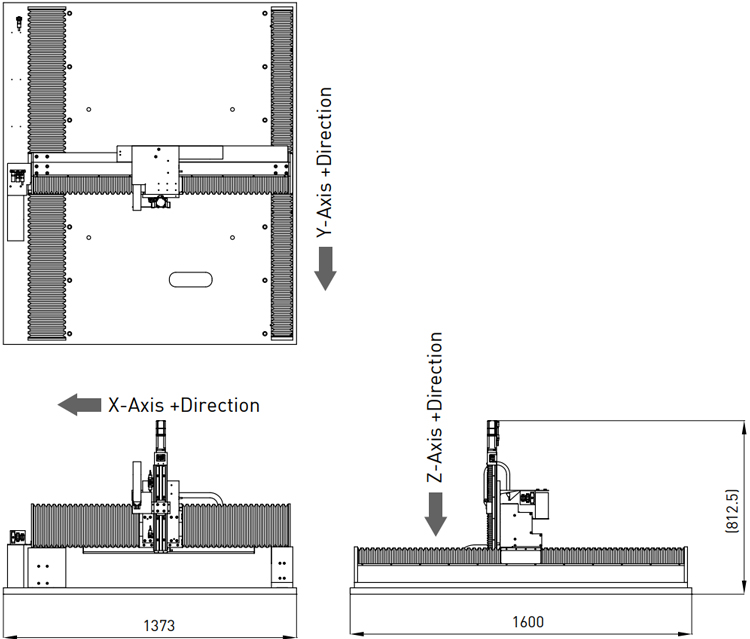

ขนาด (Dimensions) Hiwin Gantry Structure Customization - GLB
รายละเอียดทางเทคนิค (Specifications) Hiwin Gantry Structure Customization - GLB
| Stage type | LMG2A-S13S23-600-900+KK6005C-400A1-F2BS2M |
|---|---|
| Motor Type | Ironcore(/Ironless) motor & HIWIN AC Servo motor |
| Stroke(mm) | X-axis :600, Y-axis :900, Z-axis : 234 |
| Peak Force(N) / Continuous Force(N) | X-axis : 540/203, Y-axis : 639/240, Z-axis : HIWIN 100W(220V) |
| Ball screw lead(mm) | Z-axis :5 |
| Repeatability(µm) | X-axis : ±5, Y-axis : ±5, Z-axis : ±2(uni-direction, with HIWIN solution) |
| Accuracy(µm) | X-axis : ±15, Y-axis : ±15, Z-axis : C(uni-direction, after error mapping) |
| Max. Acceleration(m/s2) | 5(with payload) |
| Max. Velocity(m/s) | 0.02(with payload) |
| Payload(kg) | 5 |
| Stage orientation | Horizontal |
Note : All specifications can be designed according to customer demand.
