Hiwin Gantry Structure Customization - GLD
ไฮวิน Gantry Structure Customization - GLD
Hiwin Gantry Structure Customization - GLD : Automation industrial equipment, laser cutting applications, spraying equipment

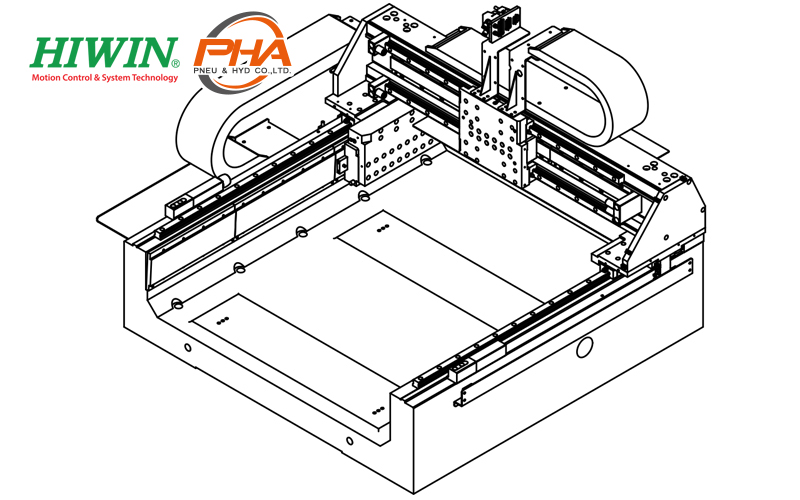

รายละเอียด (Detail) Hiwin Gantry Structure Customization - GLD
- High stiffness cast iron base.
- With excellent vibration suppression capability.
- Suitable for high acceleration and deceleration applications.
- With excellent positioning accuracy.
- Unilateral or bilateral drive structure are seletable according to the precision requirement.

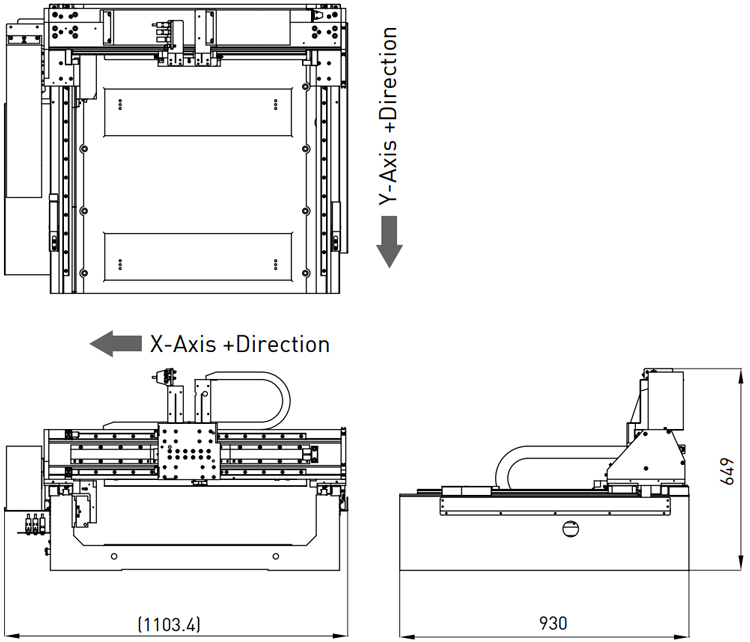

ขนาด (Dimensions) Hiwin Gantry Structure Customization - GLD
รายละเอียดทางเทคนิค (Specifications) Hiwin Gantry Structure Customization - GLD
Specifications | Stage Gantry Structure Customization - GLD
| Stage type | LMG2C-S13S37L-515-540 |
|---|---|
| Motor Type | Ironcore(/Ironless) motor |
| Stroke(mm) | X-axis :515, Y-axis :540 |
| Peak Force(N) / Continuous Force(N) | X-axis : 540/203, Y-axis : 1425/535 |
| Repeatability(µm) | ±1(uni-direction, with HIWIN solution) |
| Accuracy(µm) | ±2(after error mapping) |
| Max. Acceleration(m/s2) | X-axis : 15, Y-axis: 10(with payload) |
| Max. Velocity(m/s) | X-axis : 1.5, Y-axis: 1.5(with payload) |
| Vertical Straightnees(µm) | 10 |
| Horizontal Straightnees(µm) | 10 |
| Pitch(arc-sec) | 25 |
| Yaw(arc-sec) | X-axis : 20, Y-axis : 15 |
| Orthogonality(arc-sec) | ±5 |
| Payload(kg) | 12 |
| Stage orientation | Horizontal |
Note : All specifications can be designed according to customer demand.
