Hiwin Gantry Structure Customization - GBC
ไฮวิน Gantry Structure Customization - GBC

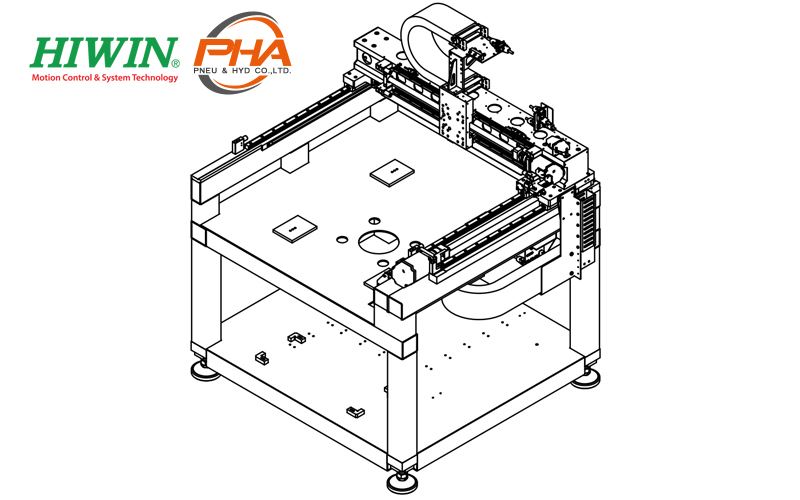

Hiwin Gantry Structure Customization - GBC : Automation equipment, AOI inspection applications.
รายละเอียด (Detail) Hiwin Gantry Structure Customization - GBC
- Ballscrew structure
- High acceleration and deceleration motion.
- Can be equipped with linear scale to enhance the positioning accuracy and reproducibility.
- Simple structure.

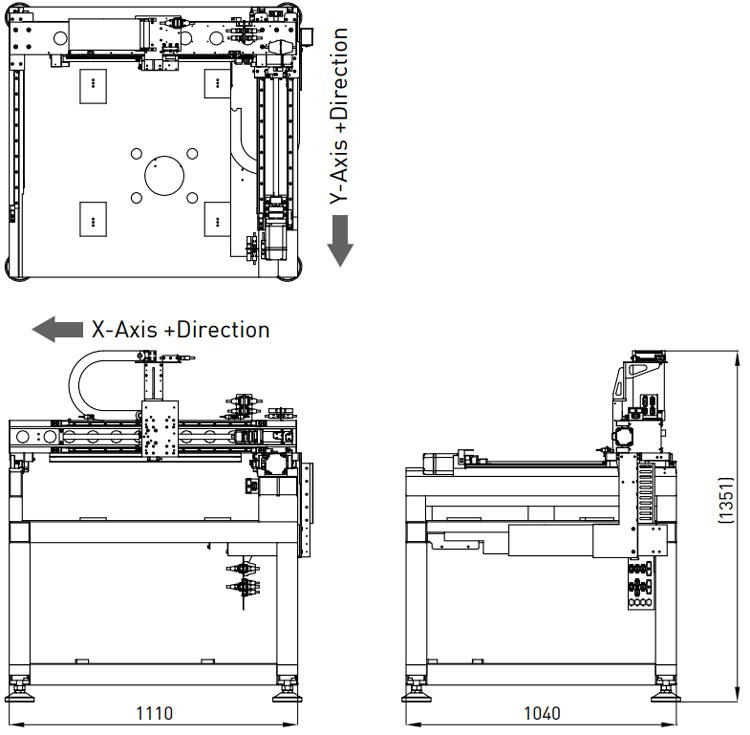

ขนาด (Dimensions) Hiwin Gantry Structure Customization - GBC
รายละเอียดทางเทคนิค (Specifications) Hiwin Gantry Structure Customization - GBC
| Stage type | BS-20-540+BS-20-515 |
|---|---|
| Motor Type | HIWIN AC Servo motor |
| Stroke(mm) | X-axis : 515, Y-axis : 540 |
| Ball screw lead(mm) | 20 |
| Repeatability(µm) | ±2.5(uni-direction, with HIWIN solution) |
| Accuracy(µm) | ±6(after error mapping) |
| Max. Acceleration(m/s2) | X-axis : 12, Y-axis: 17(with payload) |
| Max. Velocity(m/s) | X-axis : 1, Y-axis: 1(with payload) |
| Vertical Straightness(µm) | 20 |
| Horizontal Straightness(µm) | 20 |
| Pitch(arc-sec) | 30 |
| Yaw(arc-sec) | X-axis : 20, Y-axis : 25 |
| Orthogonality(arc-sec) | ±10 |
| Payload(kg) | 9 |
| Stage orientation | Horizontal |
Note : All specifications can be designed according to customer demand.
