Linear Guide - QH series
ไฮวินลิเนียร์ไกด์ QH
HIWIN Linear Guide, Linear Motion - QH series HIWIN ได้พัฒนาลิเนียร์ไกด์ซึ่งภายในจะมีแถวเม็ดลูกปืน 4 แถว QH series จะมีเทคโนโลยี ซิงค์โมชั่น (SynchMotion) ซึ่งก็คือรังพลาสติกที่กั้นระหว่างเม็ดลูกปืนทำให้การเคลื่อนที่ราบรื่น การหล่อลื่นทำได้ดีกว่า การทำงานเงียบ และอายุการใช้งานนานดังนั้น ลิเนียร์ไกด์ QH series สามารถใช้ในอุตสาหกรรมที่ต้องการความเร็ว เสียงรบกวนต่ำ งานที่ไม่ต้องการให้เกิดฝุ่นละออง และยังสามารถเปลี่ยนใช้กับ HG series ได้
The development of HIWIN-QH linear guideway is based on a four-row circular-arc contact. The HIWIN-QH series linear guideway with SynchMotionTM Technology offers smooth movement, superior lubrication, quieter operation and longer running life. Therefore the HIWIN QH linear guideway has broad industrial applicability. In the hightech industry where high speed, low noise, and reduced dust generation is required, the HIWIN QH series is interchangeable with the HIWIN HG series.
-

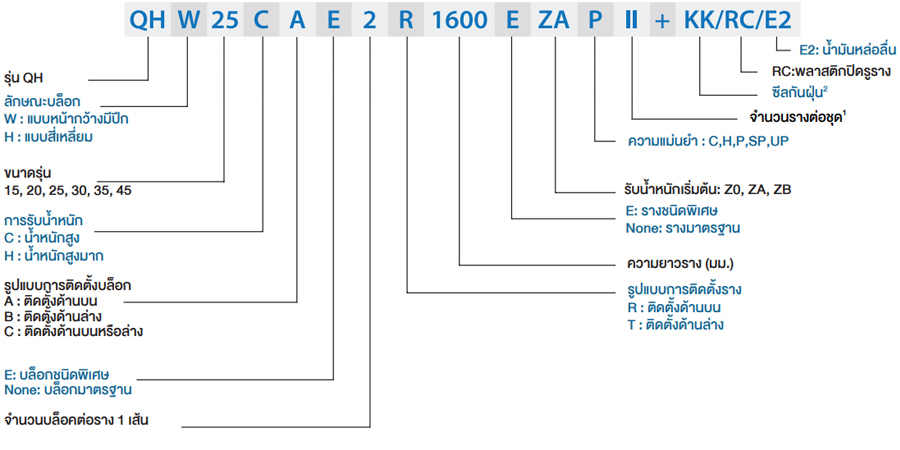

Assembly
-

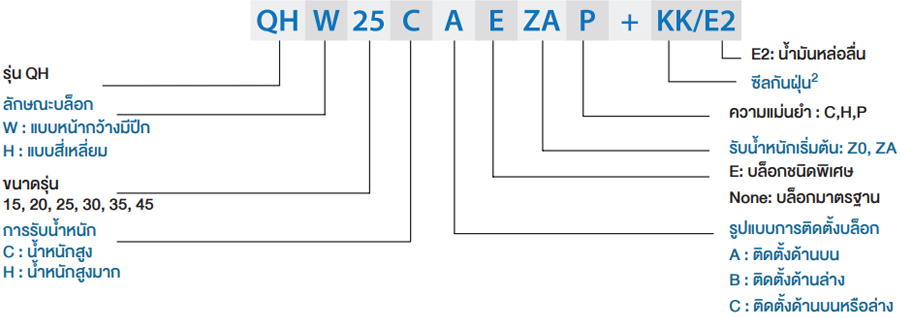

Block
-

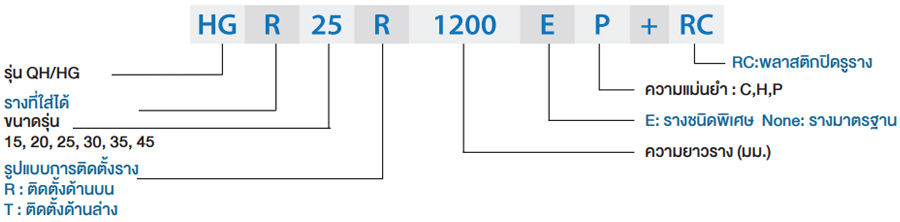

Rail
รายละเอียด (Details) HIWIN Linear Guide - QH series
- มีแถวเม็ดลูกปืน 4 แถว
- มีเทคโนโลยี ซิ่งค์โมชั่น ซึ่งก็คือรังพลาสติกกั้นระหว่างลูกปืน
- มีการเคลื่อนที่ราบรื่น การหล่อลื่นทำได้ดีกว่า การทำงานเงียบ และอายุการใช้งานนาน
- เหมาะสำหรับใช้ในงานอุตสาหกรรมต่างๆ ที่ต้องการความรวดเร็ว มีเสียงรบกวนต่ำ และงานที่ไม่ต้องการให้เกิดฝุ่นละออง
- สามารถเปลี่ยนใช้กับ HG series ได้
- With SynchMotionTM technology, rolling elements are interposed between the partitions of SynchMotionTM to provide impoved circulation. Due to the elimination of contact between the rolling elements, collision noise and sound levels are drastically reduced.
- The Partition is grouping of hollow ring-like structures formed with a through hole to facilitate circucation of the lubricant. Because of the special lubrication path design, the lubricant of the partition storage space can be refilled. Therefore, the frequency of lubricant refilling can be decreased. The QH series linear guidewat is pre-lubricated. Performance testing at a 0.2C (basic dynamic load) show that after running 2,500 km on damage was apparent to either the rolling elements or the raceway.
- In Standard linear guideways, rolling elements on the load side of the guide block begin rolling and push their way through the raceway. When they contact other rolling elements they create counter-rotational friction. This results in a great cariation of rolling resistance. The QH linear guideway, with SynchMotionTM technology prevents this condition. As the block starts to move, the rolling elements begin rolling consecutively and remain separated to prevent contact with one another stable in order to effectively reduce fluctuations in rolling resistance.
- The Hiwin-QH series offers excellent high-speed performance due to the partitions of the SynchMotionTM structure. They are employed to separate the adjacent balls thereby resulting in low rolling traction between adjacent balls is elimianted.
รายละเอียดทางเทคนิค (Specifications) HIWIN Linear Guide - QH series

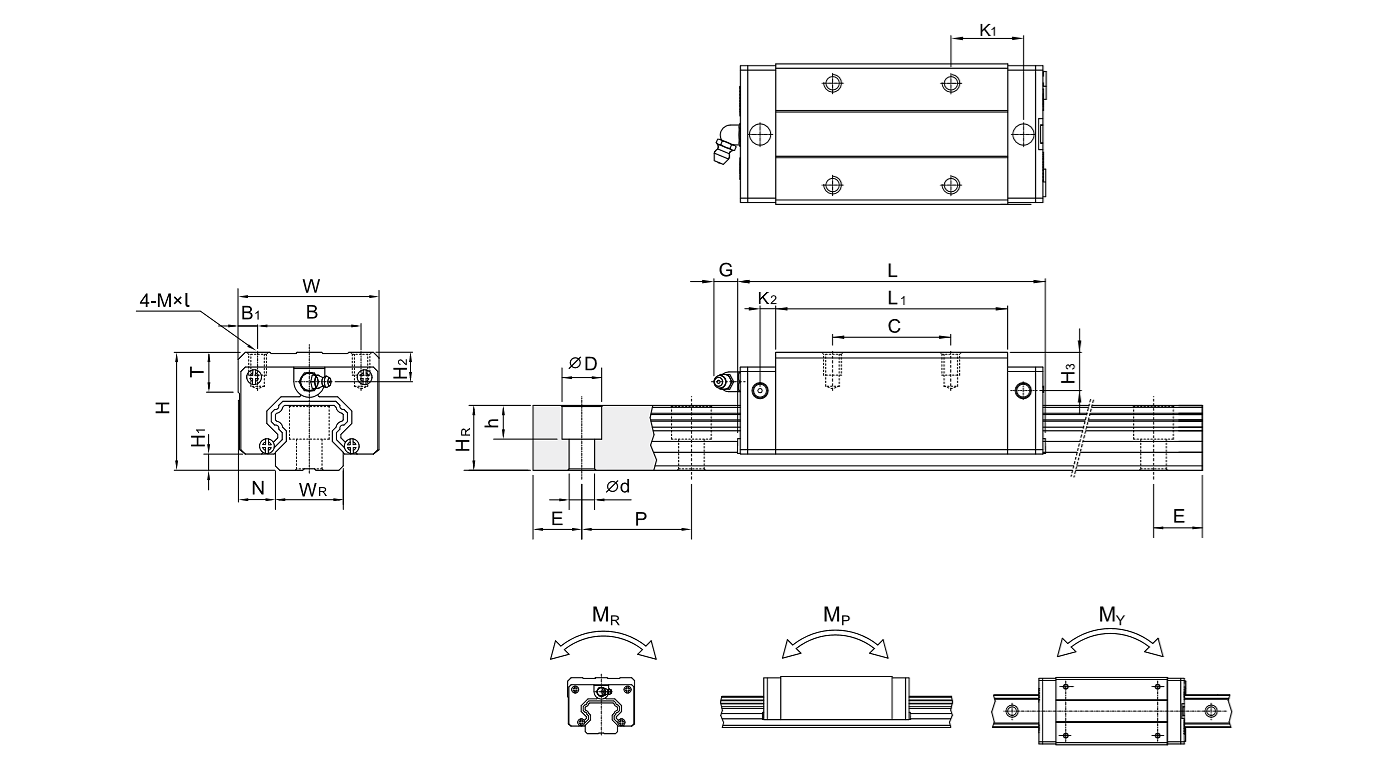

Model Dimensions of Assembly(mm) Dimensions of Block(mm) Dimensions of Rail(mm) Mounting Bolt for Rail Basic Dynamic Load Rating Basic Static Load Rating Static Rated Moment Weight H H1 N W B B1 C L1 L K1 K2 G Mxl T H2 H3 WR HR D h d P E (mm) C(kN) C0(kN) MR(kN-m) MP(kN-m) MY(kN-m) Block(kg) Rail(kg/m) QHH15CA 28 4 9.5 34 26 4 26 39.4 61.4 10 5 5.3 M4 x 5 6 7.95 8.2 15 15 7.5 5.3 4.5 60 20 M4x16 17.94 19.86 0.1 0.08 0.08 0.18 1.45 QHH20CA 30 4.6 12 44 32 6 36 50.5 76.7 11.75 6 12 M5 x 6 8 6 6 20 17.5 9.5 8.5 6 60 20 M5x16 30 33.86 0.26 0.19 0.19 0.29 2.21 QHH20HA 30 4.6 12 44 32 6 50 65.2 91.4 12.1 6 12 M5 x 6 8 6 6 20 17.5 9.5 8.5 6 60 20 M5x16 35.7 42.31 0.31 0.27 0.27 0.38 2.21 QHH25CA 40 5.5 12.5 48 35 6.5 35 58 83.4 15.7 6 12 M6 x8 8 10 9 23 22 11 9 7 60 20 M6x20 41.9 48.75 0.39 0.31 0.31 0.5 3.21 QHH25HA 40 5.5 12.5 48 35 6.5 50 78.6 104 18.5 6 12 M6 x8 8 10 9 23 22 11 9 7 60 20 M6x20 50.61 60.94 0.5 0.45 0.45 0.68 3.21 QHH30CA 45 6 16 60 40 10 40 70 97.4 19.5 6.25 12 M8x10 8.5 9.5 9 28 26 14 12 9 80 20 M8x25 58.26 66.34 0.6 0.5 0.5 0.87 4.47 QHH30HA 45 6 16 60 40 10 60 93 120.4 21.75 6.25 12 M8x10 8.5 9.5 9 28 26 14 12 9 80 20 M8x25 70.32 88.45 0.83 0.89 0.89 1.15 4.47 QHH35CA 55 7.5 18 70 50 10 50 80 113.6 19 7.5 12 M8x12 10.2 15.5 13.5 34 29 14 12 9 80 20 M8x25 78.89 86.66 1.07 0.76 0.76 1.44 6.3 QHH35HA 55 7.5 18 70 50 10 72 105.8 139.4 20.9 7.5 12 M8x12 10.2 15.5 13.5 34 29 14 12 9 80 20 M8x25 95.23 115.55 1.45 1.33 1.33 1.9 6.3 QHH45CA 70 9.2 20.5 86 60 13 60 97 139.4 23 10 12.9 M10x17 16 18.5 20 45 38 20 17 14 105 22.5 M12x35 119.4 135.42 1.83 1.38 1.38 2.72 10.41 QHH45HA 70 9.2 20.5 86 60 13 80 128.8 171.2 29.09 10 12.9 M10x17 16 18.5 20 45 38 20 17 14 105 22.5 M12x35 144.13 180.56 2.47 2.41 2.41 3.59 10.41

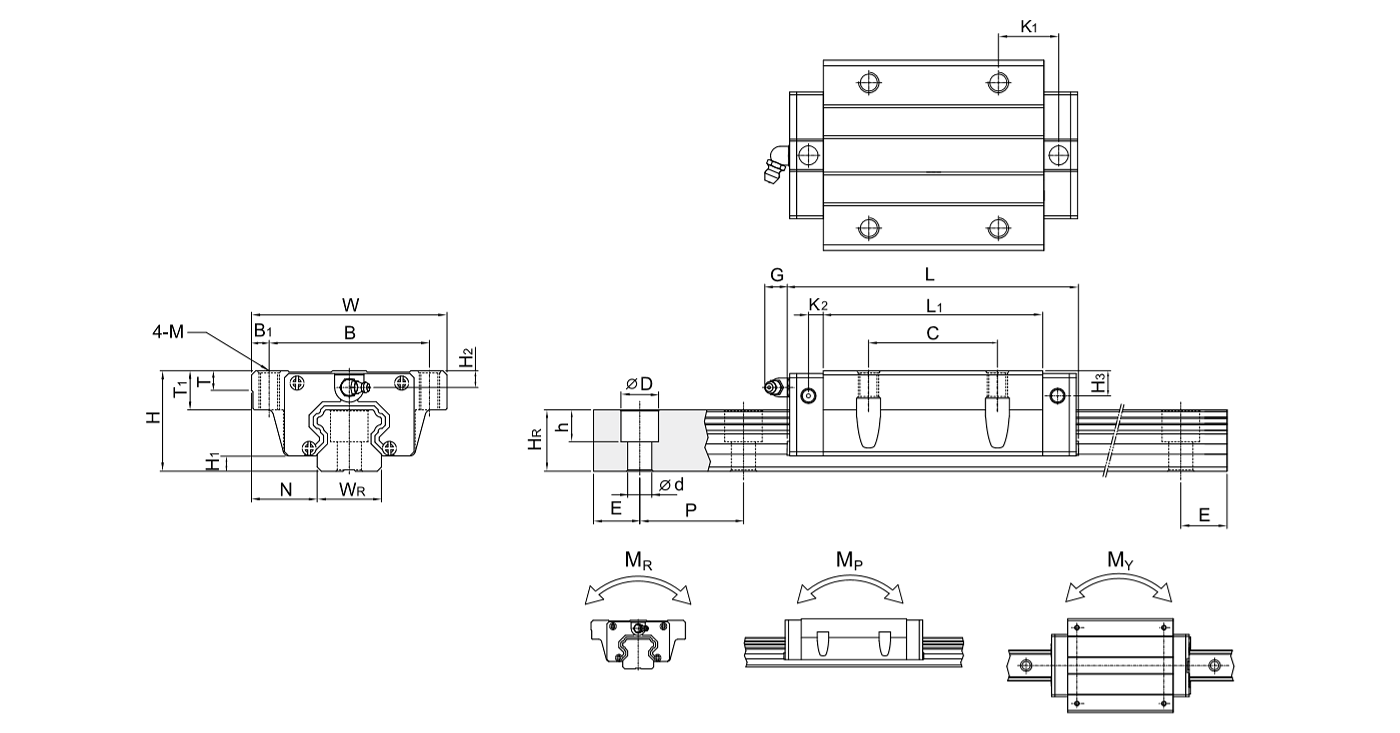

Model Dimensions of Assembly(mm) Dimensions of Block(mm) Dimensions of Rail(mm) Mounting Bolt for Rail Basic Dynamic Load Rating Basic Static Load Rating Static Rated Moment Weight H H1 N W B B1 C L1 L K1 K2 G M T T1 H2 H3 WR HR D h d P E (mm) C(kN) C0(kN) MR(kN-m) MP(kN-m) MY(kN-m) Block(kg) Rail(kg/m) QHW15CA 24 4 16 47 38 4.5 30 39.4 61.4 8 5 5.3 M5 6 8.9 3.95 4.2 15 15 7.5 5.3 4.5 60 20 M4x16 17.94 19.86 0.1 0.08 0.08 0.17 1.45 QHW20CA 30 4.6 21.5 63 53 5 40 50.5 76.7 9.75 6 12 M6 8 10 6 6 20 17.5 9.5 8.5 6 60 20 M5x16 30 33.86 0.26 0.19 0.19 0.4 2.21 QHW20HA 30 4.6 21.5 63 53 5 40 65.2 91.4 17.1 6 12 M6 8 10 6 6 20 17.5 9.5 8.5 6 60 20 M5x16 35.7 42.31 0.31 0.27 0.27 0.52 2.21 QHW25CA 36 5.5 23.5 70 57 6.5 45 58 83.4 10.7 6 12 M8 8 14 6 5 23 22 11 9 7 60 20 M6x20 41.9 48.75 0.39 0.31 0.31 0.59 3.21 QHW25HA 36 5.5 23.5 70 57 6.5 45 78.6 104 21 6 12 M8 8 14 6 5 23 22 11 9 7 60 20 M6x20 50.61 60.94 0.5 0.45 0.45 0.8 3.21 QHW30CA 42 6 31 90 72 9 52 70 97.4 13.5 6.25 12 M10 8.5 16 6.5 6 28 26 14 12 9 80 20 M8x25 58.26 66.34 0.6 0.5 0.5 1.09 4.47 QHW30HA 42 6 31 90 72 9 52 93 120.4 25.75 6.25 12 M10 8.5 16 6.5 6 28 26 14 12 9 80 20 M8x25 70.32 88.45 0.83 0.89 0.89 1.44 4.47 QHW35CA 48 7.5 33 100 82 9 62 80 113.6 13 7.5 12 M10 10.1 18 8.5 6.5 34 29 14 12 9 80 20 M8x25 78.89 86.66 1.07 0.76 0.76 1.56 6.3 QHW35HA 48 7.5 33 100 82 9 62 105.8 139.4 25.9 7.5 12 M10 10.1 18 8.5 6.5 34 29 14 12 9 80 20 M8x25 95.23 115.55 1.45 1.33 1.33 2.06 6.3 QHW45CA 60 9.2 37.5 120 100 10 80 97 139.4 13 10 12.9 M12 15.1 22 8.5 10 45 38 20 17 14 105 22.5 M12x35 119.4 135.42 1.83 1.38 1.38 2.79 10.41 QHW45HA 60 9.2 37.5 120 100 10 80 128.8 171.2 28.9 10 12.9 M12 15.1 22 8.5 10 45 38 20 17 14 105 22.2 M12x35 144.13 180.56 2.47 2.41 2.41 3.69 10.41

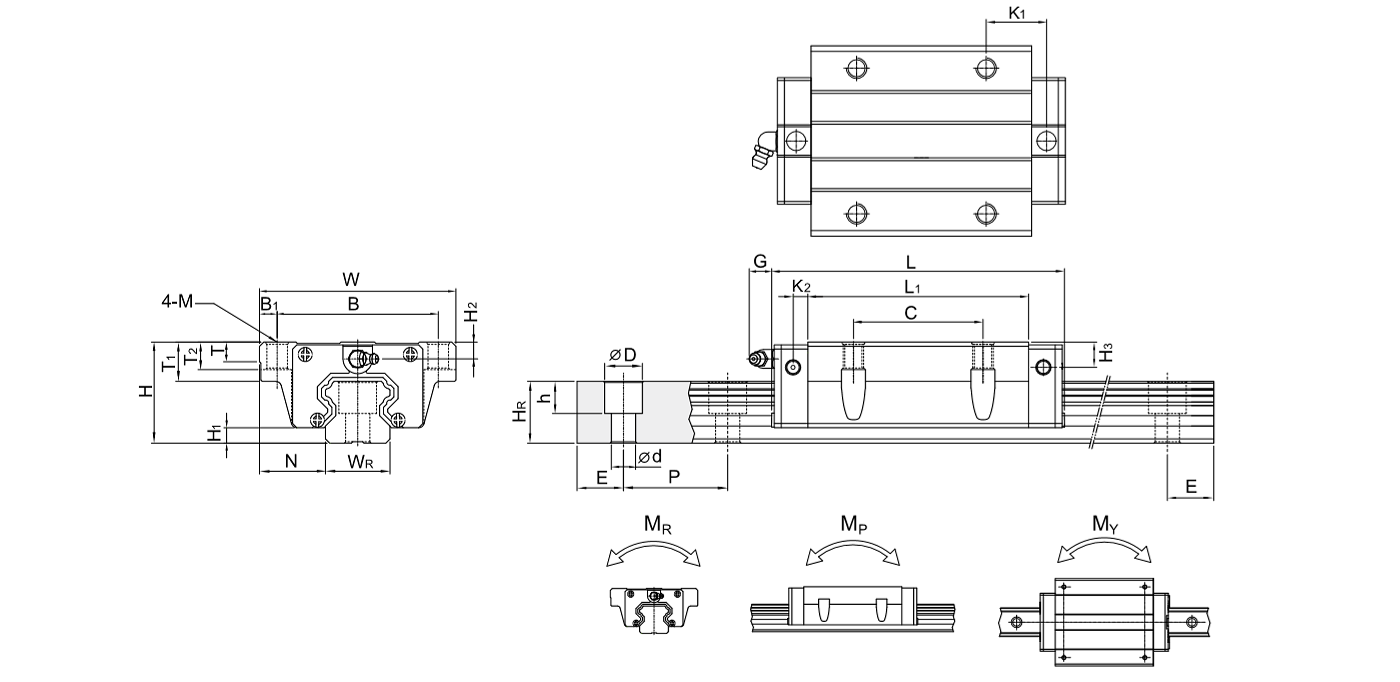

Model Dimensions of Assembly(mm) Dimensions of Block(mm) Dimensions of Rail(mm) Mounting Bolt for Rail Basic Dynamic Load Rating Basic Static Load Rating Static Rated Moment Weight H H1 N W B B1 C L1 L K1 K2 G M T T1 T2 H2 H3 WR HR D h d P E (mm) C(kN) C0(kN) MR(kN-m) MP(kN-m) MY(kN-m) Block(kg) Rail(kg/m) QHW15CB 24 4 16 47 38 4.5 30 39.4 61.4 8 5 5.3 Ø4.5 6 8.9 6.95 3.95 4.2 15 15 7.5 5.3 4.5 60 20 M4x16 17.94 19.86 0.1 0.08 0.08 0.17 1.45 QHW20CB 30 4.6 21.5 63 53 5 40 50.5 76.7 9.75 6 12 Ø6 8 10 9.5 6 6 20 17.5 9.5 8.5 6 60 20 M5x16 30 33.86 0.26 0.19 0.19 0.4 2.21 QHW20HB 30 4.6 21.5 63 53 5 40 65.2 91.4 17.1 6 12 Ø6 8 10 9.5 6 6 20 17.5 9.5 8.5 6 60 20 M5x16 35.7 42.31 0.31 0.27 0.27 0.52 2.21 QHW25CB 36 5.5 23.5 70 57 6.5 45 58 83.4 10.7 6 12 Ø7 8 14 10 6 5 23 22 11 9 7 60 20 M6x20 41.9 48.75 0.39 0.31 0.31 0.59 3.21 QHW25HB 36 5.5 23.5 70 57 6.5 45 78.6 104 21 6 12 Ø7 8 14 10 6 5 23 22 11 9 7 60 20 M6x20 50.61 60.94 0.5 0.45 0.45 0.8 3.21 QHW30CB 42 6 31 90 72 9 52 70 97.4 13.5 6.25 12 Ø9 8.5 16 10 6.5 6 28 26 14 12 9 80 20 M8x25 58.26 66.34 0.6 0.5 0.5 1.09 4.47 QHW30HB 42 6 31 90 72 9 52 93 120.4 25.75 6.25 12 Ø9 8.5 16 10 6.5 6 28 26 14 12 9 80 20 M8x25 70.32 88.45 0.83 0.89 0.89 1.44 4.47 QHW35CB 48 7.5 33 100 82 9 62 80 113.6 13 7.5 12 Ø9 10.1 18 13 8.5 6.5 34 29 14 12 9 80 20 M8x25 78.89 86.66 1.07 0.76 0.76 1.56 6.3 QHW35HB 48 7.5 33 100 82 9 62 105.8 139.4 25.9 7.5 12 Ø9 10.1 18 13 8.5 6.5 34 29 14 12 9 80 20 M8x25 95.23 115.55 1.45 1.33 1.33 2.06 6.3 QHW45CB 60 9.2 37.5 120 100 10 80 97 139.4 13 10 12.9 Ø11 15.1 22 15 8.5 10 45 38 20 17 14 105 22.5 M12x35 119.4 135.42 1.83 1.38 1.38 2.79 10.41 QHW45HB 60 9.2 37.5 120 100 10 80 128.8 171.2 28.9 10 12.9 Ø11 15.1 22 15 8.5 10 45 38 20 17 14 105 22.5 M12x35 144.13 180.56 2.47 2.41 2.41 3.69 10.41

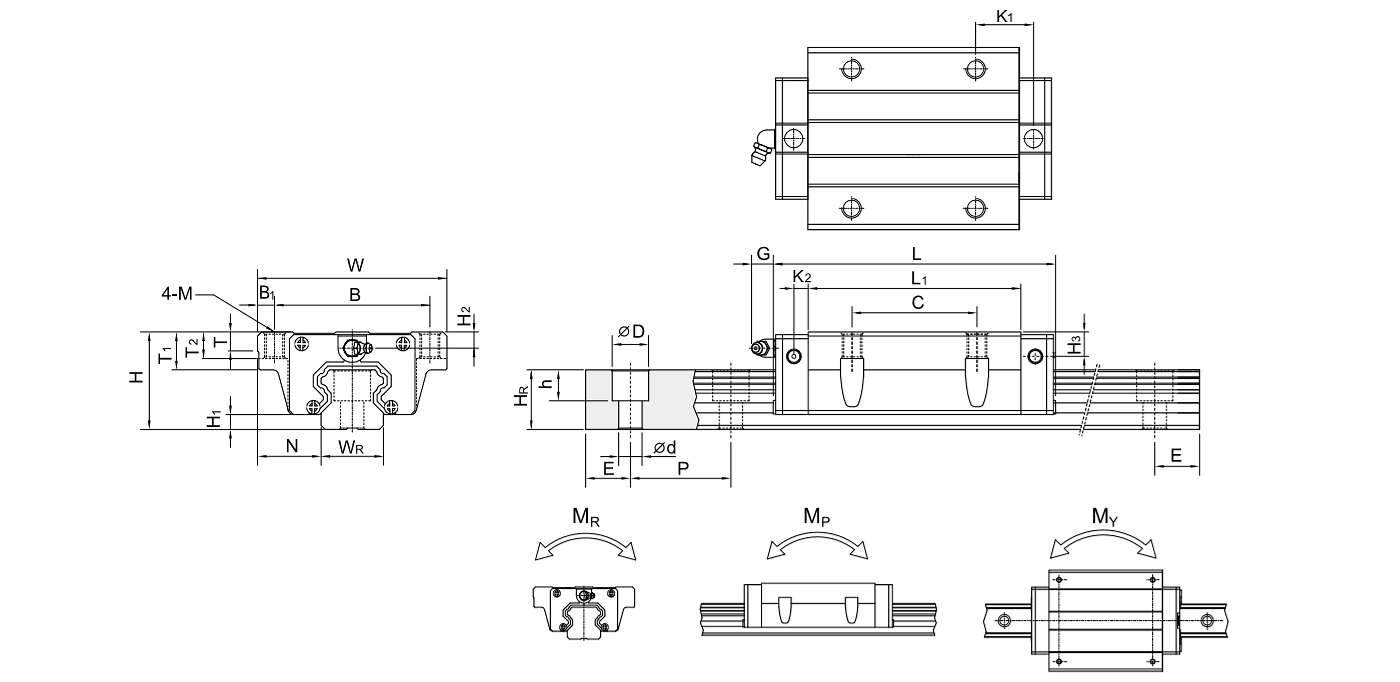

Model Dimensions of Assembly(mm) Dimensions of Block(mm) Dimensions of Rail(mm) Mounting Bolt for Rail Basic Dynamic Load Rating Basic Static Load Rating Static Rated Moment Weight H H1 N W B B1 C L1 L K1 K2 G M T T1 T2 H2 H3 WR HR D h d P E (mm) C(kN) C0(kN) MR(kN-m) MP(kN-m) MY(kN-m) Block(kg) Rail(kg/m) QHW15CC 24 4 16 47 38 4.5 30 39.4 61.4 8 5 5.3 M5 6 8.9 6.95 3.95 4.2 15 15 7.5 5.3 4.5 60 20 M4x16 17.94 19.86 0.1 0.08 0.08 0.17 1.45 QHW20CC 30 4.6 21.5 63 53 5 40 50.5 76.7 9.75 6 12 M6 8 10 9.5 6 6 20 17.5 9.5 8.5 6 60 20 M5x16 30 33.86 0.26 0.19 0.19 0.4 2.21 QHW20HC 30 4.6 21.5 63 53 5 40 65.2 91.4 17.1 6 12 M6 8 10 9.5 6 6 20 17.5 9.5 8.5 6 60 20 M5x16 35.7 42.31 0.31 0.27 0.27 0.52 2.21 QHW25CC 36 5.5 23.5 70 57 6.5 45 58 83.4 10.7 6 12 M8 8 14 10 6 5 23 22 11 9 7 60 20 M6x20 41.9 48.75 0.39 0.31 0.31 0.59 3.21 QHW25HC 36 5.5 23.5 70 57 6.5 45 78.6 104 21 6 12 M8 8 14 10 6 5 23 22 11 9 7 60 20 M6x20 50.61 60.94 0.5 0.45 0.45 0.8 3.21 QHW30CC 42 6 31 90 72 9 52 70 97.4 13.5 6.25 12 M10 8.5 16 10 6.5 6 28 26 14 12 9 80 20 M8x25 58.26 66.34 0.6 0.5 0.5 1.09 4.47 QHW30HC 42 6 31 90 72 9 52 93 120.4 25.75 6.25 12 M10 8.5 16 10 6.5 6 28 26 14 12 9 80 20 M8x25 70.32 88.45 0.83 0.89 0.89 1.44 4.47 QHW35CC 48 7.5 33 100 82 9 62 80 113.6 13 7.5 12 M10 10.1 18 13 8.5 6.5 34 29 14 12 9 80 20 M8x25 78.89 86.66 1.07 0.76 0.76 1.56 6.3 QHW35HC 48 7.5 33 100 82 9 62 105.8 139.4 25.9 7.5 12 M10 10.1 18 13 8.5 6.5 34 29 14 12 9 80 20 M8x25 95.23 115.55 1.45 1.33 1.33 2.06 6.3 QHW45CC 60 9.2 37.5 120 100 10 80 97 139.4 13 10 12.9 M12 15.1 22 15 8.5 10 45 38 20 17 14 105 22.5 M12x35 119.4 135.42 1.83 1.38 1.38 2.79 10.41 QHW45HC 60 9.2 37.5 120 100 10 80 128.8 171.2 28.9 10 12.9 M12 15.1 22 15 8.5 10 45 38 20 17 14 105 22.5 M12x35 144.13 180.56 2.47 2.41 2.41 3.69 10.41
