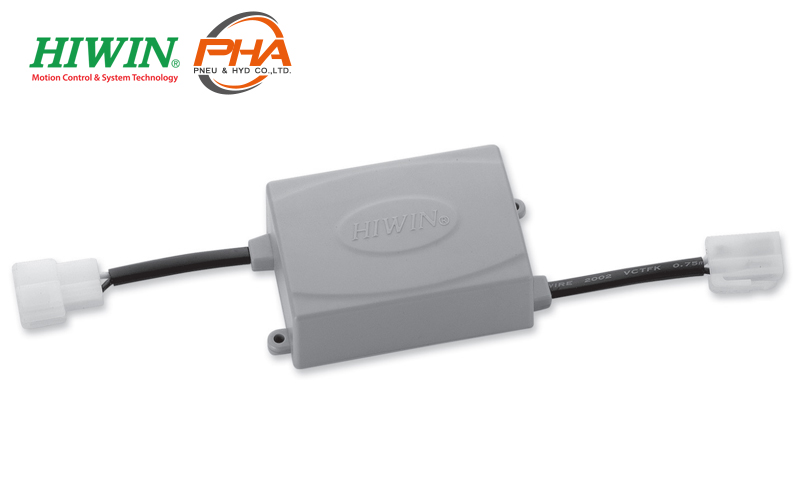

Hiwin Linear Actuator Controller - LAKC1-1
ไฮวิน Linear Actuator Controller - LAKC1-1
Hiwin Linear Actuator Controller - LAKC1-1 : is the interface that control actuator's trajectory, speed and positioning. Because of medical facilities are using DC linear actuator, rechargeable battery or rectifier is required. LAK series can provide software and function customized.
รายละเอียด (Detail) Hiwin Linear Actuator Controller - LAKC1-1
- Compact size
- Low cost
- Easy to use
- Multiple over-current settings available
- Fast reponse time
- Option
- IP66

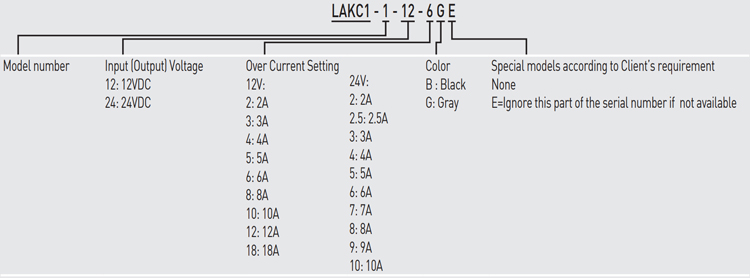

ตัวอย่างการเลือกรุ่น (Code) Hiwin Linear Actuator Controller - LAKC1-1
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator Controller - LAKC1-1
| Model | LAKC1-1 |
|---|---|
| Input voltage | 12/24 VDC |
| Output power | 12/24 VDC |
| Duty cycle | 10% |
| Protection | IP54 |
| Working temp. | 5 - 40 °C |

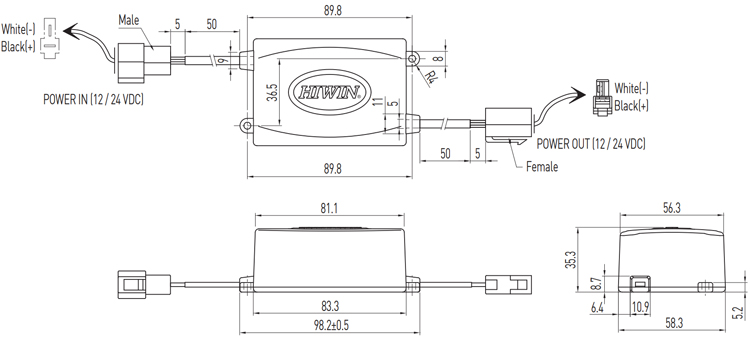

ขนาด (Dimensions) Hiwin Linear Actuator Controller - LAKC1-1
