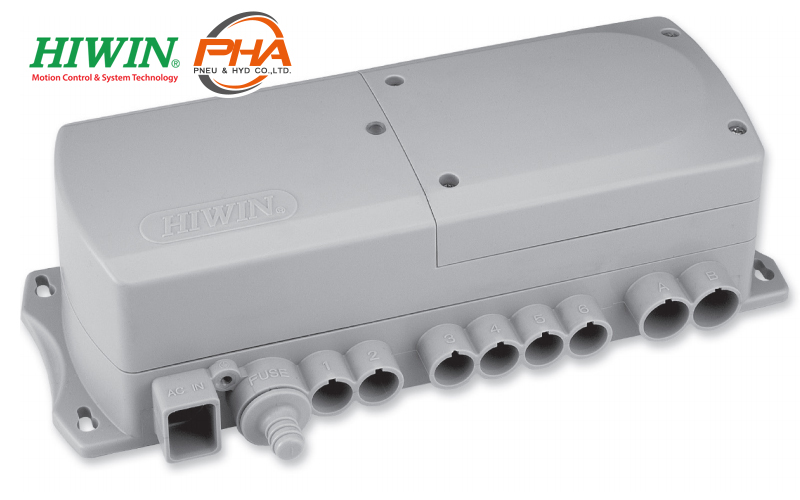

Hiwin Linear Actuator Controller - LAK6B
ไฮวิน Linear Actuator Controller - LAK6B
Hiwin Linear Actuator Controller - LAK6B : is the interface that control actuator's trajectory, speed and positioning. Because of medical facilities are using DC linear actuator, rechargeable battery or rectifier is required. LAK series can provide software and function customized.
รายละเอียด (Detail) Hiwin Linear Actuator Controller - LAK6B
- Controls 1 or 6 Linear Actuators
- Over load protection
- Soft-start
- Standard cable length: 4M
- Rechargeable battery
- Low battery indicator (alarm)
- Automatic energy saving
- Battery capacity 1.3Ah (12VDCx2)
- Mian fuse replaceable by external plug
- Spare fuse inside the fuse plug
- External ground connection
- LED power indication
- * Note : Simultaneous movement is not available for LAN3A/-2-3(24Q)
- * Note : Please charge battery for at least 8 hours before initial use.
- Option
- IP66
- Custom program

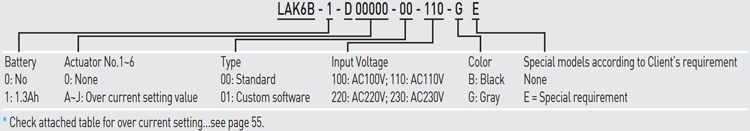

ตัวอย่างการเลือกรุ่น (Code) Hiwin Linear Actuator Controller - LAK6B
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator Controller - LAK6B
| Model | LAK6B |
|---|---|
| Input voltage | AC 100/110/220/230 V (50/60Hz) |
| Output power | 216VA (24VDC) max. |
| Duty cycle | 10% |
| Protection | IP54 |
| Working temp. | 5 - 40 °C |

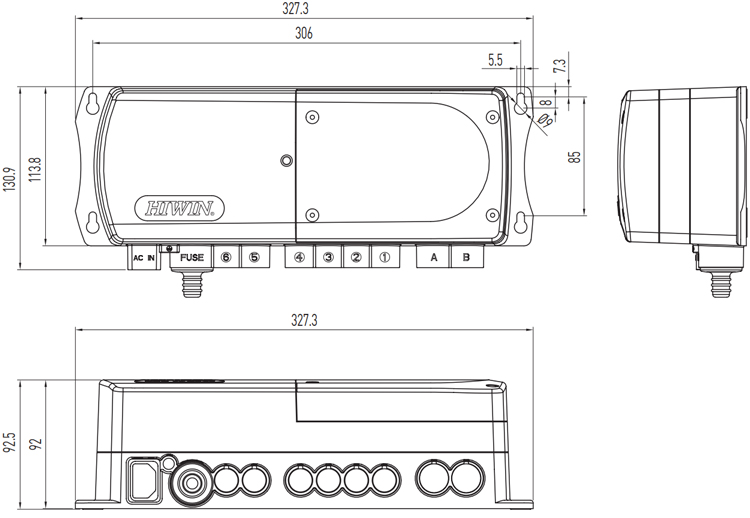

ขนาด (Dimensions) Hiwin Linear Actuator Controller - LAK6B
