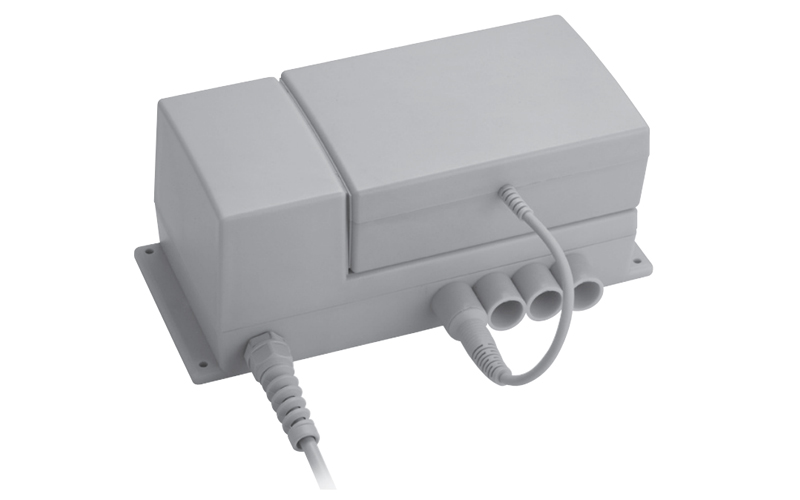

Hiwin Linear Actuator Controller - LAK2BN
ไฮวิน Linear Actuator Controller - LAK2BN
Hiwin Linear Actuator Controller - LAK2LR : is the interface that control actuator's trajectory, speed and positioning. Because of medical facilities are using DC linear actuator, rechargeable battery or rectifier is required. LAK series can provide software and function customized.
รายละเอียด (Detail) Hiwin Linear Actuator Controller - LAK2BN
- Controls 1 or 2 Linear Actuators
- Compact size
- Over load protection
- Soft - start / stop
- Standard cable length:4M
- Rechargeable Battery
- Low battery indicator (alarm)
- Battery capacity: 1.3Ah (12VDCx2) (Option: 2.9Ah, 12VDCx2)
- Electronic protection of the relays
- Note : Please charge battery for at least 8 hours before initial use.
- Option
- IP66
- Custom program
- Two axes move simultaneously
- Two axes move synchronously (Actuators must have feedback)

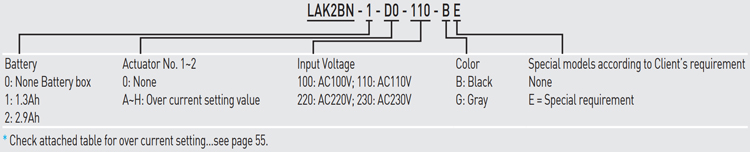

ตัวอย่างการเลือกรุ่น (Code) Hiwin Linear Actuator Controller - LAK2BN
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator Controller - LAK2BN
| Model | LAK2BN |
|---|---|
| Input voltage | AC 100/110/220/230 V (50/60Hz) |
| Output power | 144VA (24VDC) max. |
| Duty cycle | 10% |
| Protection | IP54 |
| Working temp. | 5 - 40 °C |

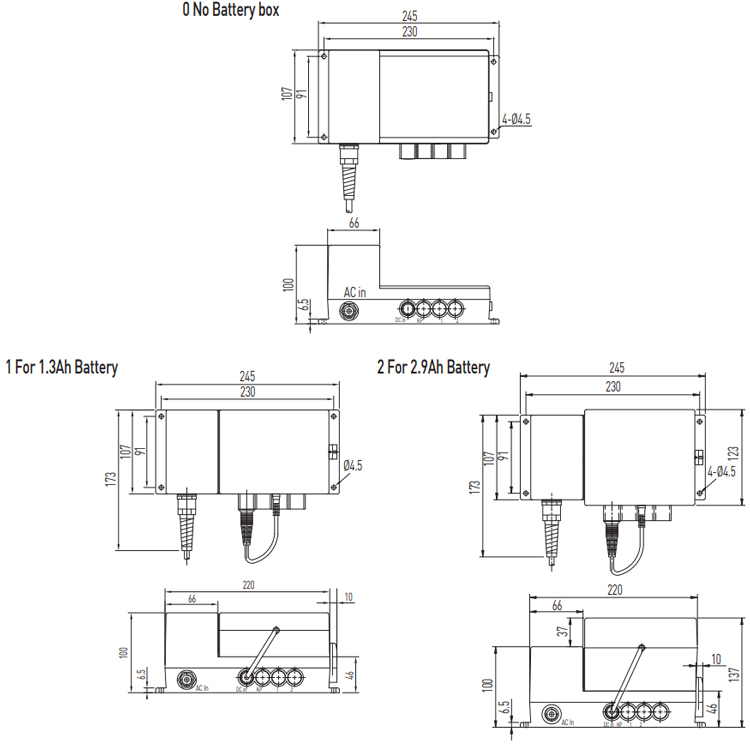

ขนาด (Dimensions) Hiwin Linear Actuator Controller - LAK2BN
