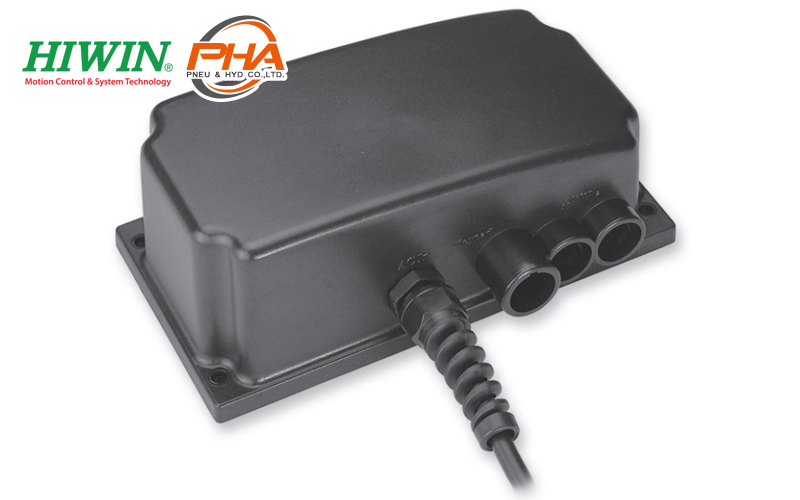

Hiwin Linear Actuator Controller - LAK2
ไฮวิน Linear Actuator Controller - LAK2
Hiwin Linear Actuator Controller - LAK2 : is the interface that control actuator's trajectory, speed and positioning. Because of medical facilities are using DC linear actuator, rechargeable battery or rectifier is required. LAK series can provide software and function customized.
รายละเอียด (Detail) Hiwin Linear Actuator Controller - LAK2
- Controls 1 or 2 Linear Actuators
- Over load protection
- Standard cable length: AC:4M / DC:1M
- Electronic protection of the relays
- Option
- IP66
- DC 12V In&Out
- DC 24V In&Out
- UL version only for AC 120V input (Max. Output 24V/6A)

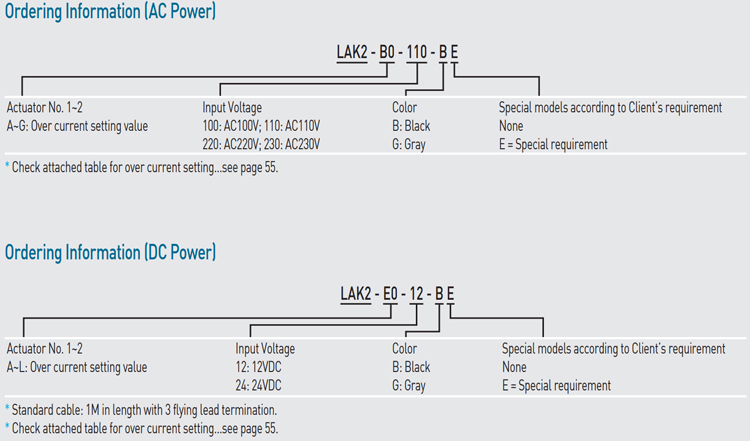

ตัวอย่างการเลือกรุ่น (Code) Hiwin Linear Actuator Controller - LAK2
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator Controller - LAK2
| Model | LAK2 |
|---|---|
| Input voltage | AC 100/110/220/230 V (50/60Hz) |
| Output power | 108VA (24VDC) max. |
| Duty cycle | 10% |
| Protection | IP54 |
| Working temp. | 5 - 40 °C |

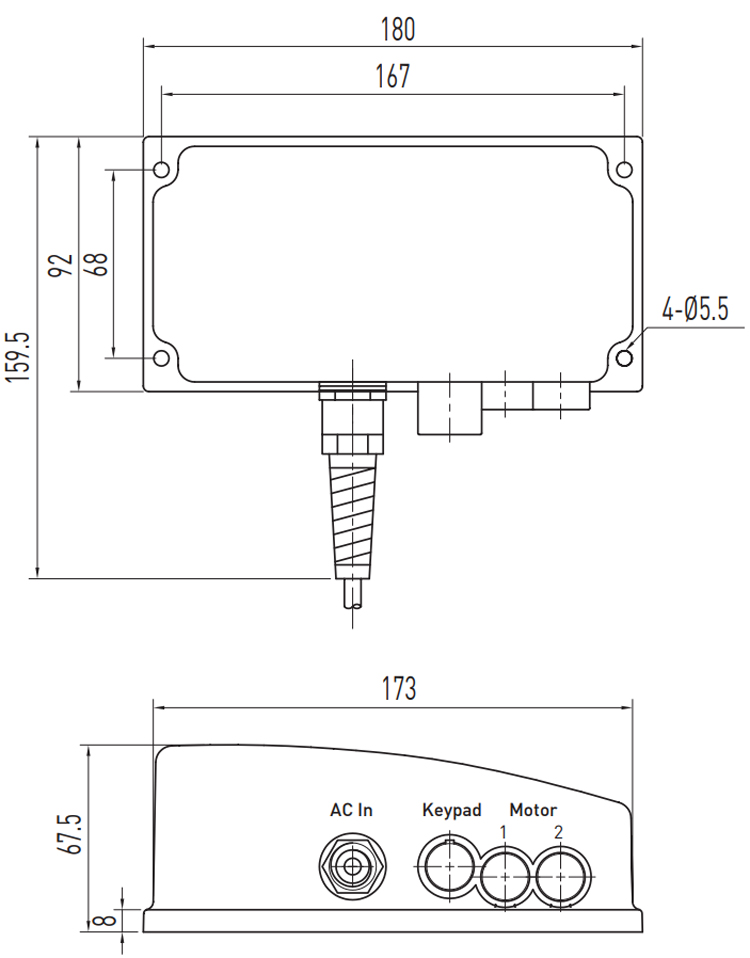

ขนาด (Dimensions) Hiwin Linear Actuator Controller - LAK2
