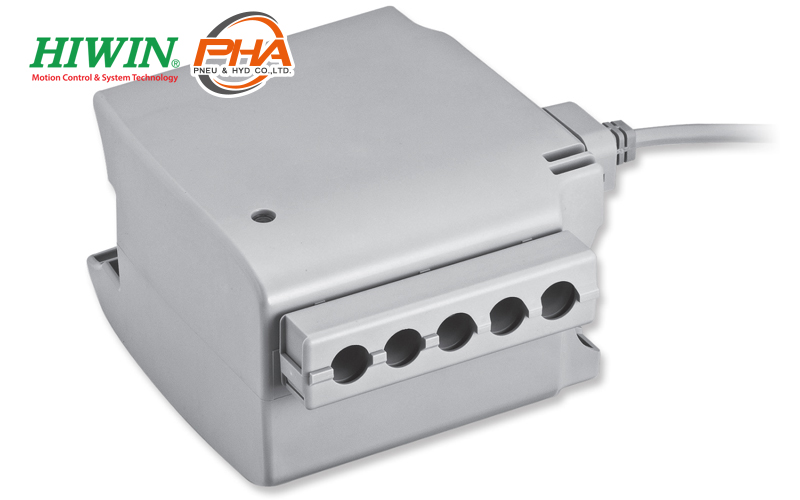

Hiwin Linear Actuator Controller - LAK4D
ไฮวิน Linear Actuator Controller - LAK4D
Hiwin Linear Actuator Controller - LAK4D : is the interface that control actuator's trajectory, speed and positioning. Because of medical facilities are using DC linear actuator, rechargeable battery or rectifier is required. LAK series can provide software and function customized.
รายละเอียด (Detail) Hiwin Linear Actuator Controller - LAK4D
- Controls 1 or 4 Linear Actuators
- Standard cable length: 4M
- Detachable length: 4M
- Detachable retainer (protection against accidental unplugging)
- Removable AC power cable.
- LED power display.
- Can be mounted directly on the LAN5. (LAN5 min. RL must be greater than 300mm)
- Notes: LAK3D without over current protection.
- Option
- IP66
- Output power: 144VA, 216VA
- UL version

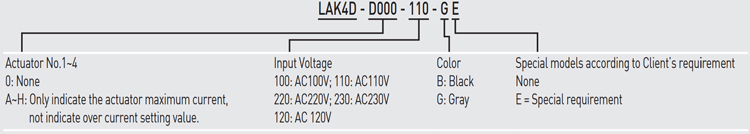

ตัวอย่างการเลือกรุ่น (Code) Hiwin Linear Actuator Controller - LAK4D
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator Controller - LAK4D
| Model | LAK4D |
|---|---|
| Input voltage | AC 100/110/220/230 V (50/60Hz) |
| Output power | 72.5VA (24VDC) max. |
| Duty cycle | 10% |
| Protection | IP54 |
| Working temp. | 5 - 40 °C |

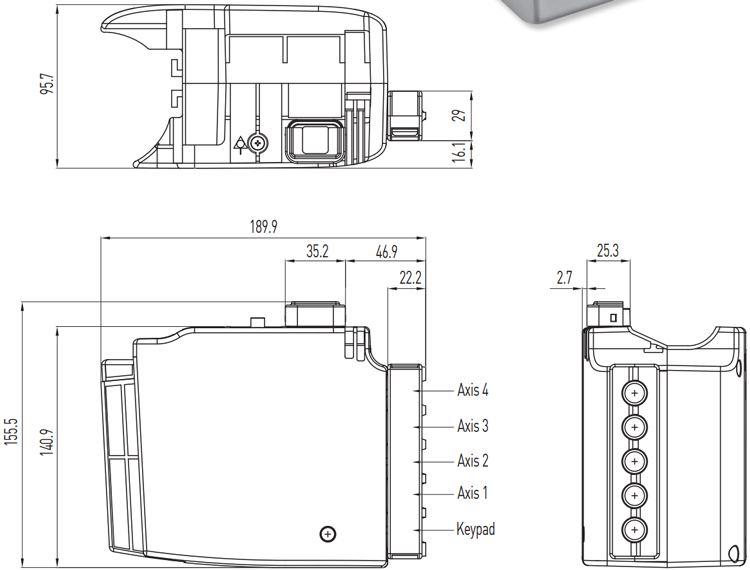

ขนาด (Dimensions) Hiwin Linear Actuator Controller - LAK4D
