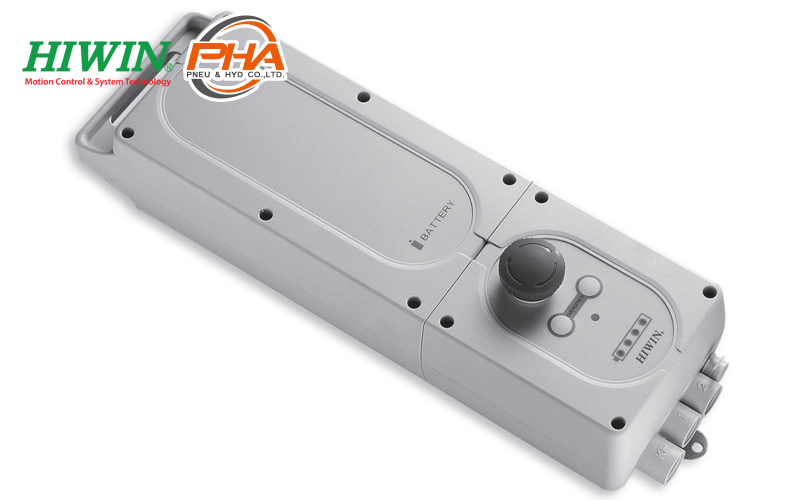

Hiwin Linear Actuator Controller - LAK2J
ไฮวิน Linear Actuator Controller - LAK2J
Hiwin Linear Actuator Controller - LAK2J : is the interface that control actuator's trajectory, speed and positioning. Because of medical facilities are using DC linear actuator, rechargeable battery or rectifier is required. LAK series can provide software and function customized.
รายละเอียด (Detail) Hiwin Linear Actuator Controller - LAK2J
- Portable design (operated by battery)
- Control 1 to 2 linear Actuators
- Emergency stop button
- Emergency operation through front panel (only for axis 1)
- Over load protection
- Sodt - start / stop
- Battery rechargeable via LAKCH charger
- Automatic alarm when the battery is low
- Automatic Energy Saving Mode
- Battery capacity 4.5Ah (12VDC*2)
- LED for power indication
- * Note : Please charge the battery for at least 12 hours before the initial use
- Option
- IP65
- Custom program
- UL version

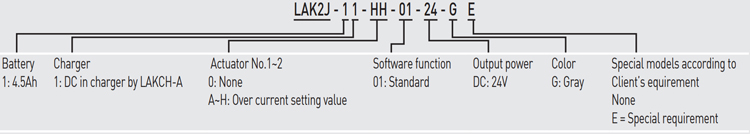

ตัวอย่างการเลือกรุ่น (Code) Hiwin Linear Actuator Controller - LAK2J
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator Controller - LAK2J
| Model | LAK2J |
|---|---|
| Input voltage | DC 24V |
| Duty cycle | 10% |
| Protection | IP54 |
| Working temp. | 5 - 40 °C |

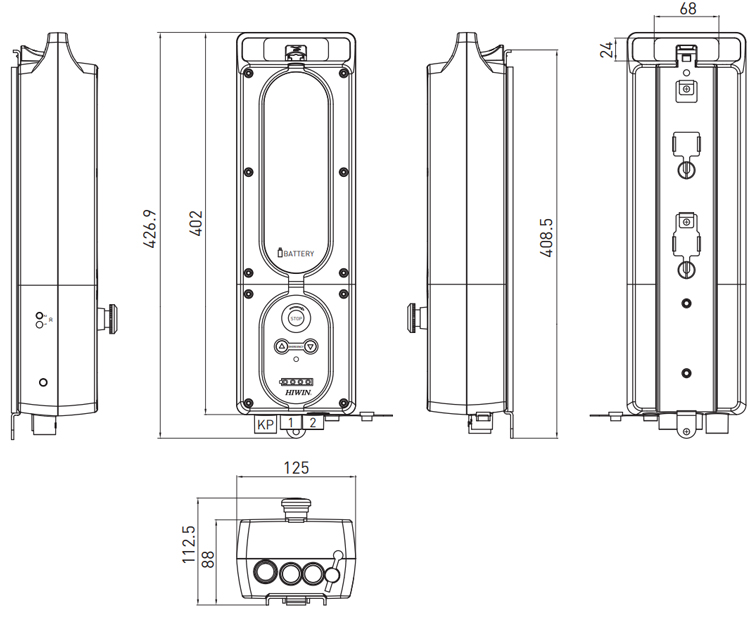

ขนาด (Dimensions) Hiwin Linear Actuator Controller - LAK2J
