Hiwin Linear Actuator Controller - LAK2D
ไฮวิน Linear Actuator Controller - LAK2D
Hiwin Linear Actuator Controller - LAK2D : is the interface that control actuator's trajectory, speed and positioning. Because of medical facilities are using DC linear actuator, rechargeable battery or rectifier is required. LAK series can provide software and function customized.
รายละเอียด (Detail) Hiwin Linear Actuator Controller - LAK2D
- Controls 1 or 2 Linear Actuators
- Standard cable length: 4M
- Overload protection
- During an emergency power loss, please insert 2-9V Valkaline batteries to lower the actuators. (Protection class is IP54 when LAK2D is operated with batteries)
- Can be mounted directly on the LAM3 or LAN5
- *There is no battery charge function, the 9V batteries are used for emergencies only.
- Option
- IP66

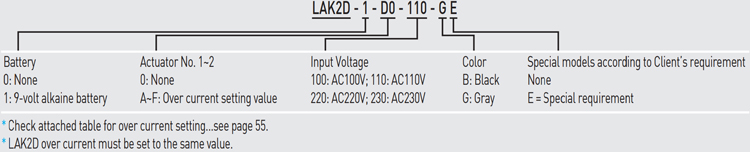

ตัวอย่างการเลือกรุ่น (Code) Hiwin Linear Actuator Controller - LAK2D
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator Controller - LAK2D
| Model | LAK2D |
|---|---|
| Input voltage | AC 100/110/220/230 V (50/60Hz) |
| Output power | 108VA (24VDC) max. |
| Duty cycle | 10% |
| Protection | IP54 |
| Working temp. | 5 - 40 °C |

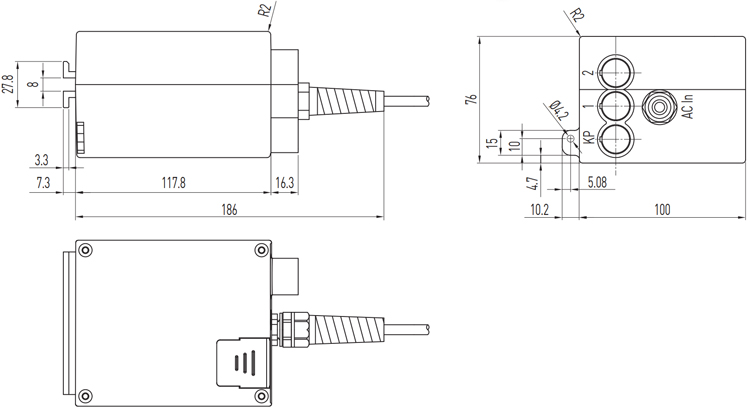

ขนาด (Dimensions) Hiwin Linear Actuator Controller - LAK2D
