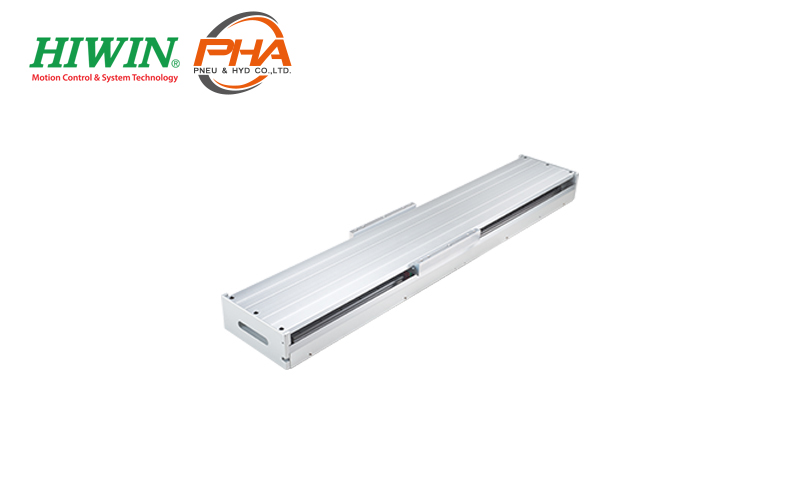

Hiwin Single Axis Standard - SSA
ไฮวิน Single Axis Standard - SSA
Hiwin Single Axis Standard - SSA : HIWIN single positioning stage provide fast, accurate positioning, linear direct drive motor and can reach long stroke applications, in addition to providing metal cover, dust jacket and other optional items to achieve dust protection requirements. Choose cable chain type, horizontal or vertical wiring that uses extension cords not to scatter outside, make the machine look tidy.
รายละเอียด (Detail) Hiwin Single Axis Standard - SSA
- Short delivery
- User friendly
- Best price-performance ratio
- Efficient drive included
- High acceleration/velocity,
- which ball screw system cannot achieve
- Long stroke supported
- Multiple forcers supported

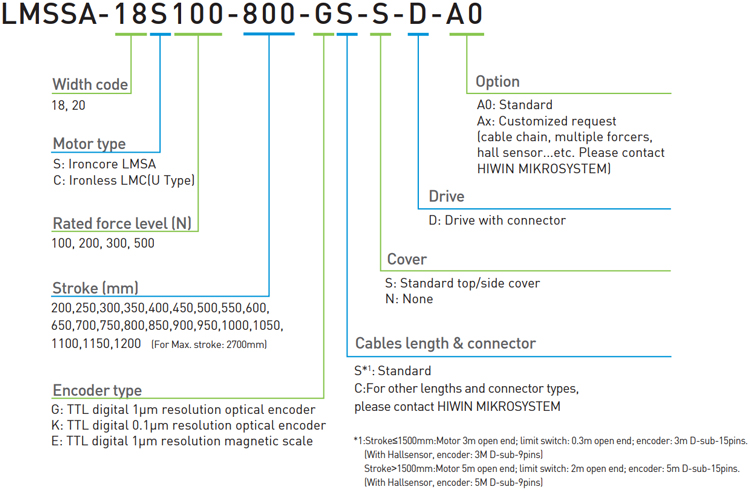

ตัวอย่างการเลือกรุ่น (Code) Hiwin Single Axis Standard - SSA

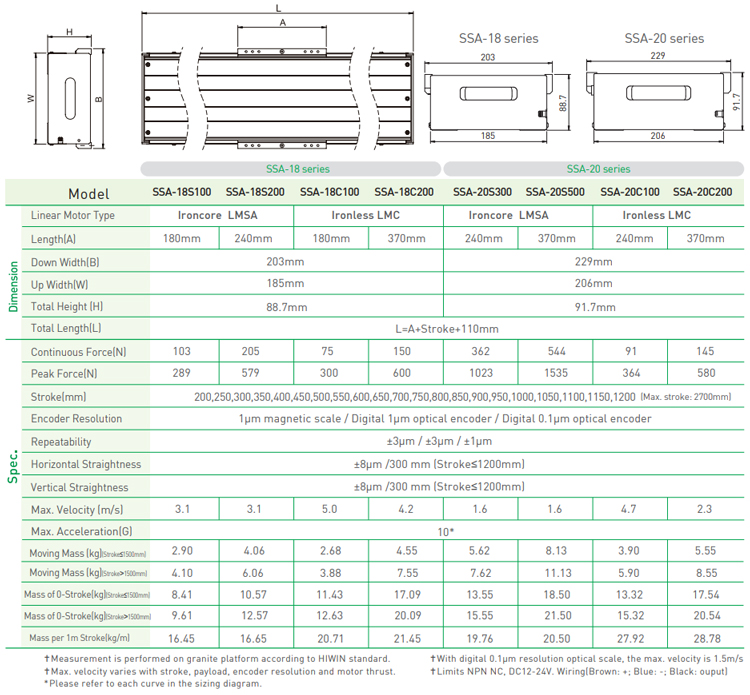

รายละเอียดทางเทคนิค (Specifications) Hiwin Single Axis Standard - SSA
