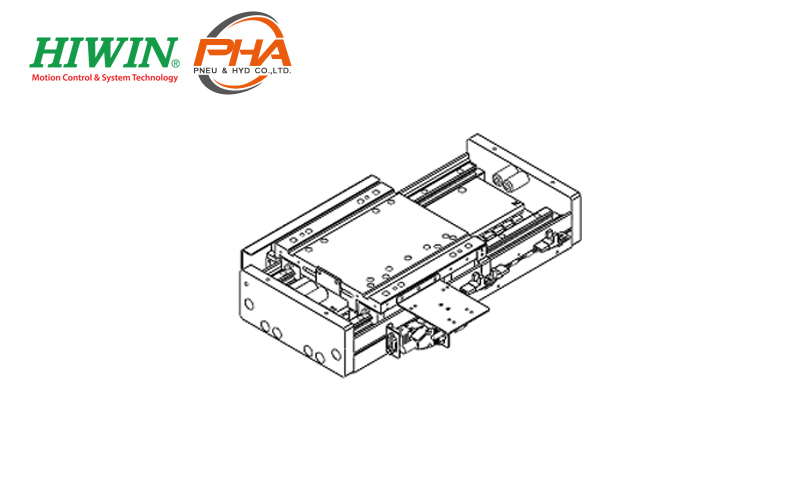

Hiwin Single Axis Standard - LMC

ไฮวิน Single Axis Standard - LMC

Hiwin Single Axis Standard - LMC : HIWIN single positioning stage provide fast, accurate positioning, linear direct drive motor and can reach long stroke applications, in addition to providing metal cover, dust jacket and other optional items to achieve dust protection requirements. Choose cable chain type, horizontal or vertical wiring that uses extension cords not to scatter outside, make the machine look tidy.

PDF : Hiwin Single Axis Standard - LMC

---

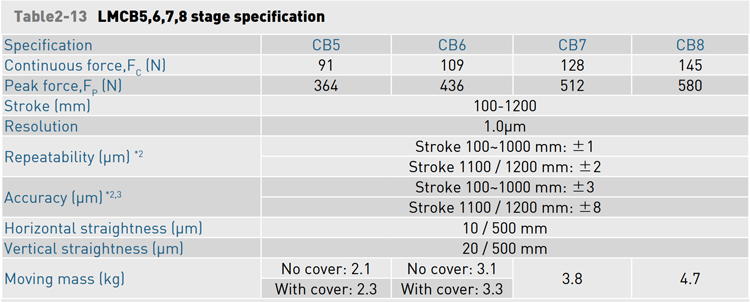

รายละเอียด (Detail) Hiwin Single Axis Standard - LMC

• Max. acceleration 100 m/s² (no load).
• Length up to 4,000 mm.
• Max. peak force 724 N.
• Low cost,small size,high performance.
• Suitable for clean room.

---
