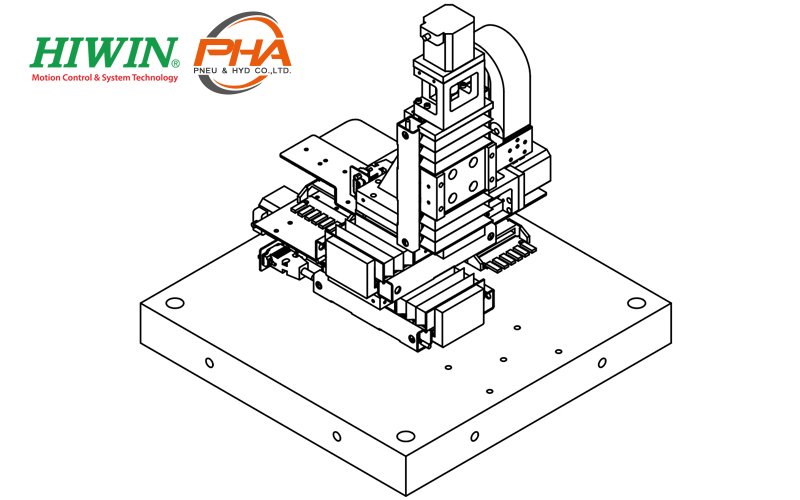

Hiwin Multi-axes Customization - RBC

ไฮวิน Multi-axes Customization - RBC

Hiwin Multi-axes Customization - RBC : Mechanical component testing equioment

PDF : Hiwin Multi-axes Customization - RBC

---

รายละเอียด (Detail) Hiwin Multi-axes Customization - RBC

• Z-axis designed with KK series ballscrew driven stage module significantly reduces system cost.
• Use dust-proof design.
• Three-dimensional motion.
• Simple structure design.

---

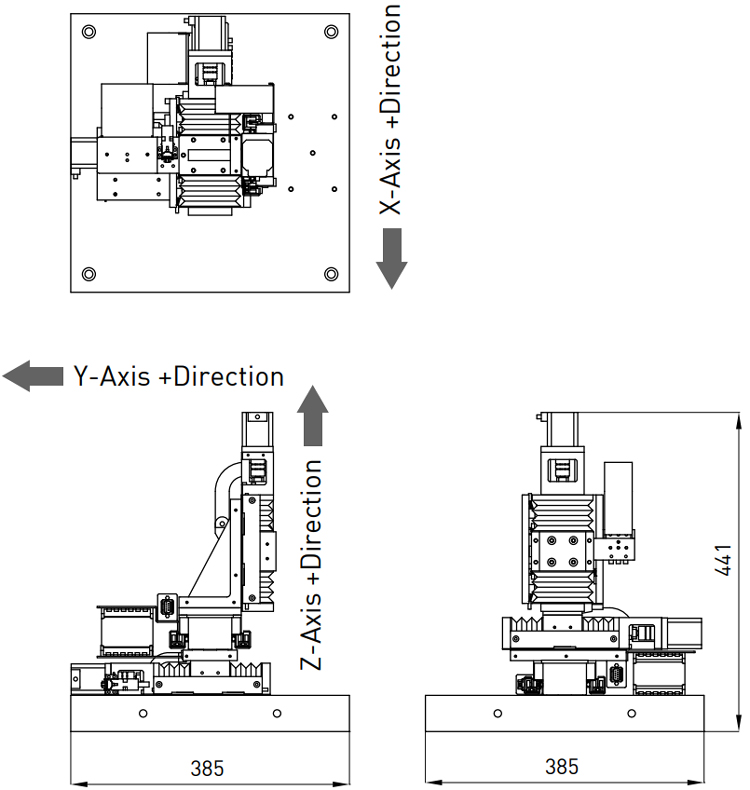

Stage type	KK6010-KK6010-KK6005-150-150-150
Motor Type	HIWIN AC Servo motor
Stroke(mm)	X-axis : 55, Y-axis : 55, Z-axis : 55
Ball screw lead(mm)	X-axis : 10, Y-axis : 10, Z-axis : 5
Repeatability(µm)	±2(uni-direction, with HIWIN solution)
Accuracy grade	C
Max. Acceleration(m/s2)	X-axis : 5, Y-axis : 5, Z-axis : 5(HIWIN 100W, with payload)
Max. Velocity(m/s)	X-axis : 0.5, Y-axis : 0.5, Z-axis : 0.2(HIWIN 100W, with payload)
Payload(kg)	1
Stage orientation	Horizontal

Note : All specifications can be designed according to customer demand.
