Hiwin Multi-axes Customization - MLB
ไฮวิน Multi-axes Customization - MLB

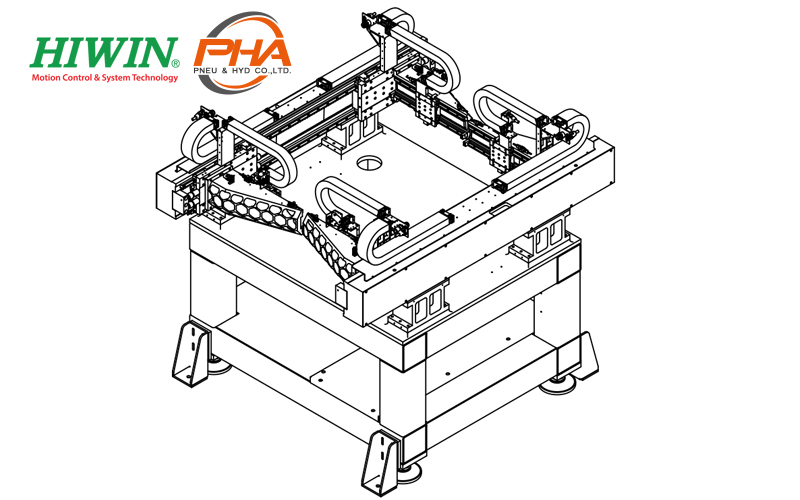

Hiwin Multi-axes Customization - MLB : Precision component assembly applications, electronic components plug-in equipment.
รายละเอียด (Detail) Hiwin Multi-axes Customization - MLB
- Multi-axis simultaneously motion.
- Good working efficiency.
- High stiffness honeycomb beam design.
- High acceleration and deceleration motion.
- With excellent setting time.
- Can be used with automated pick and place conveying mechanism.
- Can be equipped with ironless or ironcore motor.

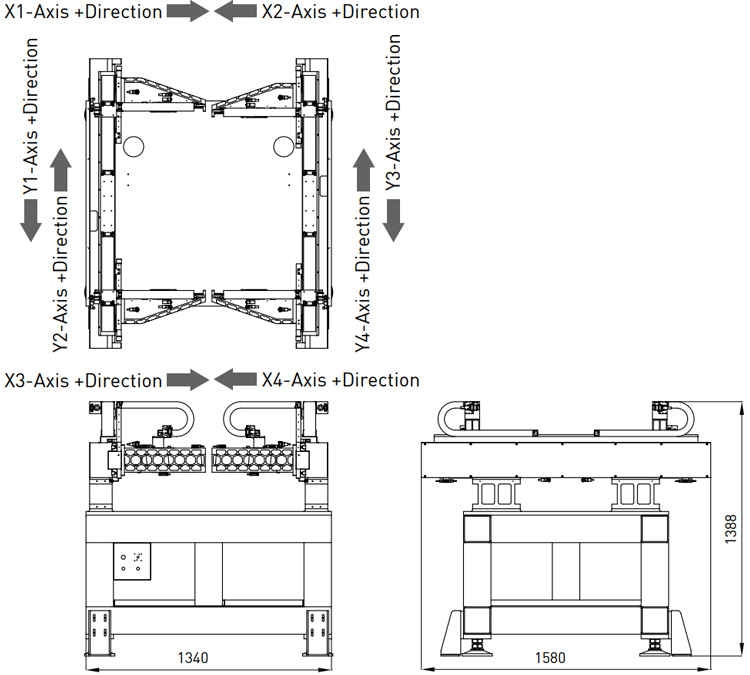

ขนาด (Dimensions) Hiwin Multi-axes Customization - MLB
รายละเอียดทางเทคนิค (Specifications) Hiwin Gantry Structure Customization - MLB
| Stage type | LMX8C-SA11F13-264-632 |
|---|---|
| Motor Type | Ironcore (/Ironless) motor |
| Stroke(mm) | X-axis : 364, Y-axis : 632 |
| Peak Force(N)/Continuous Force(N) | X-axis : 289/121, Y-axis : 1380/510 |
| Repeatability(µm) | X-axis : ±1, Y-axis : ±2(with HIWIN solution) |
| Accuracy(µm) | X-axis : ±3, Y-axis : ±5(after error mapping) |
| Max. Acceleration(m/s2) | X-axis : ±20, Y-axis : ±30(with payload) |
| Max. Velocity(m/s) | X-axis : 1, Y-axis : 1(with payload) |
| Horizontal Straightness(µm) | ±10 |
| Orthogonality(arc-sec) | ±10 |
| Payload(kg) | 1 |
| Stage orientation | Horizontal |
Note : All specifications can be designed according to customer demand.
