Hiwin Robot RS410-800-200-LU
แขนหุ่นยนต์ไฮวิน Scara RS410-800-200-LU
Possessing high precision and flexibility, a rotary axis can be added to the joint-end to increase the degree of freedom. Different end-effectors can be incorporated to achieve high precision assembly or rapid planar machining. Applications Loading/unloading, packaging, arranging, assembly, dispensing, stacking and inspection
-

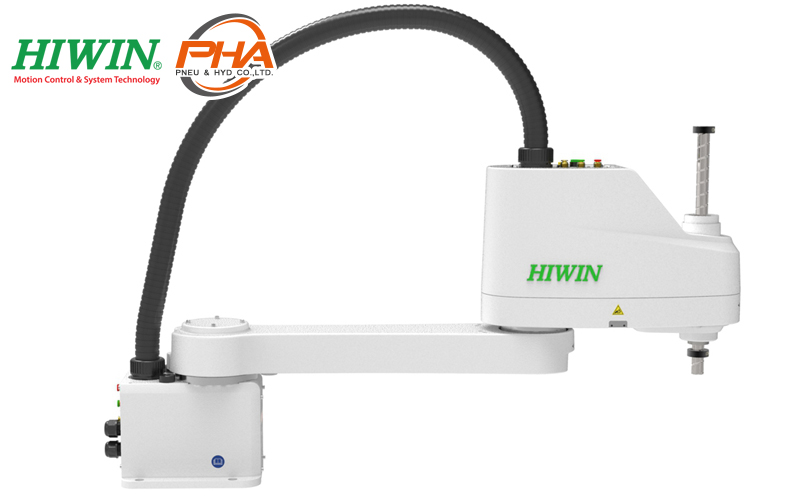

Hiwin Robot Scara RS410-800-200-LU (1)
-

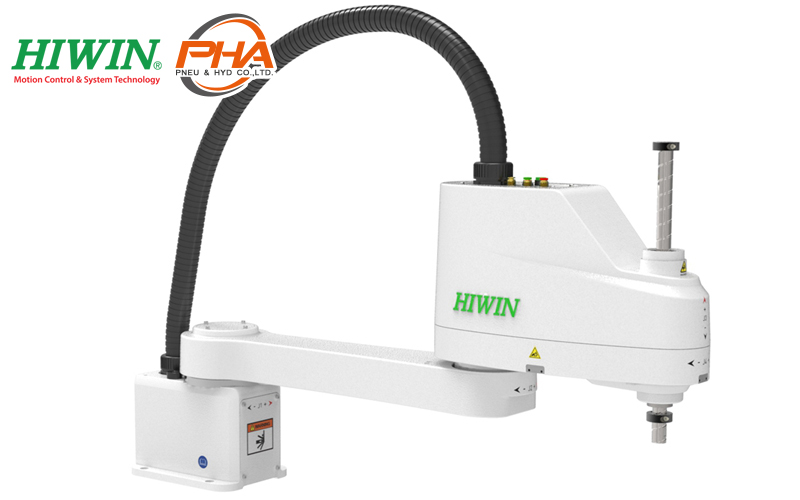

Hiwin Robot Scara RS410-800-200-LU (2)
-

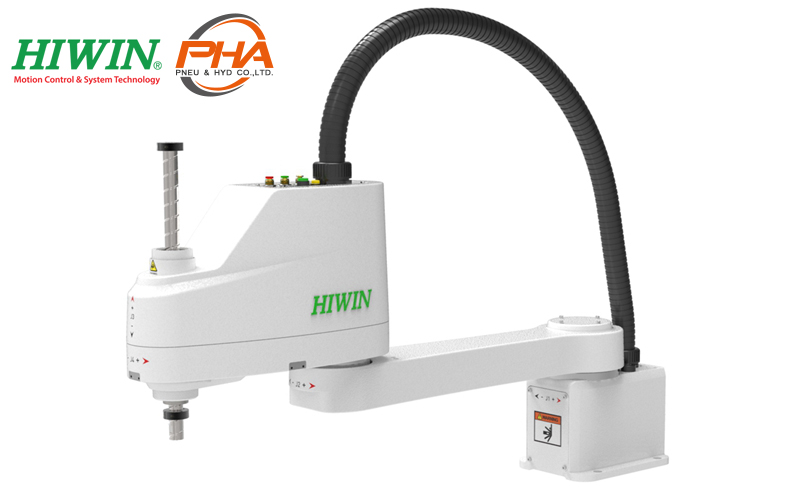

Hiwin Robot Scara RS410-800-200-LU (3)
-

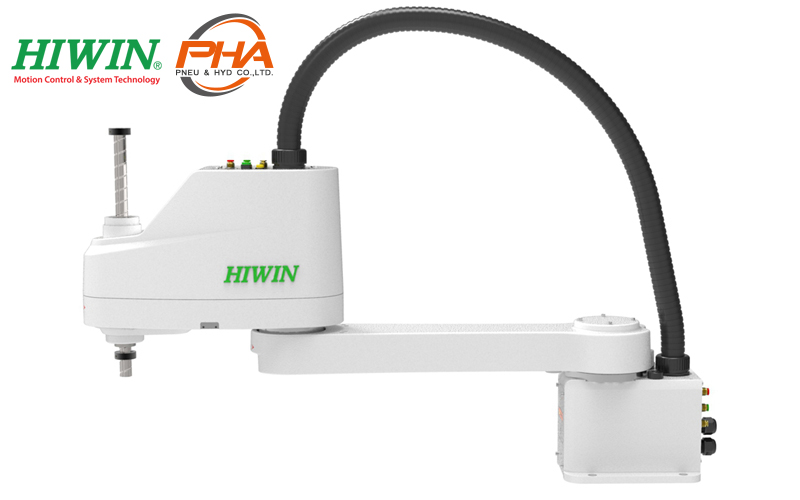

Hiwin Robot Scara RS410-800-200-LU (4)
ตัวอย่างการเลือกรุ่น (Code) Hiwin Robot RS410-800-200-LU
- Series RS410 : SCARA Robot with 10kg Payload
- Maximum Reach Radius 800 : Total Arm Length 800mm
- J3 Working Range 200 : 200mm Ball Spline
- Identification Code LU : Series
รายละเอียดทางเทคนิค (Specifications) Hiwin Robot RS410-800-200-LU
| MODEL | Unit | Specification | |
|---|---|---|---|
| Model Name | - | RS410-800-X00-LU | |
| Installation | - | Floor | |
| Degrees of Freedom | axis | 4 | |
| Rated Payload | kg | 5 | |
| Maximun Payload | 10 | ||
| Arm Length | J1+J2 | mm | 800 mm |
| J1 | 525 mm | ||
| J2 | 275 mm | ||
| Maximum Motion Range | J1 | deg | ±130 |
| J2 | ±150 | ||
| J3 | mm | 200/400 | |
| J4 | deg | ±360 | |
| Repeatability | J1+J2 | mm | ±0.025 |
| J3 | mm | ±0.01 | |
| J4 | deg | ±0.01 | |
| Protection Rating | - | IP20 | |
| Applicable Controller | - | RC4 | |
