Hiwin Robot RS405-400-400-LU
แขนหุ่นยนต์ไฮวิน Scara RS405-400-400-LU
Possessing high precision and flexibility, a rotary axis can be added to the joint-end to increase the degree of freedom. Different end-effectors can be incorporated to achieve high precision assembly or rapid planar machining. Applications Loading/unloading, packaging, arranging, assembly, dispensing, stacking and inspection
-

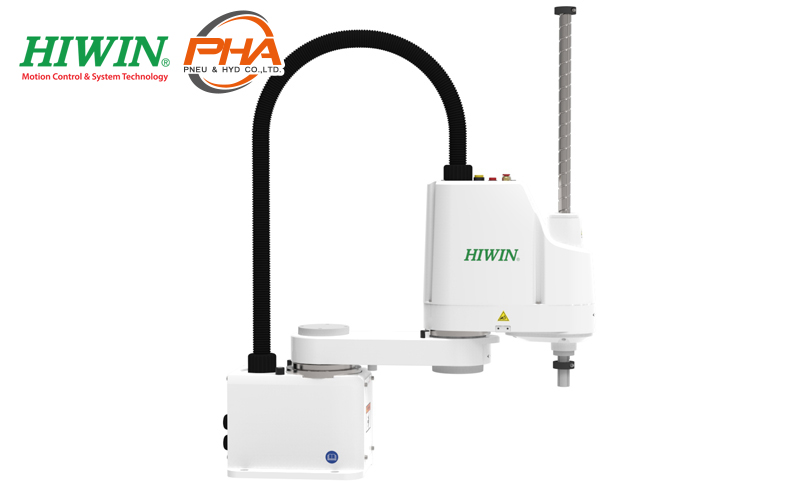

Hiwin Robot Scara RS405-400-400-LU (1)
-

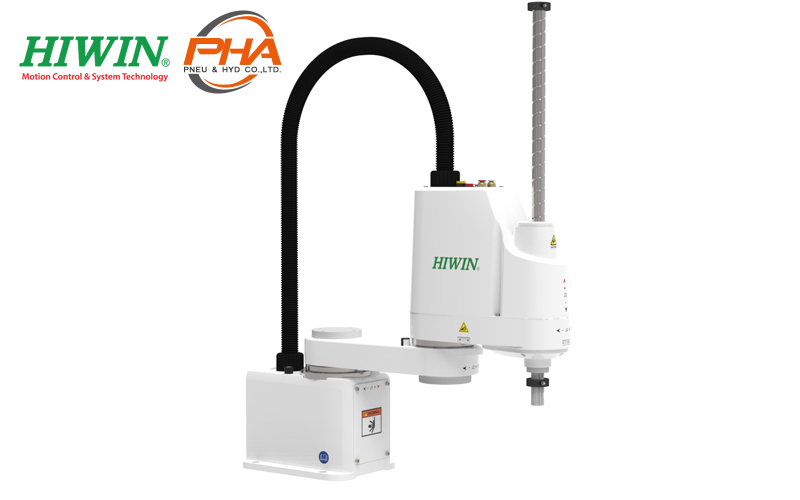

Hiwin Robot Scara RS405-400-400-LU (2)
-

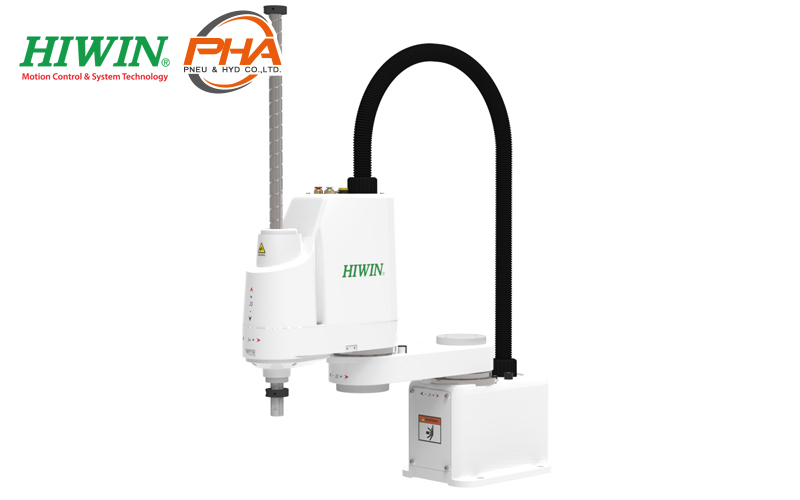

Hiwin Robot Scara RS405-400-400-LU (3)
-

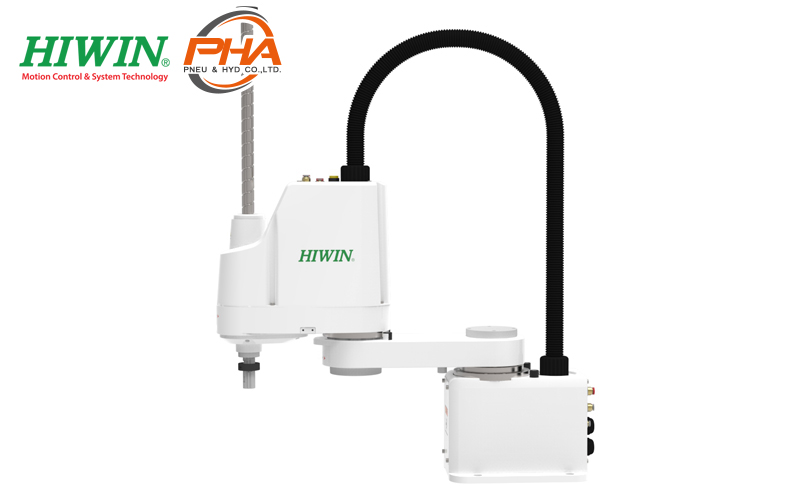

Hiwin Robot Scara RS405-400-400-LU (4)
ตัวอย่างการเลือกรุ่น (Code) Hiwin Robot RS405-400-400-LU
- Series RS405 : SCARA Robot with 5kg Payload
- Maximum Reach Radius 400 : Total Arm Length 400mm
- J3 Working Range 400 : 400mm Ball Spline
- Identification Code LU : Series
รายละเอียดทางเทคนิค (Specifications) Hiwin Robot RS405-400-400-LU
| MODEL | Unit | Specification | |
|---|---|---|---|
| Model Name | - | RS405-400-400-LU | |
| Installation | - | Floor | |
| Degrees of Freedom | axis | 4 | |
| Rated Payload | kg | 2 | |
| Maximun Payload | 5 | ||
| Arm Length | J1+J2 | mm | 400 mm |
| J1 | 225 mm | ||
| J2 | 175 mm | ||
| Maximum Motion Range | J1 | deg | ±130 |
| J2 | ±130 | ||
| J3 | mm | 200/400 | |
| J4 | deg | ±360 | |
| Repeatability | J1+J2 | mm | ±0.02 |
| J3 | mm | ±0.01 | |
| J4 | deg | ±0.01 | |
| Protection Rating | - | IP20 | |
| Applicable Controller | - | RC4 | |
