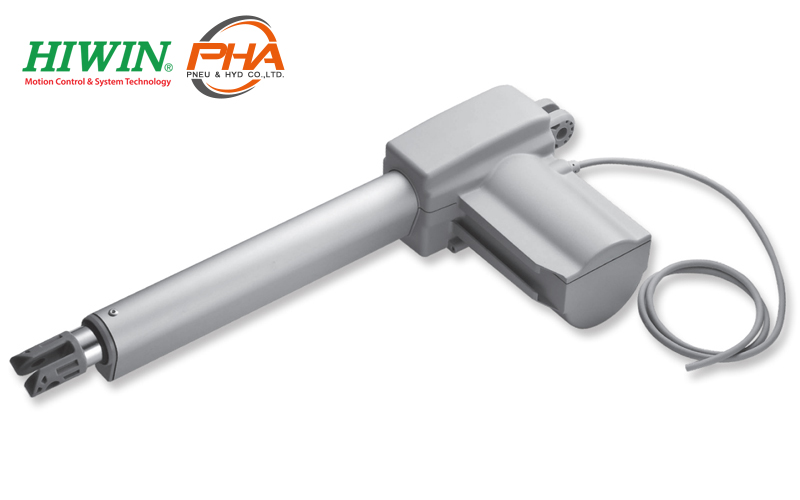

Hiwin Linear Actuator - LAN5
ไฮวิน Linear Actuator - LAN5
Hiwin Linear Actuator - LAN5 : belongs to ACME screw type, low noise, max thrust is 8000N. It has internal safety devices, the back fixture seat can turn many kinds of degrees to choose from according to diffecent demands. The internal structure is designed for the applicability to be combined with LAK2D and LAK4D control box.
The actuator has quick release function and protection degree of which can reach up to IP66.
รายละเอียด (Detail) Hiwin Linear Actuator - LAN5
- Screw type : ACME
- Weight (Stroke with 200mm) : 1.96kg
- Protection : IP54
- Compatible countroller : Compatible with all controllers (*Notice the type of connector: Audio/DIN 4pin)
- Working temp. : 5 - 40 °C
- Option
- Hall sensor
- Safety nut
- Mechanical Spline (push only)
- Back fixture turned 0°, 45°, 90°, 135°
- IP65; IP66
- Quick release (For LAN5-3,LAN5-4 only)
- UL version (Only 24VDC Motor)
- Plug: DIN4PIN plug / Stereo plug / Mono plug

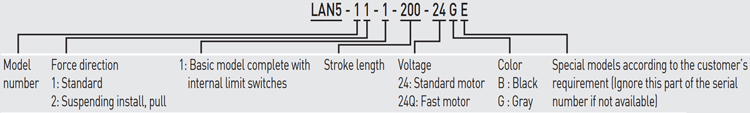

ตัวอย่างการเลือกรุ่น (Code) Hiwin Linear Actuator - LAN5
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator - LAN5
| Model | Thrust max. (N) | Pulling max. (N) | Holding max. (N) | Speed (mm/s) | Standard stroke (mm) : s | Duty cycle % | Current max (A) | Duty cycle % | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Load max | Load 0 | 24VDC | |||||||||||
| LAN5-1 | 8000 | 4000 | 6000 | 2 | 3.5 | 100 | 150 | 200 | - | - | 10 | 5 | 0.08 |
| LAN5-2 | 6000 | 4000 | 5000 | 3 | 4.5 | 100 | 150 | 200 | 250 | - | 10 | 4.5 | 0.10 |
| LAN5-3 | 4000 | 3000 | 4000 | 4 | 5.5 | 100 | 150 | 200 | 250 | 300 | 10 | 4 | 0.14 |
| LAN5-4 | 3000 | 2000 | 1500 | 6 | 9 | 100 | 150 | 200 | 250 | 300 | 10 | 4 | 0.22 |
| Model | Thrust max. (N) | Pulling max. (N) | Holding max. (N) | Speed (mm/s) | Standard stroke (mm) : s | Duty cycle % | Current max (A) | Duty cycle % | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Load max | Load 0 | 24VDC | |||||||||||
| LAN5-1 | 7000 | 4000 | 6000 | 5 | 7 | 100 | 150 | 200 | - | - | 10 | 8 | 0.08 |
| LAN5-2 | 6000 | 4000 | 5000 | 7 | 9 | 100 | 150 | 200 | 250 | - | 10 | 8 | 0.10 |
| LAN5-3 | 4000 | 3000 | 4000 | 9 | 11 | 100 | 150 | 200 | 250 | 300 | 10 | 6 | 0.14 |
| LAN5-4 | 3000 | 2000 | 1500 | 14 | 19 | 100 | 150 | 200 | 250 | 300 | 10 | 6 | 0.22 |
- *Min input power = Voltage x Current max.
- When the stroke of LAN5-4 is between 250mm and 300mm, refer to the diagram on the right for max. load.
- LAN5-3 24V Quick release Holding max. 3000N
- LAN5-4 24V Quick release Holding max. 1000N

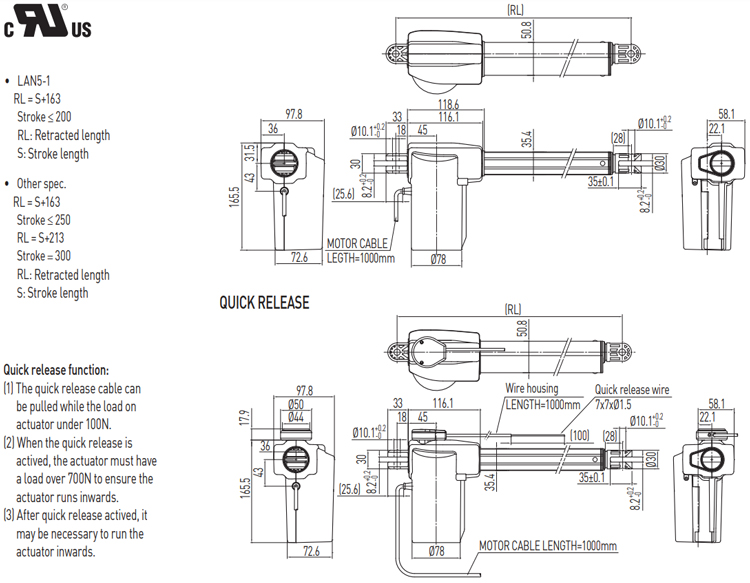

ขนาด (Dimensions) Hiwin Linear Actuator - LAN5
