Hiwin Linear Actuator - LAN4
ไฮวิน Linear Actuator - LAN4

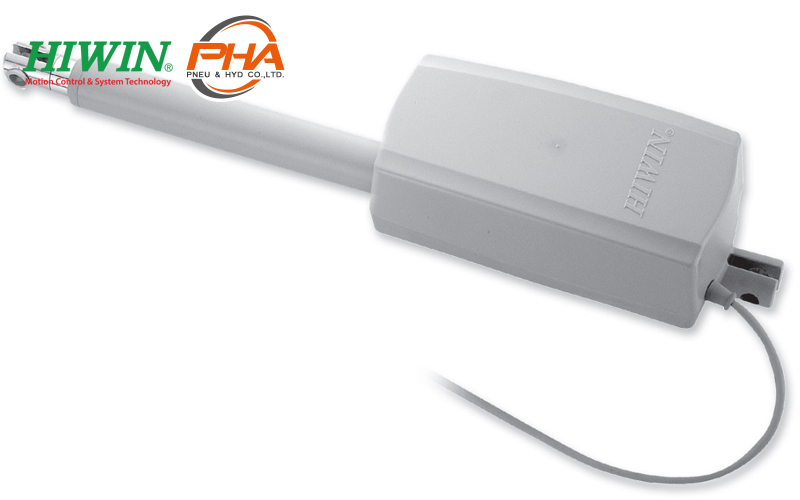

Hiwin Linear Actuator - LAN4 : belongs to ACME screw type, small size, mute, max thrust is 3500N, can be applied to medical industy. Internal overcurrent protection devices and external reed switches are optional. Protextion degree of which can reach up to IP66.
รายละเอียด (Detail) Hiwin Linear Actuator - LAN4
- Screw type : ACME
- Weight (Stroke with 200mm) : 2.33kg
- Protection : IP54
- Compatible countroller : LAK2 / LAK2LR / LAK2D / LAK2BN / LAK2J / LAK6B
- Working temp. : 5 - 40 °C
- Option
- IP66
- Safety Nut RL=S+174, S≤400
- Mechanical spline (push only) RL=S+200, S≤400
- Plug: DIN 4PIN plug / Stereo plug / Mono plug
- UL version

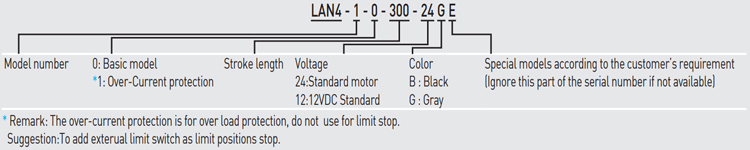

ตัวอย่างการเลือกรุ่น (Code) Hiwin Linear Actuator - LAN4
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator - LAN4
| Model | Thrust max. (N) | Pulling max. (N) | Holding max. (N) | Speed (mm/s) | Standard stroke (mm) : s | Duty cycle % | Current max (A) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Load max | Load 0 | 24VDC | 12VDC | ||||||||||||
| LAN4-1 | 3500 | 3500 | 3500 | 3 | 7 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 10 | 6 | 12 |
| LAN-4-2 | 3000 | 3000 | 3000 | 4.2 | 9 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 10 | 6 | 12 |
| LAN4-3 | 2000 | 2000 | 2000 | 6 | 13 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 10 | 5 | 12 |
| LAN4-4 | 1500 | 1500 | 1500 | 8.5 | 20 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 10 | 5 | 12 |
- *Min input power = Voltage x Current max.

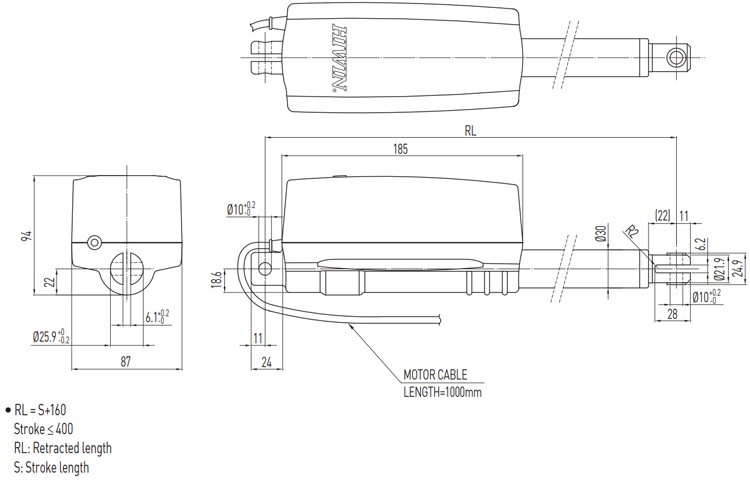

ขนาด (Dimensions) Hiwin Linear Actuator - LAN4
