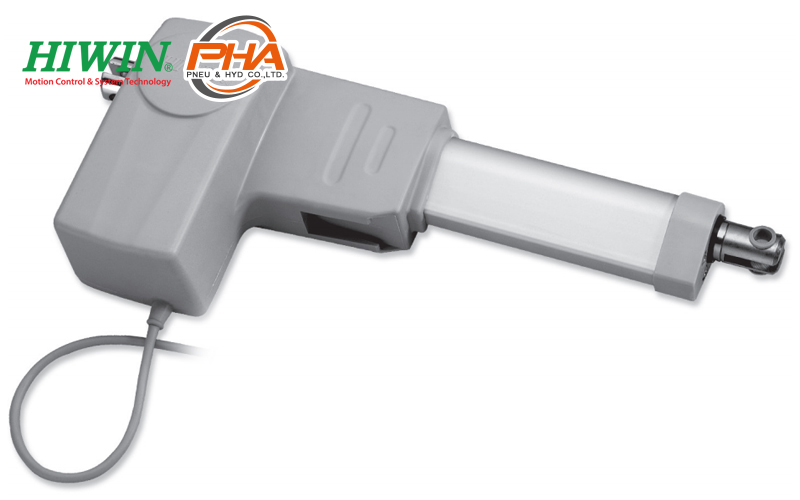

Hiwin Linear Actuator - LAN1 : belongs to ACME screw type, fairly mute, max thrust is 6000N. It has internal safety devices, three cable outlet supply position, the back fixture can turn 90 degrees.
LAN1 actuator has internal limit switch and digital position feedback device.
LAN1 actuator is protected by plastic case and the internal structure is designed for the applicability to be combined with LAK4 control box. The protection up to IP66.
รายละเอียด (Detail) Hiwin Linear Actuator - LAN1
- Screw type : ACME
- Weight (Stroke length 200mm) : 2.6kg
- Protection : IP54
- Compatible countroller : Compatible with all controllers (*Notice the type of connector: Audio/DIN 4pin)
- Working temp. : 5 - 40 °C
- Option
- IP66
- Position feedback
- Safety Nut (RL=S+185, S≤250)
- Mechanical Spline (push only) (RL=S+223, S≤250)
- Back fixture turned 90°
- Motor cable outlet: (A)Standard (B)Front (C)Back.
- UL version
- Plug: DIN 4PIN plug / Stereo plug / Mono plug

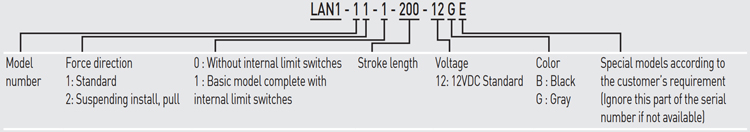

ตัวอย่างการเลือกรุ่น (Code) Hiwin Linear Actuator - LAN1
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator - LAN1
| Model | Thrust max. (N) | Pulling max. (N) | Holding max. (N) | Speed (mm/s) | Standard stroke (mm) : s | Duty cycle % | Current max (A) | Current max (A) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Load max | Load 0 | 12VDC | ||||||||||
| LAN1-1 | 5000 | 5000 | 5000 | 3 | 6 | 100 | 150 | 200 | 250 | 10 | 11 | 0.3 |
| LAN1-2 | 4000 | 4000 | 4000 | 4 | 8 | 100 | 150 | 200 | 250 | 10 | 11 | 0.4 |
| LAN1-3 | 3000 | 3000 | 3000 | 5 | 10 | 100 | 150 | 200 | 250 | 10 | 10 | 0.5 |
- *Min input power = Voltage x Current max.
- **Note: The test results are obtained by using the 12DV power supply and holding by motor short-circuited.

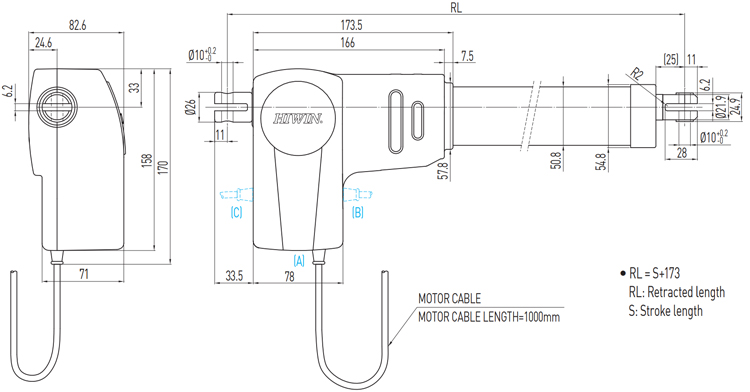

ขนาด (Dimensions) Hiwin Linear Actuator - LAN1
