HIWIN Ball screw - FSC Type
ไฮวินบอลสกรู แบบ FSC
Ball screw - FSC Type
- F = Flange end
- S = Single nut
- C = Super S
รายละเอียด (Details) HIWIN Ball screw - FSC Type
- F = แบบหน้าแปลน
- S = นัท 1 ลูก
- C = รุ่น Super S

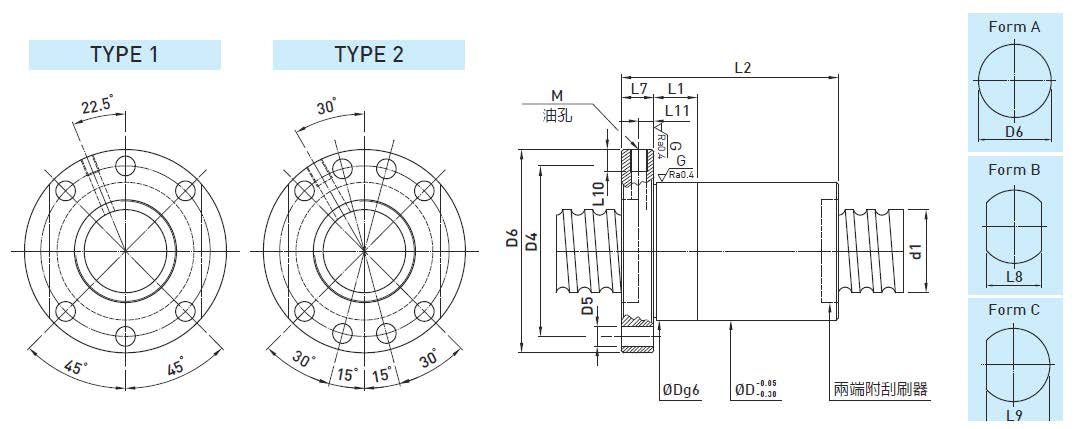

- แบบหน้าแปลน 6 และ 8 รูยึด

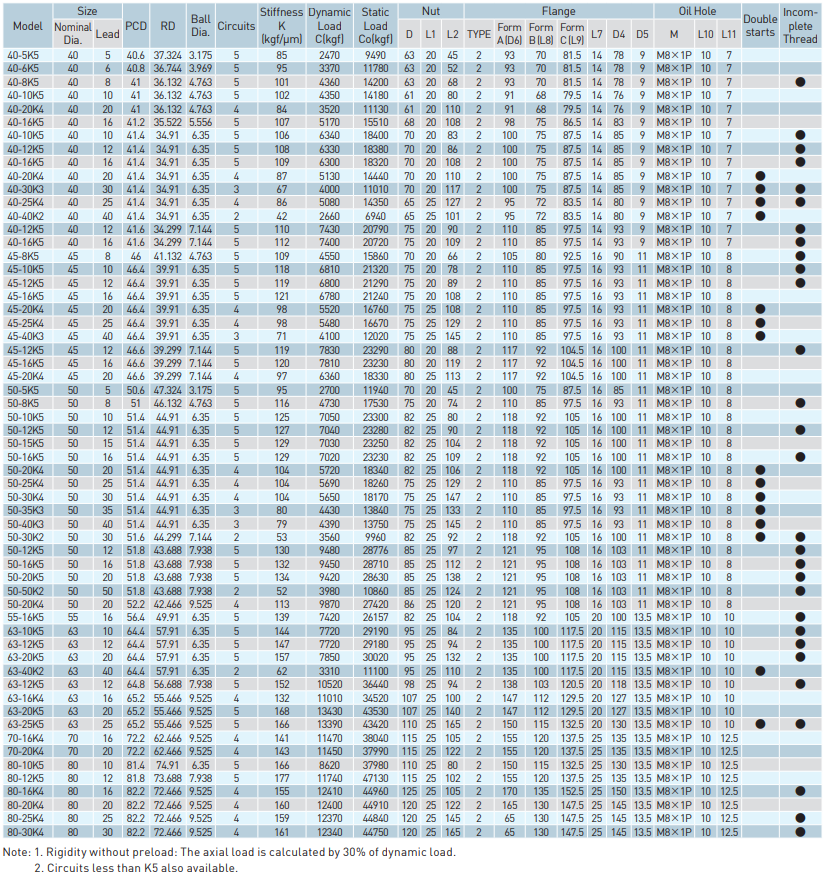

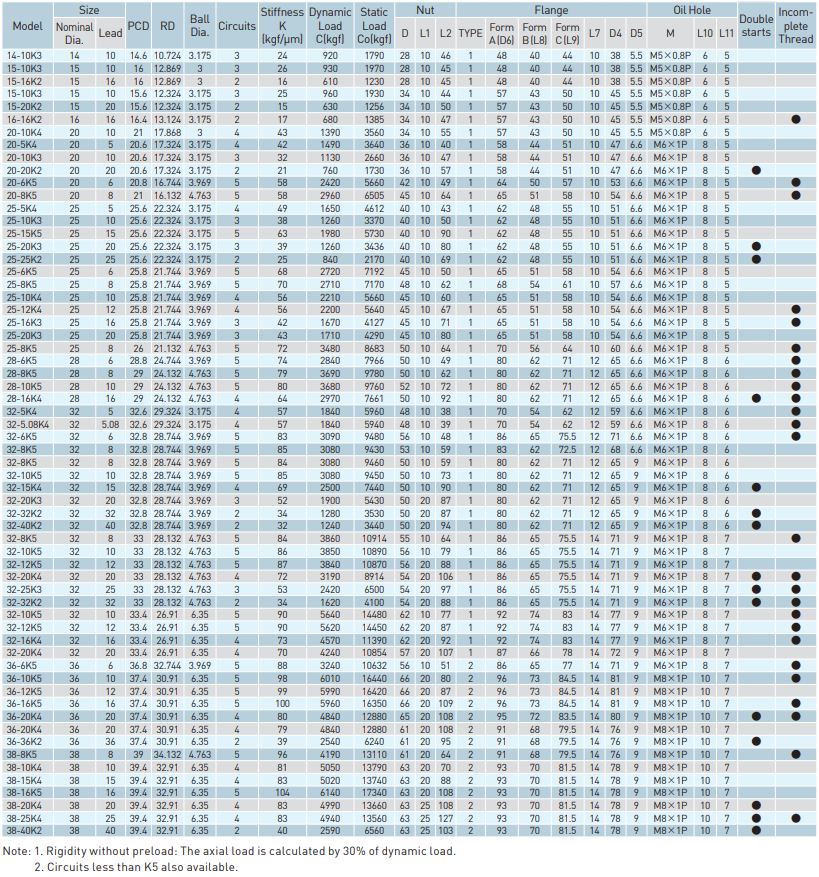

- สกรูขนาด 14 - 80 mm.
- รับน้ำหนักได้ 920 - 12,340 kgf.
รายละเอียดคุณสมบัติ (Features) HIWIN Ball screw - FSC Type
The circuiting systems of the nut of a HIWIN Ballscrew can be divided into: Super S, Super T, external circuit, internal circuit, and end caps. For each circuiting way the features are as follows: external recirculation type, internal recirculation type, endcap recirculation type, and super S The features of these types are specified below. Application : CNC Machinery, Industrial Machinery, Electronic Machinery, Precision Machinery and other High Speed Machinery
- High acceleration and deceleration velocity
- The pathway of the specialized return unit, as well as the ballnut's strengthened design diminish the impact experienced by the balls, So, it can sustain peak performance in more rigorous operating environments, such as high accelecration and deceleration.
- Accuracy grade
- Precision ground ballscrews available in JIS Grade C0-C7; Rolled ballscrews available in JIS Grade C6-C10.
- Low noise (5-7 dB lower than traditional series)
- The patented design of return unit can absorb noises caused by the impact of the steel balls, thus greatly reducing noise intensity.
- Space-saving and weight-lightening design
- The ballnut diamenter is 18-32% smaller than traditional series.
- Dm-N value up to 220,000
- The patented design of the return unit can improve the strength of the return struncture, achieving a Dm-N value of up to 220,000.
