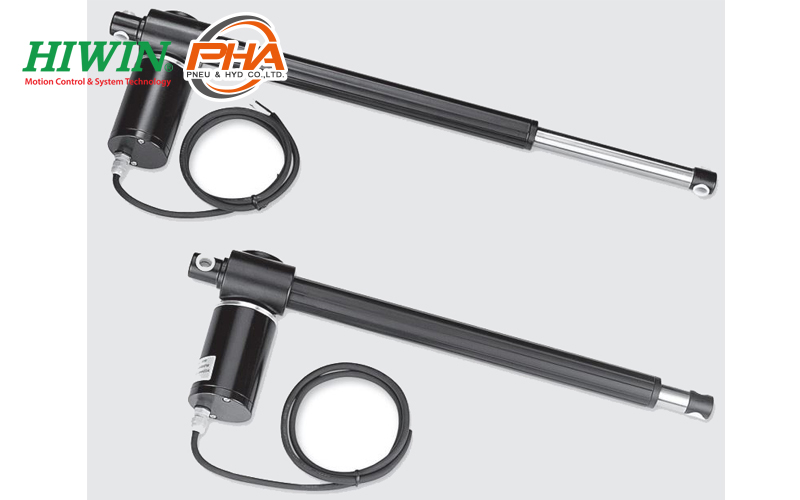

Hiwin Linear Actuator - LAM3
ไฮวิน Linear Actuator - LAM3
Hiwin Linear Actuator - LAM3 : has square frame, high-rigidity structure and low-noise quality, max thrust is 6000N, the control of which is by the internal limit switch. It offers the additional adjustments in home recliners and leisure beds, and reinforces thequality of mute drive.
รายละเอียด (Detail) Hiwin Linear Actuator - LAM3
- Screw type : Ballscrew / ACME
- Weight (Stroke length 200mm) : 2.95kg
- Protection : IP54
- Compatible countroller : Compatible with all controllers (*Notice the type of connector: Audio/DIN 4pin)
- Working temp. : 5 - 40 °C
- Option
- IP66
- Safety Nut (RL=S+183, S≤300 / RL = S+233,350 and 400)
- Back fixture turned 90°
- Pulg: DIN 4PIN plug / Stereo plug / Mono plug
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator - LAM3
| Model | Thrust max. (N) | Pulling max. (N) | Holding max. (N) | Speed (mm/s) | Standard stroke (mm) : s | Duty cycle % | Current max (A) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Load max | Load 0 | 12VDC | 24VDC | ||||||||||||
| LAM3-1 | 6000 | 5000 | 5000 | 4 | 5.5 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 10 | 12 | 6 |
| LAM3-2 | 4000 | 4000 | 4000 | 5.5 | 7.5 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 10 | 10 | 5 |
| LAM3-4 | 2000 | 2000 | 1500 | 11.5 | 14.5 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 10 | 8 | 4 |
*Min input power = Voltage x Current max.

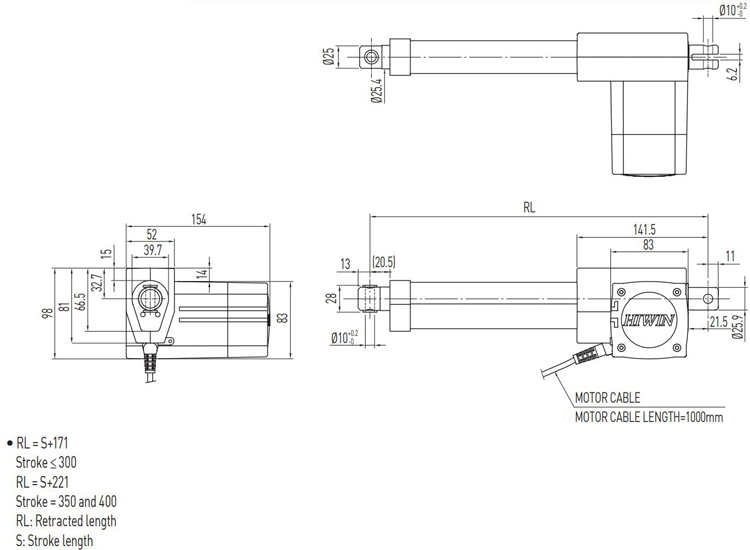

ขนาด (Dimensions) Hiwin Linear Actuator - LAM3
