Hiwin Linear Actuator - LAM1
ไฮวิน Linear Actuator - LAM1
Hiwin Linear Actuator - LAM1 : is classified into ball screw type and ACME thread type, max thrust is 4000N. This actuator has compact struture and high rigidity the wjole body of LAM actuator is covered in metal materials so it is less confined to the environments, it enables to be used in agriculture and industrial fileds. This actuator features optional motor power and switches.
รายละเอียด (Detail) Hiwin Linear Actuator - LAM1
- Screw type : Ballscrew / ACME
- Weight (Stroke length 100mm) : 2.31kg
- Protection : IP54
- Compatible countroller : LAK2 / LAK2LR / LAK2D / LAK2J / LAK6B
- Working temp. : 5 - 40 °C
- Option
- IP65
- Gear box housing turned 90°
- UL version only 24VDC motor specifications (only 24VDC certified by UL)
- Plug: DIN 4 PIN plug / Stereo plug / Mono plug
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator - LAM1
| Model | Screw type | Thrust max. (N) | Pulling max. (N) | Holding max. (N) | Speed (mm/s) | Standard stroke (mm) : s | Duty cycle % | Current max (A) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Load max | Load 0 | 12VDC | 24VDC | |||||||||||||
| LAM1-1 | Ball screw | 4000 | 3000 | 4000 | 8 | 11 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 10 | 12 | 6 |
| LAM1-2 | Ball screw | 2000 | 2000 | 1200 | 16 | 21 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 10 | 12 | 6 |
| LAM1-1A | ACME | 3000 | 3000 | 3000 | 8 | 11 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 10 | 12 | 6 |
*Min input power = Voltage x Current max.

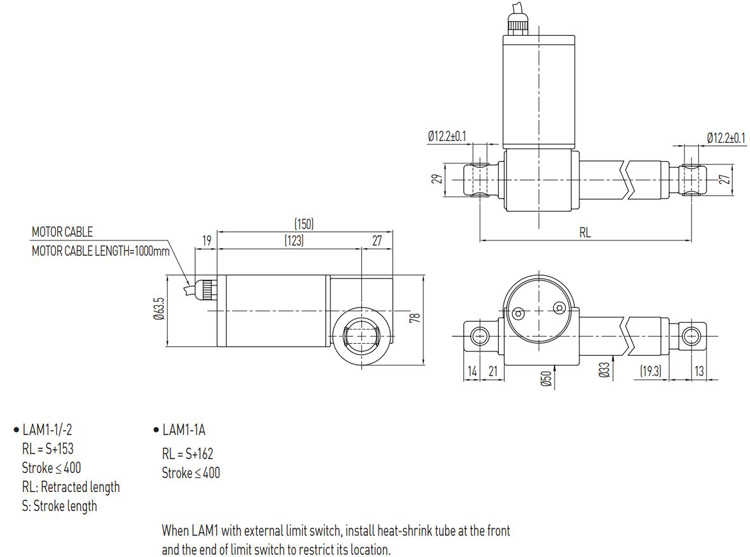

ขนาด (Dimensions) Hiwin Linear Actuator - LAM1
