Hiwin Linear Actuator - LAM2
ไฮวิน Linear Actuator - LAM2

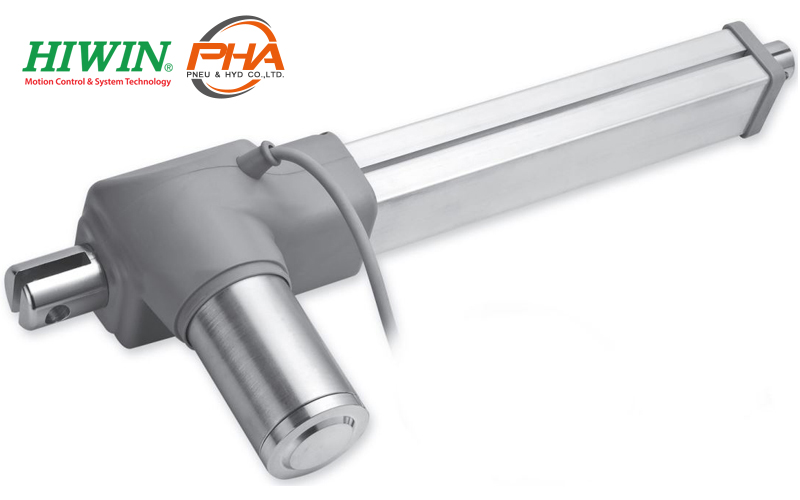

Hiwin Linear Actuator - LAM2 : This actuator is small and low noise, max thrust is 3500N, which enables it to be imbedded in comparatively small room. It is mostly applied to medical (rehabilitation) industry and industrial automation.
รายละเอียด (Detail) Hiwin Linear Actuator - LAM2
- Screw type : Ball screw / ACME
- Weight (Stroke length 200mm) : 1.9kg
- Protection : IP54
- Compatible countroller : Compatible with all controllers (*Notice the type of connector: Audio/DIN 4pin)
- Working temp. : 5 - 40 °C
- Option
- External reed switch (RL=S+207, S≤300)
- Mechanical Spline (Push only)
- MR Sensor (Position feedback)
- Backfixture turned 90°
- IP66
- Rod end with roung connector (RL=S+176, S≤300)
- Pulg: DIN 4PIN plug / Stereo plug / Mono plug
- UL Version
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator - LAM2
| Model | Thrust max. (N) | Pulling max. (N) | Holding max. (N) | Speed (mm/s) | Standard stroke (mm) : s | Duty cycle % | Current max (A) | MR Sensor Resolution (mm/pulse) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Load max | Load 0 | 12VDC | 24VDC | |||||||||||
| LAM2-1 | 3500 | 3500 | 3000 | 2 | 3.5 | 100 | 150 | 200 | 250 | 300 | 10 | 8 | 4 | 0.1 |
| LAM2-2 | 2500 | 2500 | 2000 | 3 | 6 | 100 | 150 | 200 | 250 | 300 | 10 | 8 | 4 | 0.16 |
| LAM2-3 | 1500 | 1500 | 1500 | 6.5 | 12 | 100 | 150 | 200 | 250 | 300 | 10 | 6 | 3 | 0.32 |
*Min input power = Voltage x Current max.

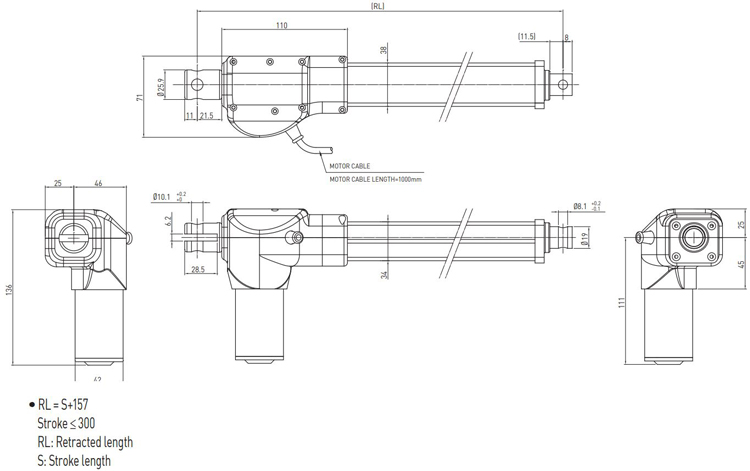

ขนาด (Dimensions) Hiwin Linear Actuator - LAM2
