HIWIN Ball screw - R2 Rotating Nut
ไฮวินบอลสกรู R2 Rotating Nut
HIWIN Ball screw - Rotating Nut R2
- มีขนาดกะทัดรัด หน้าแปลนบางลงขยาดตัวเล็กลง
- ติดตั้งง่าย
- ประหยัดพลังงาน
- เพิ่มแหวนรอบนอกเข้ามาเพื่อความแข็งแรงขึ้น
- ปรับปรุงมาให้กันฝุ่นได้ดีมากขึ้น

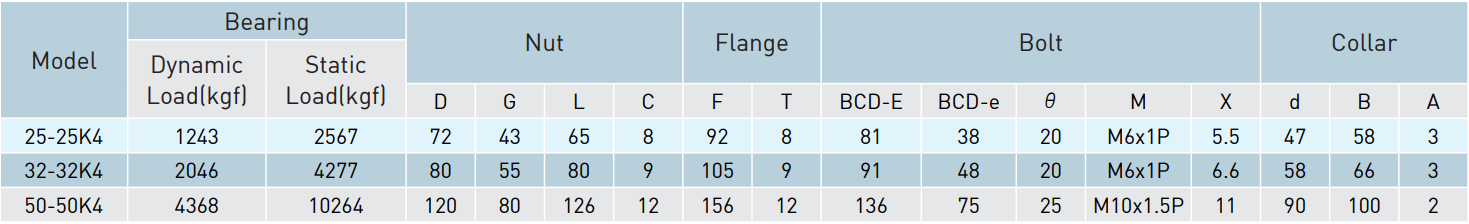

ตัวอย่างการเลือกรุ่น : 4R25-25K4-DFSCR2EW-800-1000-0.05
Hiwin's rotating nut utilizes a special end cap design that allows the steel balls to circulate inside the nut while featuring an integral bearing that allows the ballscrew shaft to be fixed. This unique design reduces noise generated at high speeds and offers higher axial loading and stiffness.
รายละเอียด (Detail) HIWIN Ball screw - R2 Rotating Nut
- Compact
- The integrated nut/bearing and reduced flange thickness design offers a compact assembly much smaller than conventional designs.
- Simple installation
- Nut easilly bolts directly to housing.
- Energy saving
- The fixed screw creates no inertial force reducing the need for additional motor drive force on long strokes.
- Increased outer ring rigidty
- the outer ring bearing has a back-to back-design. The longer support distance resists bending moments and increases rigidity 20 - 30% above traditional face-to-face bearings.
- Improved dust resistance
- A dustproof component has been added between the bearing and the nut body to reduce the gap present in traditional designs and improve contamination resistance.
