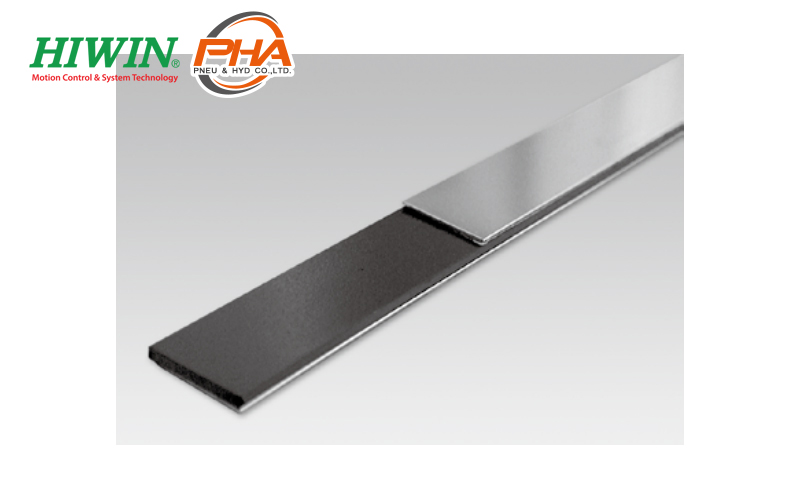

Hiwin Positioning Measurement - Scale
ไฮวิน Positioning Measurement - Scale
- Compatible with various measurement in struments to achieve different accuracy requirements.
- Magnetic scale can main tain performance under severe ambient conditions caused by oil, water or dust to gain required accuracy and signal feedback.

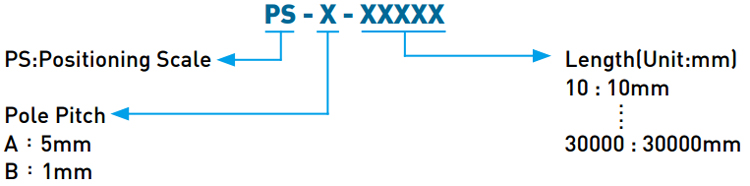

ตัวอย่างการเลือกรุ่น (Code) Positioning Measurement Scale Type
รายละเอียดทางเทคนิค (Specifications) Hiwin Positioning Measurement - Scale Type
| Pole pitch | 1mm | 5mm |
|---|---|---|
| Accuracy@20°C | ±20 µ m/m | ±(80+15xL) µm (L : Length (Unit : m)) |
| Width | 10 mm (0 mm ~ ±0.2 mm) | |
| Thickness | 1.9 mm (±0.1 mm) | |
| Maximum scale length | 24 mm | 30 mm |
| Coefficient of linear thermal expansion | (11±1) x 10-6 m/k | |
| Working temperature | 0 - 50 °C | |
| Storage temperature | -5 ~ 70 °C | |
| Protection class | IP67 | |

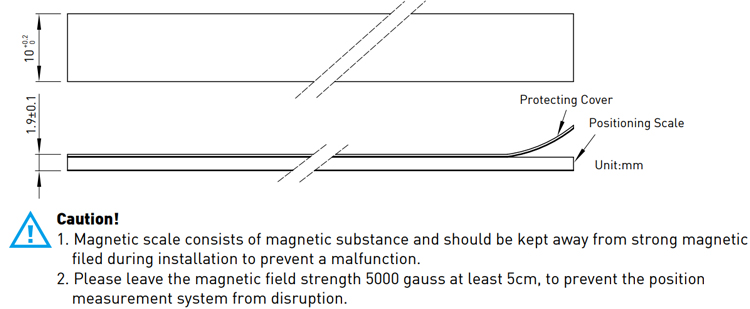

ขนาด (Dimensions) Hiwin Positioning Measurement - Scale
