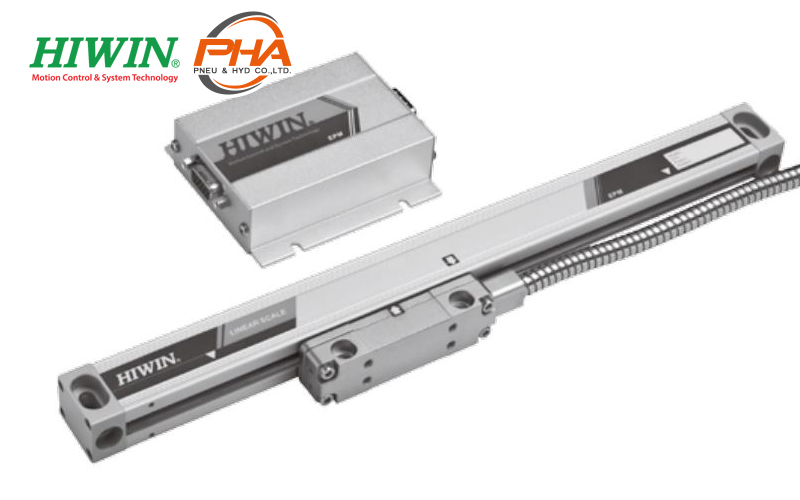

Hiwin Positioning Measurement - Enclosed

ไฮวิน Positioning Measurement - Enclosed

• Manetic sensing mechanism. IP65 protection class
• Accuracy: (5+5ML/1000) µm / Resolution up to 1 µm
• With single design index signal. Simple design and easily mounted
• Superior environmental susceptibility agaist oil, water and dust.

PDF : Hiwin Positioning Measurement - Enclosed

---

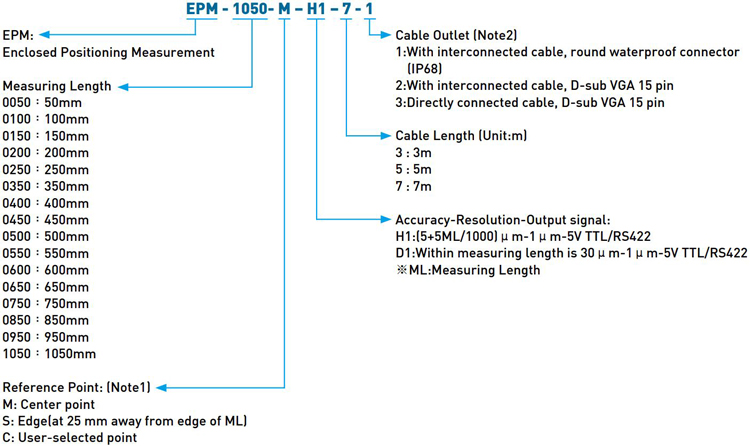

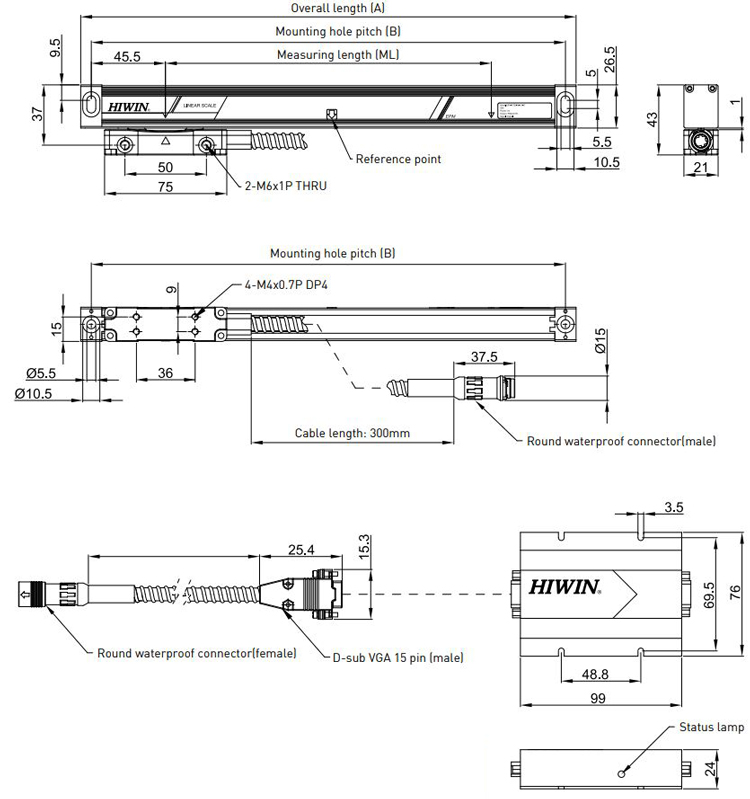

Measuring Length (ML, unit:mm)		50, 100, 150, 200	250, 300, 350, 400, 450, 500, 550, 600, 650, 750, 850, 950, 1050
Maximum trave (Unit: mm)		ML+104	ML+120
Overal length (Unit: mm)		ML+12	ML+28
Accuracy@20°C		(5+5ML/1000) µ m Within Mwasuring Length is 30 µ m
Resolution		1µm
Signal format		Digital
Output signal		5V TTL/RS422
Reference point		Standard: Center point/Edge(at 25 mm away from edge of ML) User-selected point
Maximum travel speed		1.2/sec
Mounting parallelism		±0.1 mm
Input voltage		5VDC±5%/0.23A
Coefficient of linear thermal expansion		(11.8±0.6)x10-6 m/K
Operating temperature		0 - 50 °C
Storage temperature		-20 - 60 °C
Protection		Readhead: IP67 Translator: IP30
Vibration resistance (50 - 2000 Hz)		150 m/S2 (EN60068-2-6)
Impact resistance (11 ms)		1000 m/S2 (EN60068-2-27)

---
