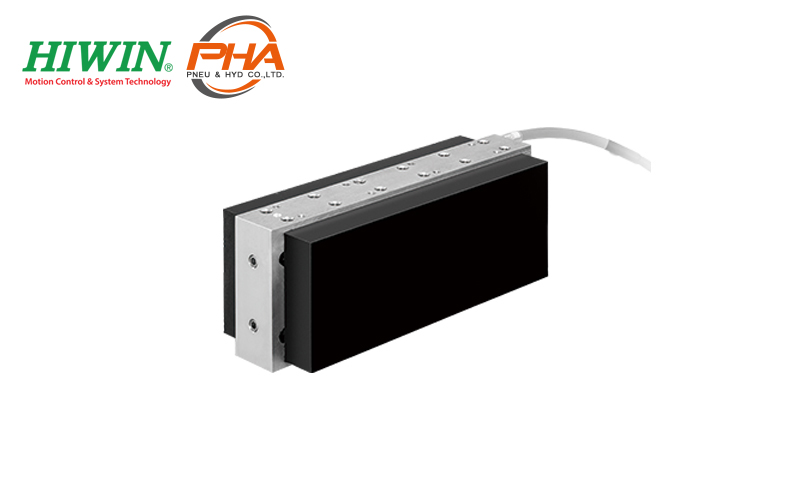

Hiwin Ironcore Motors - LMSC series

ไฮวิน Linear Ironcore Motors - LMSC series

The HIWIN LMSC synchronous linear motors are core-type, with the same caracteristic as the LMS series but have about 2 times the thrust. Because forcers are arranged in a special way between two stators, attraction of forcers and stators will be offset. Load on slide rail is greatly reduced, and relatively high thrust density can be achieved in a very small volume.

PDF : Linear Motor

---

รายละเอียด (Detail) Hiwin Ironcore Motors - LMSC series

• Attraction force compensation
• No attraction force transfer to the guideway
• Optional water cooling
• Magnetic force offset
• Rail are not pre-stressed by magnetic attraction

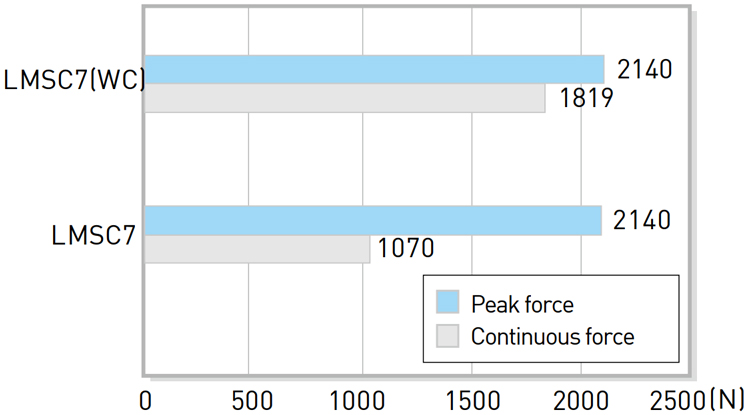

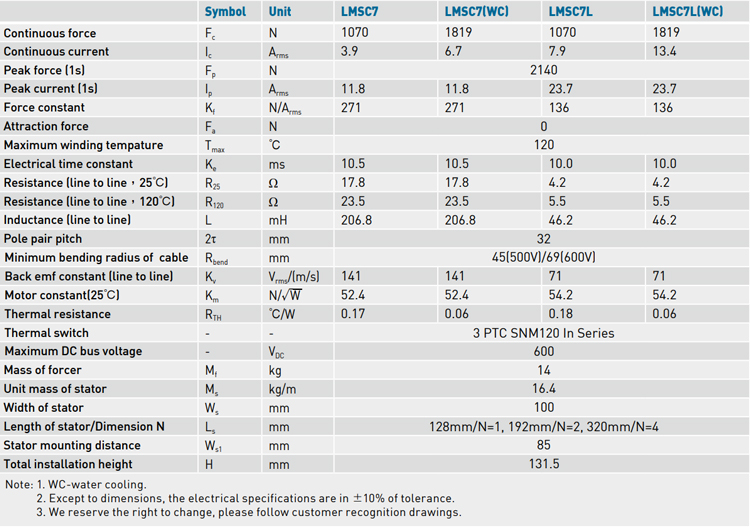

• Continuous force from 1070N to 1819N
• Peak force 2140N
• Assembly total height 131.5mm

---
