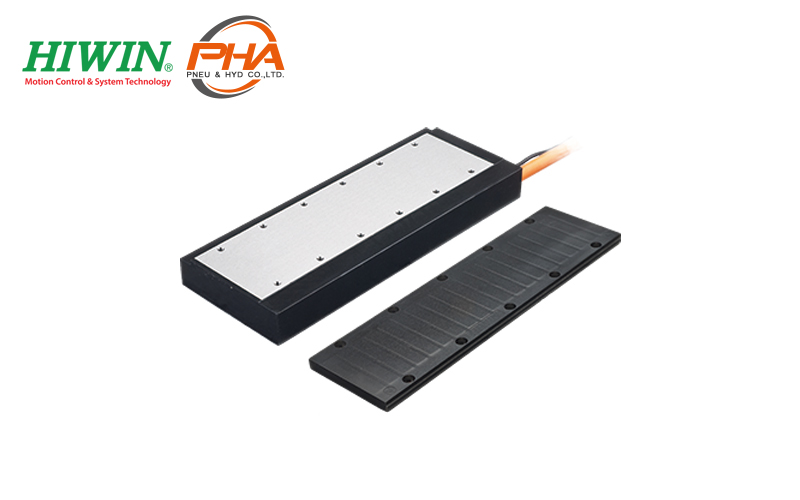

Hiwin Ironcore Motors - LMSA series
ไฮวิน Linear Ironcore Motors - LMSA series
The HIWIN synchronous linear motor LMSA is a larger thrust type of linear drive motor product. It features high thrust density and low cogging force. The three-phase motor iron core is comprised of a primary side (forer) and secondary side (stator) permanents. The stator can be infinitely extended, so the stroke will be unrestricted.
รายละเอียด (Detail) Hiwin Ironcore Motors - LMSA series
- High force density
- High dynamic response
- Lower installation height
- Continuous force from 103N to 1579N
- Peak force from 289N to 4458N
- Assembly total height 34mm, 36mm

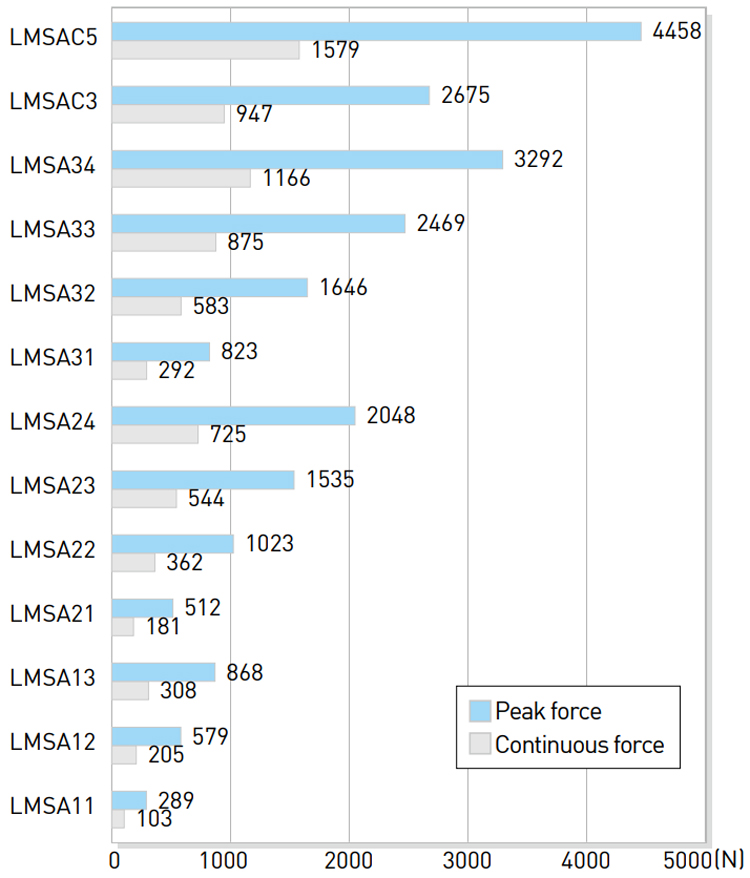

กราฟแรง (Force Chart) Hiwin Ironcore Motors - LMSA series
