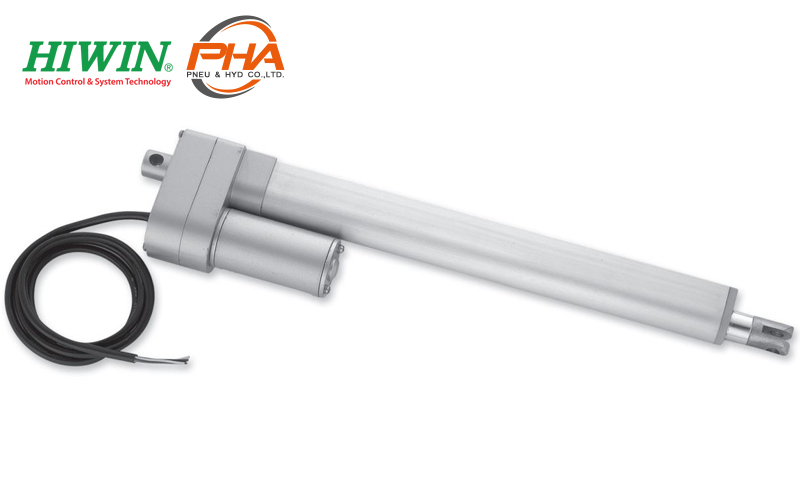

Hiwin Linear Actuator - LAS3
ไฮวิน Linear Actuator - LAS3
Hiwin Linear Actuator - LAS3 : LAS3 actuator belongs to ACME screw type, small size, compact structure and max thrust is 1200N. It’s mostly applied to automation facilities, automatic windows and doors, household furniture. The front and rear fixture can be customized. The internal digital and analog position feedback devices are optional.
รายละเอียด (Detail) Hiwin Linear Actuator - LAS3
- Screw type : ACME
- Weight (Stroke length 200mm) : 1.27kg
- Protection : IP54
- Compatible countroller : Compatible with all controllers (*Notice the type of connector: Audio/DIN 4pin)
- Working temp. : 5 - 40 °C
- Option
- IP66
- Position feedback
- Potentiometer 10k ohm (RL=S+154, S≤250)
- Hall sensor : PNP (standard)
- Gear box housing turned 90°
- Rod end with flat connector (RL=S+133, S≤250 )
- Potentiometer+Rod end with flat connector (RL=S+141, S≤250)
- External reed switch (RL=S+172, S≤250)
- Pulg : DIN 4PIN plug / Stereo plug / Mono plug
- UL version
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator - LAS3
| Model | Thrust max. (N) | Pulling max. (N) | Holding max. (N) | Speed (mm/s) | Standard stroke (mm) : s | Duty cycle % | Current max (A) | Hall Sensor Resolution (mm/pulse) | Potentiometer Resolution (Ohm/mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Load max | Load 0 | 12VDC | 24VDC | ||||||||||||
| LAS3-1 | 1200 | 1200 | 800 | 8 | 12 | 50 | 100 | 150 | 200 | 250 | 10 | 6 | 2.5 | 0.3175 | 21 |
| LAS3-2 | 600 | 600 | 300 | 16 | 25 | 50 | 100 | 150 | 200 | 250 | 10 | 6 | 3 | 0.635 | 10.5 |
*Min input power = Voltage x Current max.

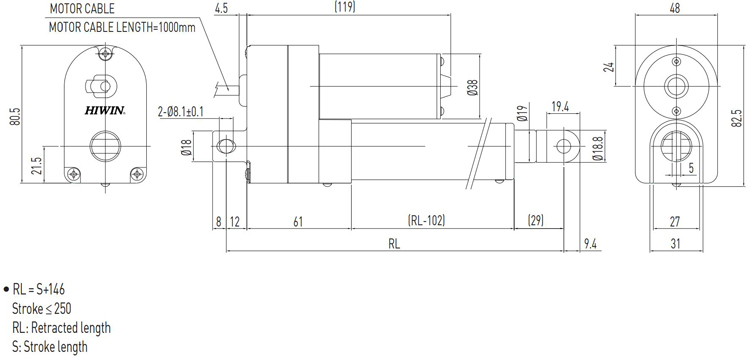

ขนาด (Dimensions) Hiwin Linear Actuator - LAS3
