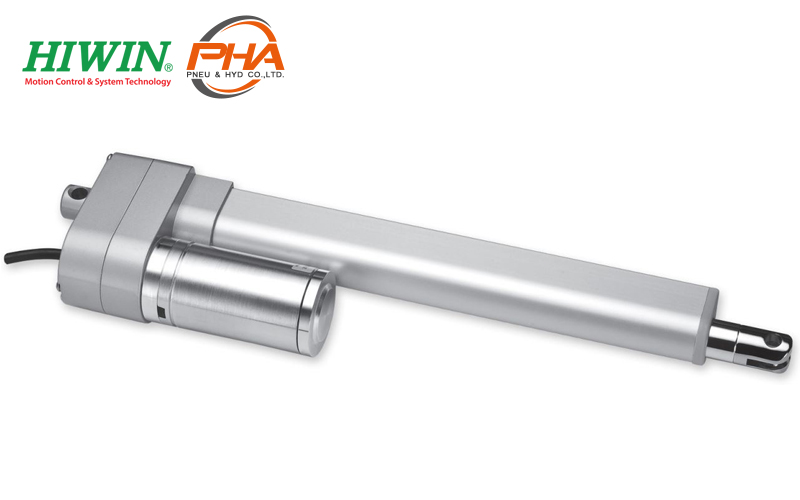

Hiwin Linear Actuator - LAS2
ไฮวิน Linear Actuator - LAS2
Hiwin Linear Actuator - LAS2 : belongs to ACME screw type, max thrust is 12000N, mostly applied to automation facilities, automatic windows and doors, household furniture and electric wheelchairs.
รายละเอียด (Detail) Hiwin Linear Actuator - LAS2
- Screw type : ACME
- Weight (Stroke length 200mm) : 1.3kg
- Protection : IP54
- Compatible countroller : Compatible with all controllers (*Notice the type of connector: Audio/DIN 4pin)
- Working temp. : 5 - 40 °C
- Option
- IP66
- Position feedback
- Potentiometer 10k ohm (RL=S+154, S≤250)
- Hall sensor : PNP (standard)
- Gear box housing turned 90°
- Rod end with flat connector (RL=S+133, S≤250 )
- Potentiometer+Rod end with flat connector (RL=S+141, S≤250)
- External reed switch (RL=S+174, S≤250)
- Pulg : DIN 4PIN plug / Stereo plug / Mono plug
- UL version
คุณสมบัติทางเทคนิค (Specifications) Hiwin Linear Actuator - LAS2
| Model | Thrust max. (N) | Pulling max. (N) | Holding max. (N) | Speed (mm/s) | Standard stroke (mm) : s | Duty cycle % | Current max (A) | Hall Sensor Resolution (mm/pulse) | Potentiometer Resolution (Ohm/mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Load max | Load 0 | 12VDC | 24VDC | ||||||||||||
| LAS2-1 | 1800 | 1200 | 1800 | 4.5 | 7 | 50 | 100 | 150 | 200 | 250 | 10 | 6 | 3 | 0.3175 | 21 |
*Min input power = Voltage x Current max.

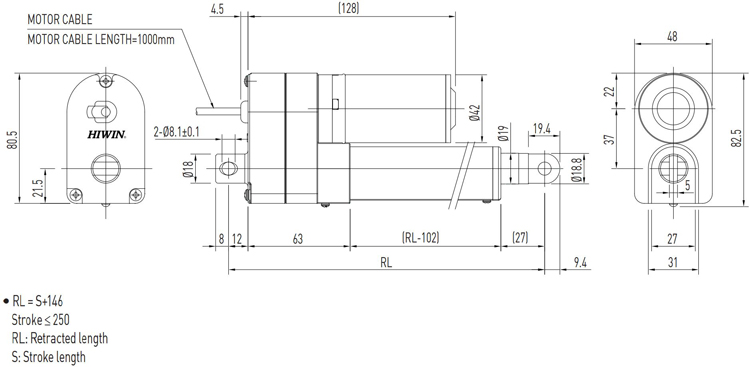

ขนาด (Dimensions) Hiwin Linear Actuator - LAS2
