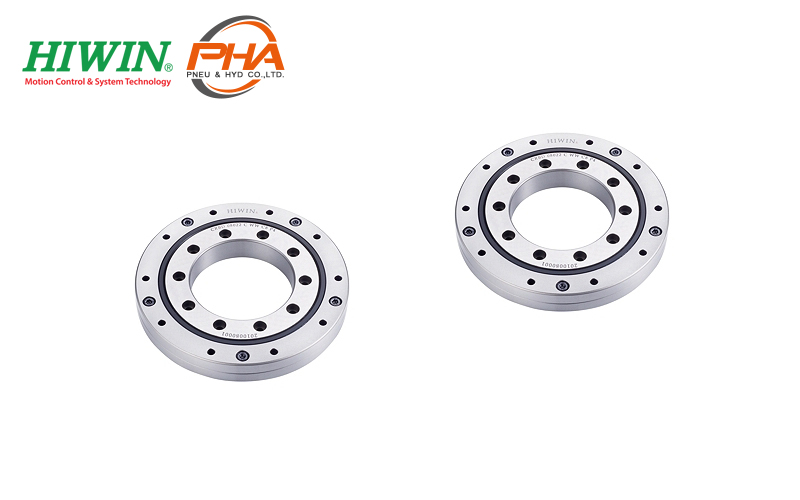

Hiwin Crossed Roller Bearings CRBD
ไฮวินบอสกรูแบริ่ง CRBD
Split outer an inner ring and two outer semi-rings with mounting holes. The mounting holes enable the bearing to be fixed it is suitable for inner ring rotation.
รายละเอียด (Detail) Hiwin Crossed Roller Bearings - CRBD
- Patented design features high loading capacity
- High rigidity
- Accepts loads from all directions at the same time
- Smooth rotation
- Compact, space saving
- Easy installation and adjustment
- Various bearing types and sizes to accommodate your requirements
- Customized designs available
ตัวอย่างการเลือกรุ่น (Code) Hiwin Crossed Roller Bearings - CRBD

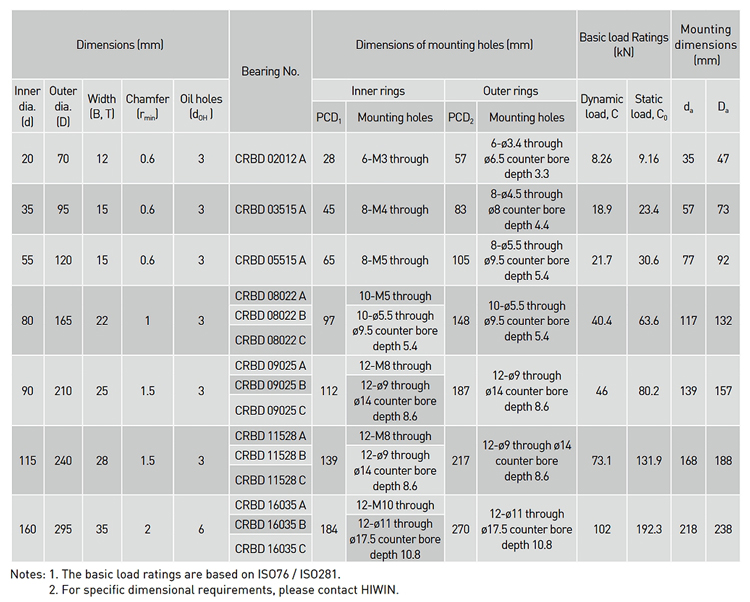

รายละเอียดทางเทคนิค (Specifications) Hiwin Crossed Roller Bearings - CRBD
