Hiwin Torque Motor Rotary Tables - TMS0 series
ไฮวินโต๊ะโรตารีมอเตอร์แรงบิด - TMS0 series
The TMS series is designed with an integrated, high resolution feedback sys tem optimized to achieve high dynamic motion, high torque and high precision. The TMS series is a perfect fit for industries that require high precision.
รายละเอียด (Detail) Hiwin Torque Motor Rotary Tables - TMS0 series
- Inner rotating structure
- Integrated incremental/absolute feedback system
- High dynamic, torque precision
- Maximum torque: 9.3 - 450 Nm
- Meets IP65 enclosure standards as an option
- Integrated brake is available as an option
- Hall sensor is available as an option

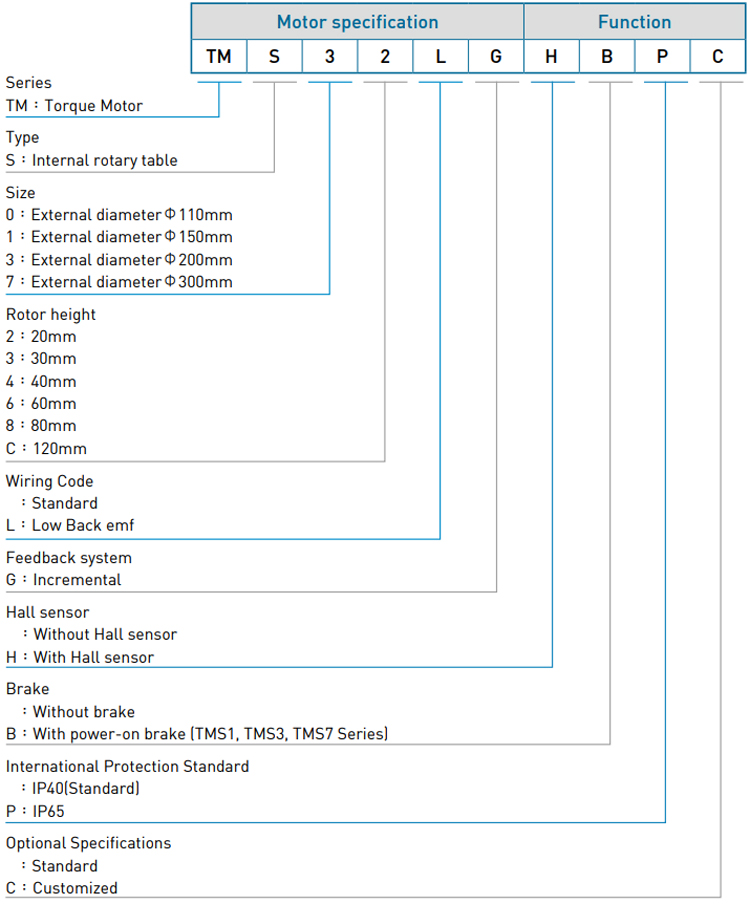

ตัวอย่างการเลือกรุ่น (Code) Hiwin Torque Motor Rotary - TMS0 series

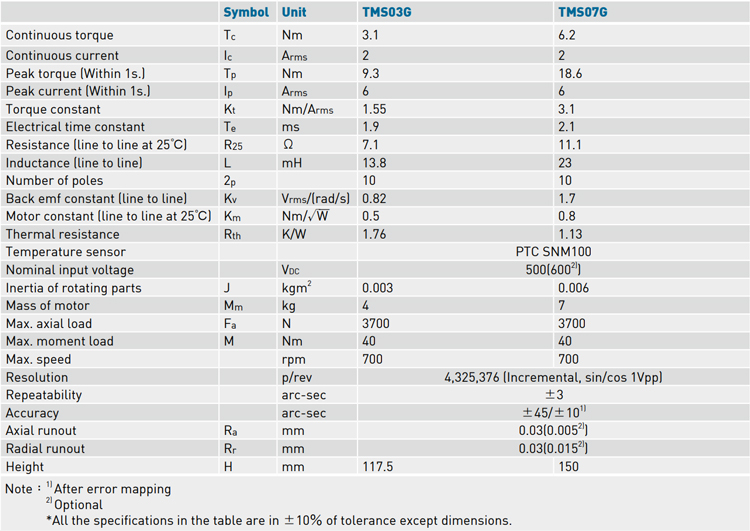

รายละเอียดทางเทคนิค (Specifications) Hiwin Torque Motor Rotary - TMS0 series
