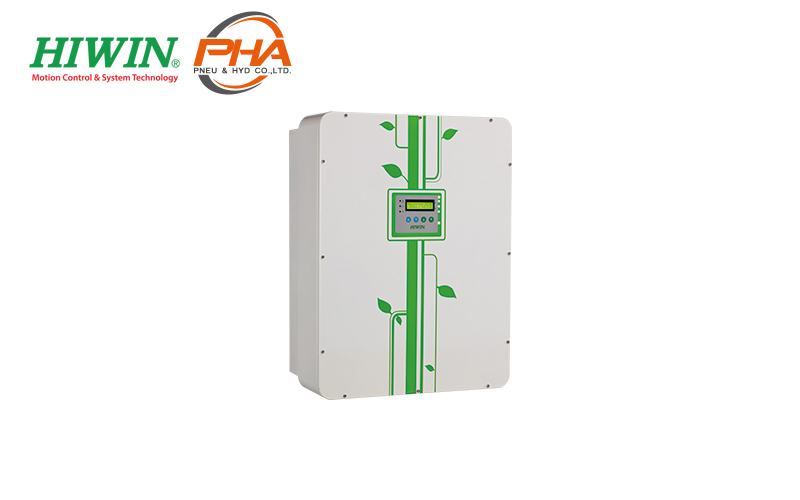

Hiwin Renewable Power Inverter - 2kW
ไฮวิน Renewable Power Inverter - 2kW
HIWIN Mikrosystem Renewable Energy Converter adopts RS485 human-manchine interface, LCD status display and transformerless design. Not only with PFC function and wide voltage range, it also reduces generator noise, matches well with generator, and is easy for installation since no need to install with wind energy transformer.
รายละเอียด (Details) Hiwin Renewable Power Inverter - 2kW
- Transformer-less design
- Wide input voltage range and better compatible with generators
- High speed MPPT control, rapidly capture remewable energy
- With PFC function, reduce noice from the generator
- No adaptor box with the wind, and easier to install
- Maximum conversion efficiency of 95.2%
- THD<4%
- Automatically detectsgrid frequency 50/60 Hz
- LCD status display
- IP65 protection against dust and water
- HMI RS485 communication
ขนาด (Dimensions) Hiwin Renewable Power Inverter - 2kW
| MODEL | HWI-200A-1 | |
|---|---|---|
| Input | Working voltage range | 45 - 300 Vac / 65 - 450 Vdc |
| Maximum input voltage | 318 Vac / 450 Vdc | |
| Nominal input current | 7 Aac / 8 Adc | |
| Maximum input current | 10A | |
| Number of MPPT | 1 | |
| Standby power | < 10W | |
| Output | Nominal output power | 2000 W |
| Maximum output power | 2100 W | |
| Nominal output voltage | 230 Vac | |
| Output voltage range | 186 Vac - 264 Vac | |
| Nominal output current | 8.7A | |
| Maximum output current | 10 A | |
| Frequency | 50/60 Hz | |
| Power factor | > 0.95 | |
| Harmonic distortion | < 4% (nominal power) | |
| Output connector | Single-phase (L, N, G) | |
| Maximum Efficiency | 95.2% | |
| Protection | Temperature | 40°C |
| Grid system | Voltage abnormal and frequency abnomal | |
| Islanding | Passive detection Active detection |
|
| Environment | Operating temperature range | -20°C to 55°C (-4°F to 131°F) (2kW rating apply at 40°C ambient temperature. At higher temperature (up to 55°C) the derating.) |
| Altitude | 0 - 2000m ; 0 - 6562ft | |
| Mechanical information | Dimension (H x W x D) | 459 x 339 x 179 mm |
| Weight | 15.5 kg | |
| Protection grade | IP65 | |
| Cooling mode | Passive cooling | |
| Other | Display | LCD, LED |
| Communication | RS485 | |
| Authenticate | Certificate | VDE AR-N-4105 EN-50178 EN-61000-6-2 EN-61000-6-3 |

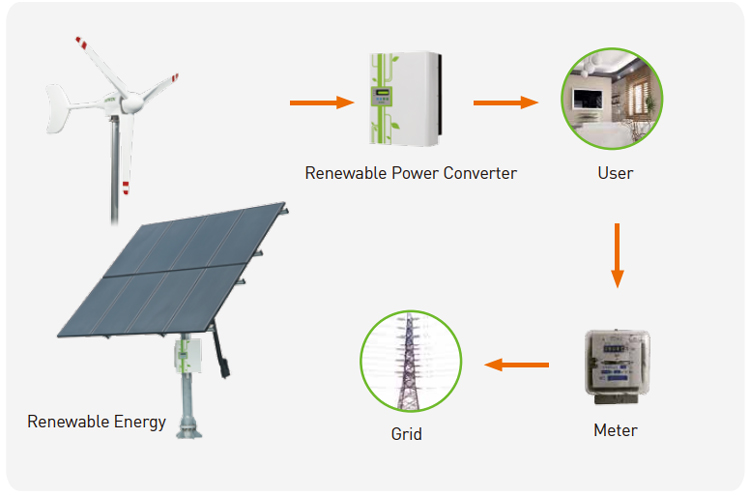

การเชื่อมต่อ (Configuretions) Hiwin Renewable Power Inverter - 2kW
