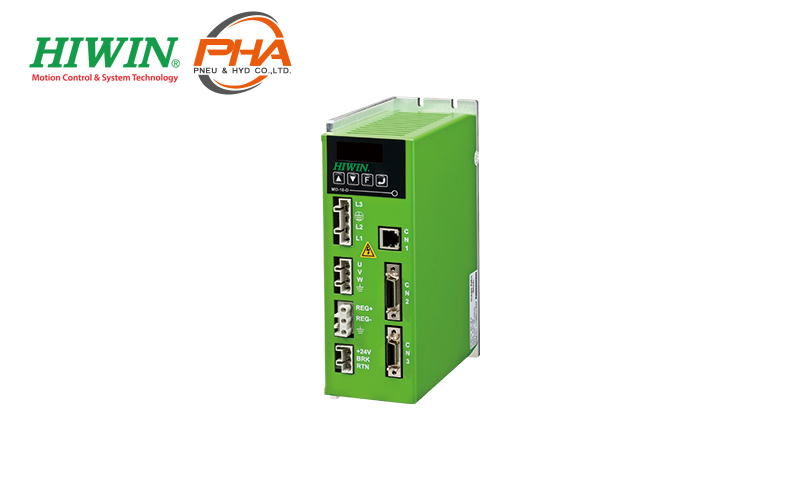

Hiwin Controller and Drive - Drive D1

ไฮวิน Controller and Drive - Drive D1

Hiwin Controller and Drive - Drive D1 : Achieved ultra-high positioning performance and excellent following feature to shorten positioning time effectively With the motion control technology of the semiconductor industry. In order to be compliant with the world trend, obtain the major international certifications: Provide motor short circuit detection, limit switch, emergency brake signal output, regenerative resistance and other protection measures. Provide a trial run interface with speed/acceleration protection settings, add-in settings, I/O tests, and complete analyses with filters and spectrums to propose a complete drive control solution.

---

รายละเอียด (Detail) Hiwin Controller and Drive - Drive D1

• 100-240VAC power input
• Supports STP / DIR, CW / CCW, A / B pulse formats (differential / single ended interace)
• Supports ±10V voltage or digital commands for velocity or force / torque modes
• Vibration Suppression

---
